China factory good quality pro solid guide bar gasoline chain saw 36 bar

Supplier: Shanghai Newtop Machinery Co., Ltd.
Region: Shanghai, China
Contact: Mr stephen Huang
Price: $4.00 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Gauge:	0.050'' 0.058'' 0.063'';	Place of Origin:	Zhejiang China;
Fit:	ST HUS Partener chain saws;	Power:	5000W;
Certification:	ce;	Engine Displacement:	92cc;
Length:	6''~42'';	Power Type:	Petrol / Gas;
Guide bar type:	solid tip;	Packaging Detail:	1 pc/ 1 box 10pcs/carton;
Pitch:	0.325'' 3/8'' 0.404'';	Payment Terms:	L/C,T/T,paypal;
Model Number:	NTG001;	Name:	chainsaw hard nose bar;
Port:	Shanghai/Ningbo;	Material:	carbon steel;
Supply Ability:	80000.0 Piece/Pieces per Month;	Feature:	2-Stroke,Forced Air Cooling,Single Cylinder;
Color:	any color available;	Brand Name:	Newtop/Craftop;

chainsaw hard nose bar 12''~42''

1.Length: 12'' to 42'' (32cm to 107cm)

2.Gauge :0.050'' 0.058'' 0.063''

3.Pitch: 0.325'' 3/8'' 0.404''

4.Fit: STIHL,HUSQVARNA,KOMATSU, PARTNER and other brands machines.

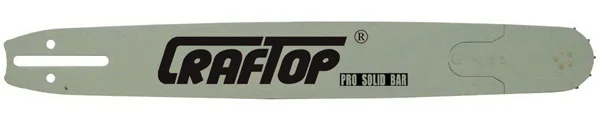

A:PRO solid bars

It is a solid-machined bar made of high-grade steel with the groove milled out and a replaceable sprocket nose assembly riveted in place. The sprocket is incorporated in the replaceable sprocket nose assembly of the bar and carries the saw chain from the top to the bottom of the bar. This not only reduces wear, but also enables the bar nose to be made considerably narrower. The pro solid bars designed with a narrow nose help reduce kickback tendencies. And the sprocket nose assembly can be replaced several times before the whole bar is due for replacement, increasing the service life of the bar.

Applications: For high-performance professional woodcutting with high-powered, heavy-duty saws. Available from 12" to 42".

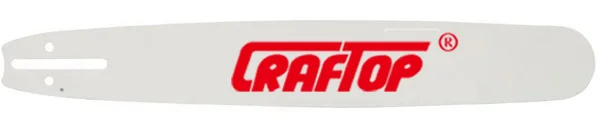

B:Hard nose bar

The hard nose bar is a rugged bar made from a solid billet of the highest quality steel and is cut by laser for consistent quality and durability. Instead of a replaceable sprocket tip, its nose is reinforced with a very hard steel alloy and is laser-welded in place for consistent quality, durability and high wear resistance.

Applications: A special-purpose bar for high-performance professional woodcutting with heavy-duty saws. An excellent bar for dirty or abrasive cutting conditions and frequent plunge-cutting applications.
