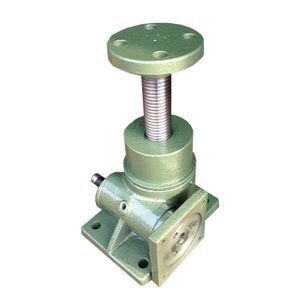

1-200Ton manual/motorized lifting jack - SWL25 mechanical worm gear Screw Jacks/acme screw lifts
-
Supplier: Shandong Guomaoguotai Reducer Co., Ltd. -
Region: Shandong, China -
Contact: Ms Wenzhong Sun -
Price: $1000.00 /set -
Min. Order: 1 set
| Output Speed: | 8~360rpm; | Input Form: | Directly Connected; |
| Packing: | Plywood Case; | Output Torque: | 110000NM; |
| Material: | Cast Iron/steel; | worm gear material: | bronze; |
| Single gross weight: | 68.0 KG; | Gearing Arrangement: | Worm; |
| Lubricant: | Gear Oil; | Color: | as requests; |
| Package Preview: | ; | Applicable Industries: | Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Construction works ,Energy & Mining; |
| Selling Units: | Single item; | Product name: | SWL worm Screw Jacks; |
| Input Speed: | 300~1,800rpm; | Single package size: | 100X50X30 cm; |
| Application: | Machine Tool; | Packaging Detail: | standard export package - plywood package (no solid wood ); |
| Warranty: | 12months; | Certificate: | ISO9001; |
| Place of Origin: | Shandong China; | Brand Name: | GUOMAO; |
Screw Jack feature:
Economical: Compact design ,easy operation, convenient maintenance.
Low speed, low frequency:Be suitable for heavy load, low speed, low service frequency.
Self-lock: Trapezoid screw has self-lock function, it can hold up load without braking device when screw stops traveling.
Braking device equipped for self-lock will be of malfunction accidentally when large jolt & impact load
|
80-20Ton SWL worm Screw Jacks
|
|||||
|
Max.Load |
Screw Overall Diameter |
Screw Bottom Diameter |
Screw Pitch |
Reduction Ratio |
|
|
(KN) |
(mm) |
(mm) |
(mm) |
H Speed |
L Speed |
|
1.96 |
12 |
8.8 |
3 |
5 |
20 |
|
4.9 |
16 |
10.8 |
4 |
5 |
20 |
|
9.8 |
20 |
14.8 |
4 |
5 |
20 |
|
24.5 |
26 |
19.7 |
5 |
6 |
24 |
|
49 |
40 |
30.5 |
8 |
6 |
24 |
|
98 |
50 |
38.4 |
10 |
8 |
24 |
|
147 |
55 |
43.4 |
10 |
8 |
24 |
|
196 |
65 |
51.3 |
12 |
8 |
24 |
|
294 |
85 |
67 |
16 |
102/3 |
32 |
|
490 |
120 |
102 |
16 |
102/3 |
32 |
|
735 |
130 |
112 |
16 |
102/3 |
32 |
|
980 |
150 |
127 |
20 |
12 |
36 |
More Reducer For You
Guomao Reducer Group Co.Ltd was found in 1993. Past 25 years developing ,now we have over 2200 workers and 630,000 square meters production area.
Our company mainly produced Industrial Motor and reducer.
Guomao Reducer Group annual output is over a million machines. We have our own researching and developing department, every year we recommend new items to our old customers. OEM and ODM are always welcome.
1. Payment Term: TT, L/C
2. Delivery time: about 30 days from receive payment.
3. We accept customized products as per your special requirement.
4.Guidelines for the Selection:Usually we can select one machine which is suitable for you with some informations from you,such as ratio/motor speed/mounting dimension/ out torque etc.
5.If the minimum order amount is in excess of $10000, there are preferential.
-
