2018 new type 100kva inverter natural gas tubine generator on sale

Product details
Rated Voltage:208;Package Preview:https://sc01.alicdn.com/kf/HLB1gBgBXZrrK1Rjy1zeq6xalFXaX.jpg_640x640.jpg,https://sc01.alicdn.com/kf/HLB1RFcAX0zvK1RkSnfoq6zMwVXa5.jpg_640x640.jpg;
Mode of speed regulation:Electronic Governor;Fuel type:Natural gas/Methane/Straw gas/Rock gas;
Speed:1800;Rated Current:360;
Package Type:100kva natural gas generator,gas turbine generator,gas inverter generator,The interior is protected by pearl cotton and shrinkage film, and the exterior is loaded in a non-fumigation wooden box.;Selling Units:Single item;
Working condition:Natural gas≤0.33/kw.h Methane≤0.55/kw.h;Cylinder NO.-Bore*Stroke:6-135*150mm;
Single package size:240X91X165 cm;Mixture-formation form:Before the vortex premixed;
Single gross weight:1,800 KG;IP code:IP21;
Frequency:60 hz;Place of Origin:Shandong China (Mainland);
Start method:Electrical start;Rated Power:200 kw;
Output Type:AC Three Phase;Exciting mode:Brushless;
Delivery Detail:0 days after payment;Insulation class:H;
Model Number:HK200GF-NG;Brand Name:HK;
Connection mode:Three phase four wire;
Product Description

Naturl Gas Generator

Gas-fired generator set is a new type of generator set developed to meet the requirements of world environmental protection and new market environment. Natural gas generating units are mainly divided into two types, one is combined cycle gas turbine, the other is gas internal combustion engine. Gas turbine power is relatively large, mainly in large and medium-sized power plants, gas internal combustion engine power is relatively small, mainly in small distributed power plants. It is a new type of green power to replace oil and coal-fired units.

SPECIFICATIONS FOR HK200kw naturl gas generator set
HK200GF-NG



generator parameter
Enset Model
HK200GF-NG
Rated power(KW)
200
Voltage(V)
208
Frequency(HZ)
60
Rated current(A)
360





diesel parameter

Gas Engine Model
618ZLD
Cylinder NO.-Bore*Stroke
6-135*150mm
Rated power/speed(KW/min)
200/1800r
Working condition of calibration gas consumption rate0(m³/KW.h)
Natural gas≤0.33m³/kw.h Methane≤0.55m³/kw.h
Mode of speed regulation
Electronic Governor
Mixture-formation form
Before the vortex premixed
Fuel type
Natural gas/Methane/Straw gas/Rock gas
Start method
Electrical start







alternator parameter

Rated power(KW)
200
Rated Voltage(V)
208
Rated current(A)
360
Rated frequency(HZ)
60
Rated capacity(KVA)
250
Exciting mode
Brushless
Insulation class
H
IP code
IP21
Connection mode
Three phase four wire

Main Features

1) Good quality of power generation-Because the generator unit only rotates when it works, the response speed of electric regulation is fast, the work is especially stable, the output voltage and frequency of the generator are high precision, and the fluctuation is small. When the load is reduced by 50% and 75%, the unit runs very stably, which is better than the electrical performance index of the diesel generator unit.


2) Good startup performance and high startup success rate-The time from successful cold start to full load is only 30 seconds, while the international regulations stipulate that the diesel generator should be loaded three minutes after successful start. Gas turbine generator set can guarantee the success rate of start-up under any environmental temperature and climate.


3) Low noise and low vibration-Because the gas turbine is in the high speed rotating state, its vibration is very small, and the low frequency noise is better than the diesel generator set.


4) The combustible gases used are clean and inexpensive energy sources-For example: gas, platycodon, biogas and so on. Generators fueled by them are not only reliable in operation, low in cost, but also can turn waste into treasure, without pollution.


5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Certifications
Detailed Images

Diesel Engine

Name: Marine Diesel Engine

Brand: HKR4110ZG

Original: HK

Straight row, water cooled, four stroke, naturally aspirated ,2 cylinder diesel engine , 4 cylinder diesel engine and 6 cylinder diesel engine . for Construction Machinery, for Agricultural Machinery,and for Underground Equipment

diesel water pump

Name: agricultural irrigation diesel water pump
Brand: HK6110IZLD
Original: HK
It is used for backup main pump of fire fighting, called XBC diesel engine fire fighting pump, for industrial emergency use, such as boiler water supply, high temperature water supply, etc., for agricultural irrigation in non-power area, called ZCSB self-priming and non-blocking diesel engine self-priming pump.

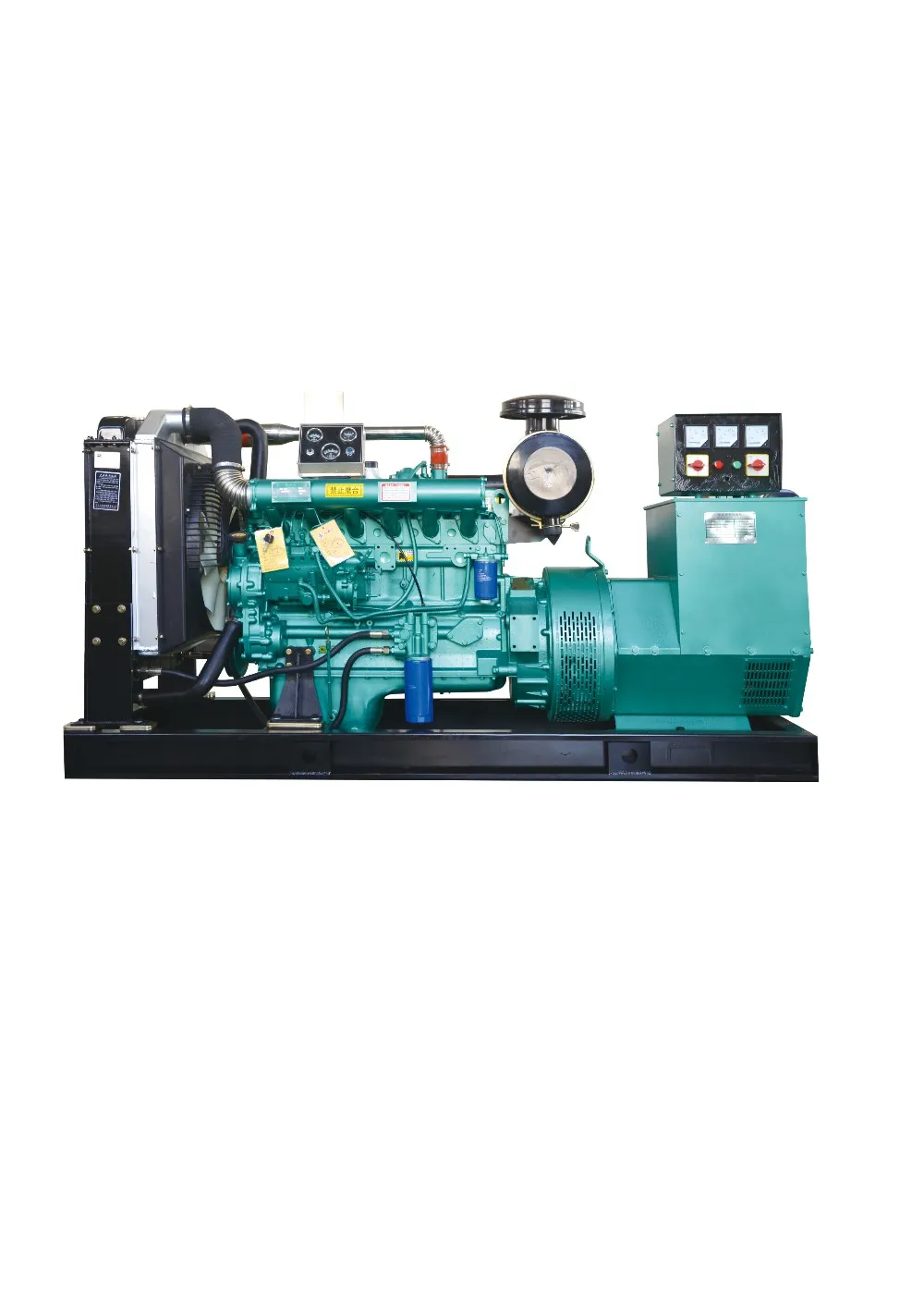

mobile silent diesel generator

Name: super silent diesel generator
Brand: HK200GF-6126ZLD
Original: HK
The silent generator set is a device added to the open generator set to make the generator sound-proof and rain-proof. The open generator set is sealed by the outer shell, and the sound insulation material is attached to the inner wall of the outer shell.

mobile diesel engine water pump

Name: diesel engine trailer mounted water pump
Brand: HK490D
Original: HK
agricultural irrigation diesel water pump,diesel engine water pump,4 inch diesel water pump,6 inch diesel water pump,mini diesel water pump,diesel engine water pump set.

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery
Packaging
Size
2800*950*1750
Weight
1.8 T



Packaging Details
The interior is protected by pearl cotton and shrinkage film, and the exterior is loaded in a non-fumigation wooden box.
Packaging
Size
2800*950*1750
Weight
1.8 T



Packaging Details
The interior is protected by pearl cotton and shrinkage film, and the exterior is loaded in a non-fumigation wooden box.
