Professional 8 channels UHF Wireless Microphone

Product details
Supply Ability:30000.0 Piece/Pieces per Month 30000 pcs per month;use:Karaoke&Home theater;
Carrier Wave Frequency Range:UHF-600-870MHz;Certification:ce;
Carrier Wave Stability:10PPM;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal;
Sample:Available;Style:Handheld Microphone;
OEM:accept;Polar Pattern:Omni-directional;
Use:Conference Microphone;Port:Ningbo;
Function:PORTABLE;Brand Name:Accuracy Pro Audio;
communication:wireless;material:metal reciever;
Communication:WireLess;battery life:10 hours;
Place of Origin:Zhejiang China;Sensitivity:-105dB;
working distance:200 feet;Model Number:UHF-808;
Material:Metal;Packaging Detail:Conventional Packing(1 Unit/Poly Bag,All Parts/Master Carton Box. With Foam Padding For Protection). Packing Optional,Gift Box,Aluminum Box,Plastic Box;

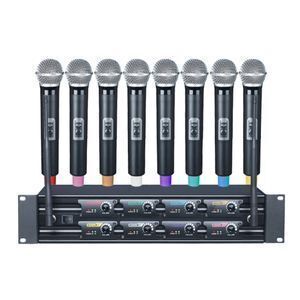

    Professional 8 channels UHF wireless microphone UHF-808

Product Description



8 channels microphone Features:

1 8 Replaceable Receiver/Transmitter Modules
2 8 microphone output with individual Volume controls
3 UHF band quartz lock for drift free operation
4 Receiver power/RF/AF&Microphone low battery indicators
5 Front Antenna provides clear RF Reception
6 8 individual XLR Mic outputs and one 1/4" Mixed output



8 channels microphone Specifications:

Receiver:

Carrier Wave Frequency Range: UHF-600-870MHz

Oscillation Mode: Quartz Controlled Fixed Frequency

Carrier Wave Stability:10PPM

Sensitivity:-105dB (at) sinad=12 dB

S/N Ratio:>105dB

T.H.D.:<0.5% (at) 1KHz

Image rejection:85 dB typical

Spurious rejection:75 dB typical

Frequency Responses:40Hz~18KHz

Working distance:200 feet

Squelch Control:dual-squelch circuit

AF Output Impedance:2.2KΩ

Max.Output Level:Balance:0-400mv,Unbalance:0-200mv

Display:LED

Power Supply:External DC Power Supply,0.8A,12~18V DC

Output Connector:8 XLR Balanced Socket Unbalance TRs 6.35mm Socket



Transmitter(Handheld):

1,Transmitter power:30mW

2,Spurious emission:<40dB(with carrier)

3,Display:LED

4,Battery voltage:1.5V*2

5,Battery life:10 hours



Packing of Mic

Main Port: Ningbo,Zhejiang

Package: Conventional Packing(1 Unit/Poly Bag,All Parts/Master Carton Box. With Foam Padding For Protection). Packing Optional,Gift Box,Aluminum Box,Plastic Box.
