AGY off road sprt utv 4x4 1100cc

Product details
Clearance:285mm;Certificate:eec;
Payment Terms:D/A,D/P,T/T,Western Union;Port:shanghai;
Fuel:Gas / Diesel;Color:Optional;
Cluch:Auto;Engine type:4 Stroke;
Weelbase:2400mm;Brand Name:AGY;
Packaging Detail:steel structure with carton paper;Model Name:AGY-U1100;
Max speed:120km/h;Dimensions:3085*1685*1490mm;
Place of Origin:Hubei China;Supply Ability:20 Set/Sets per Month;
Transmission Type:Automatic;Transmission:shaft-drive 4x4;
Type:1100cc;Brake:Hydraulic Disc Brake;

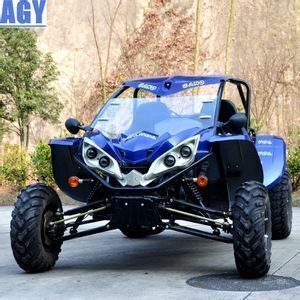

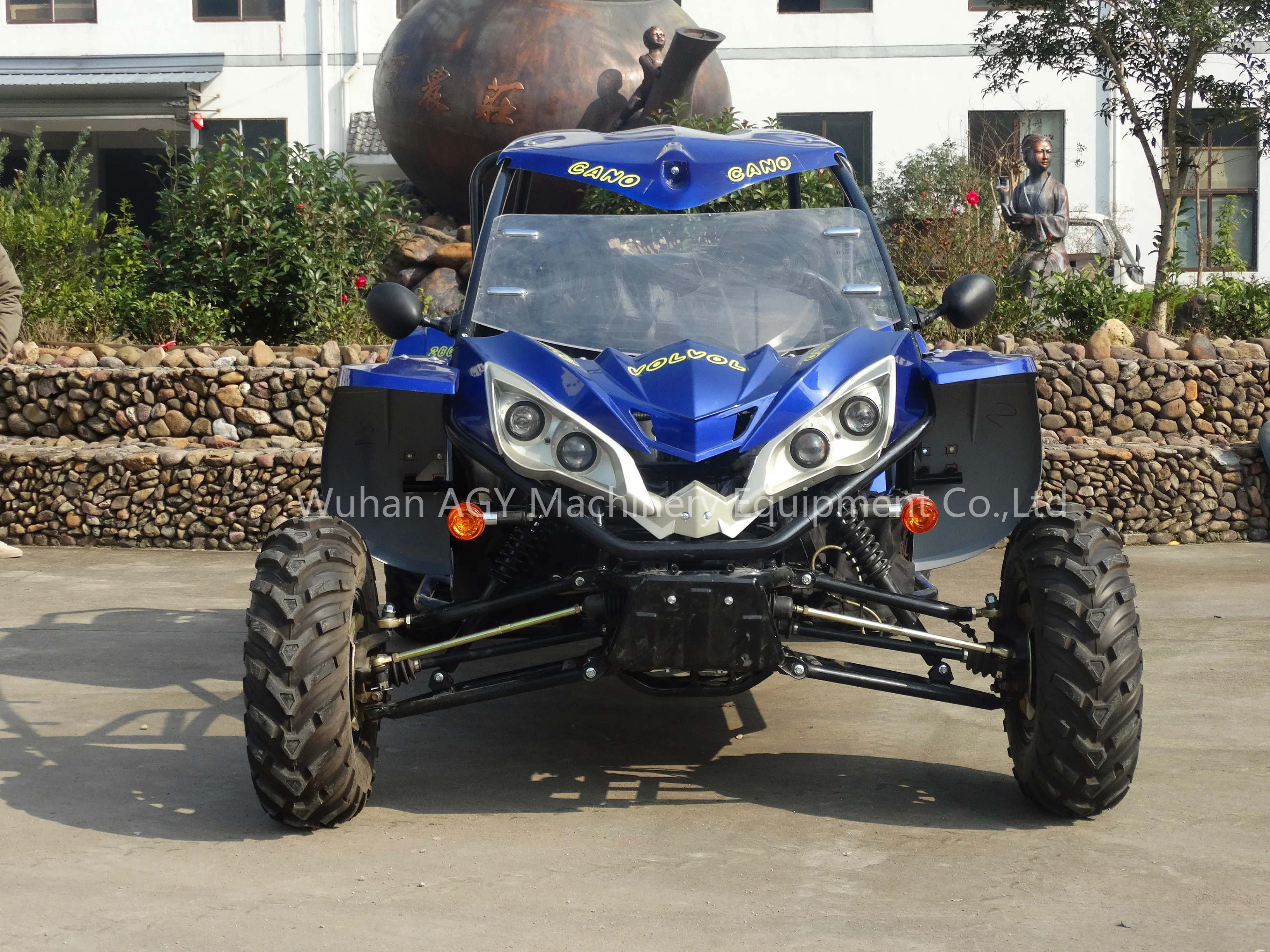

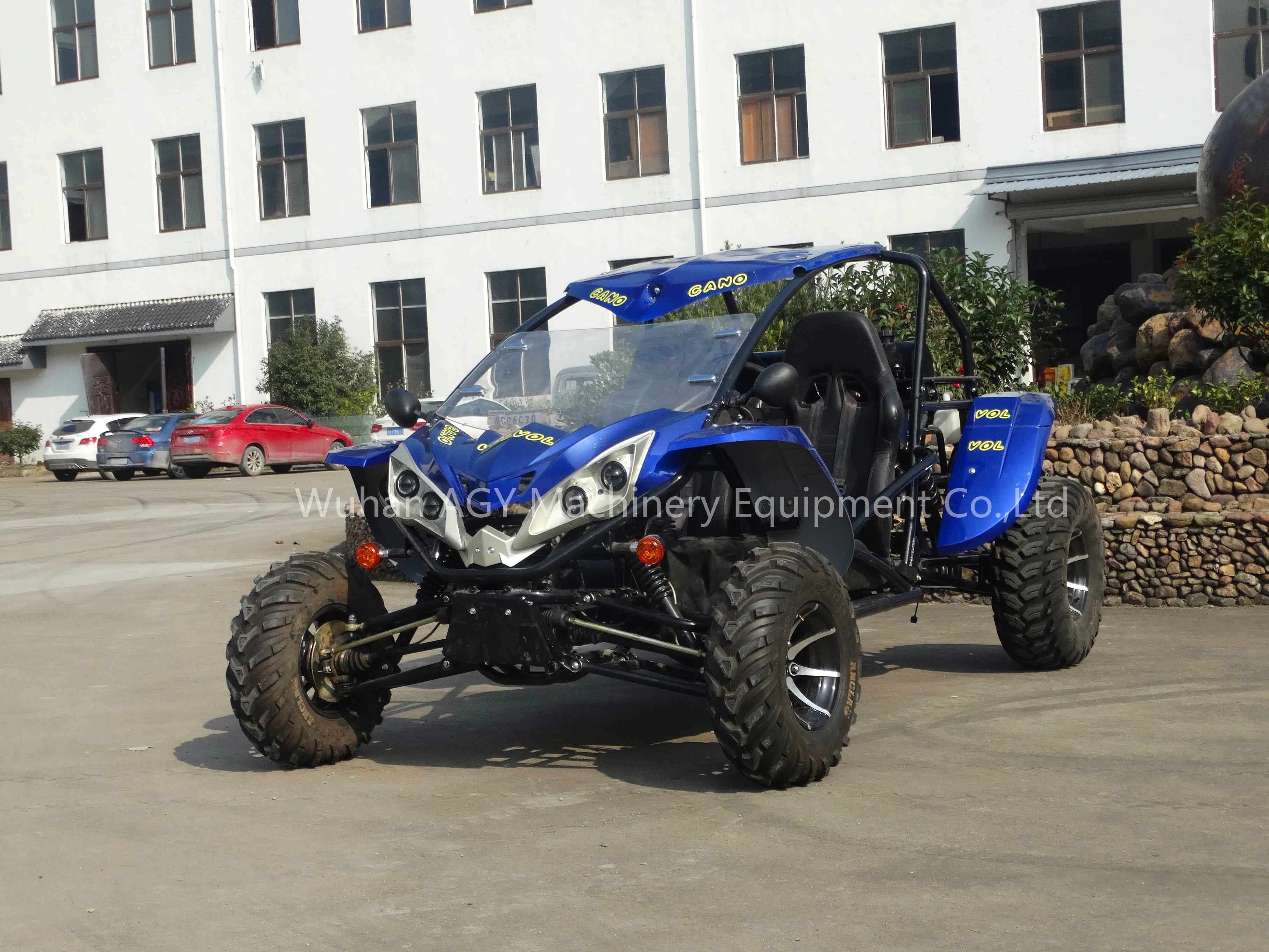

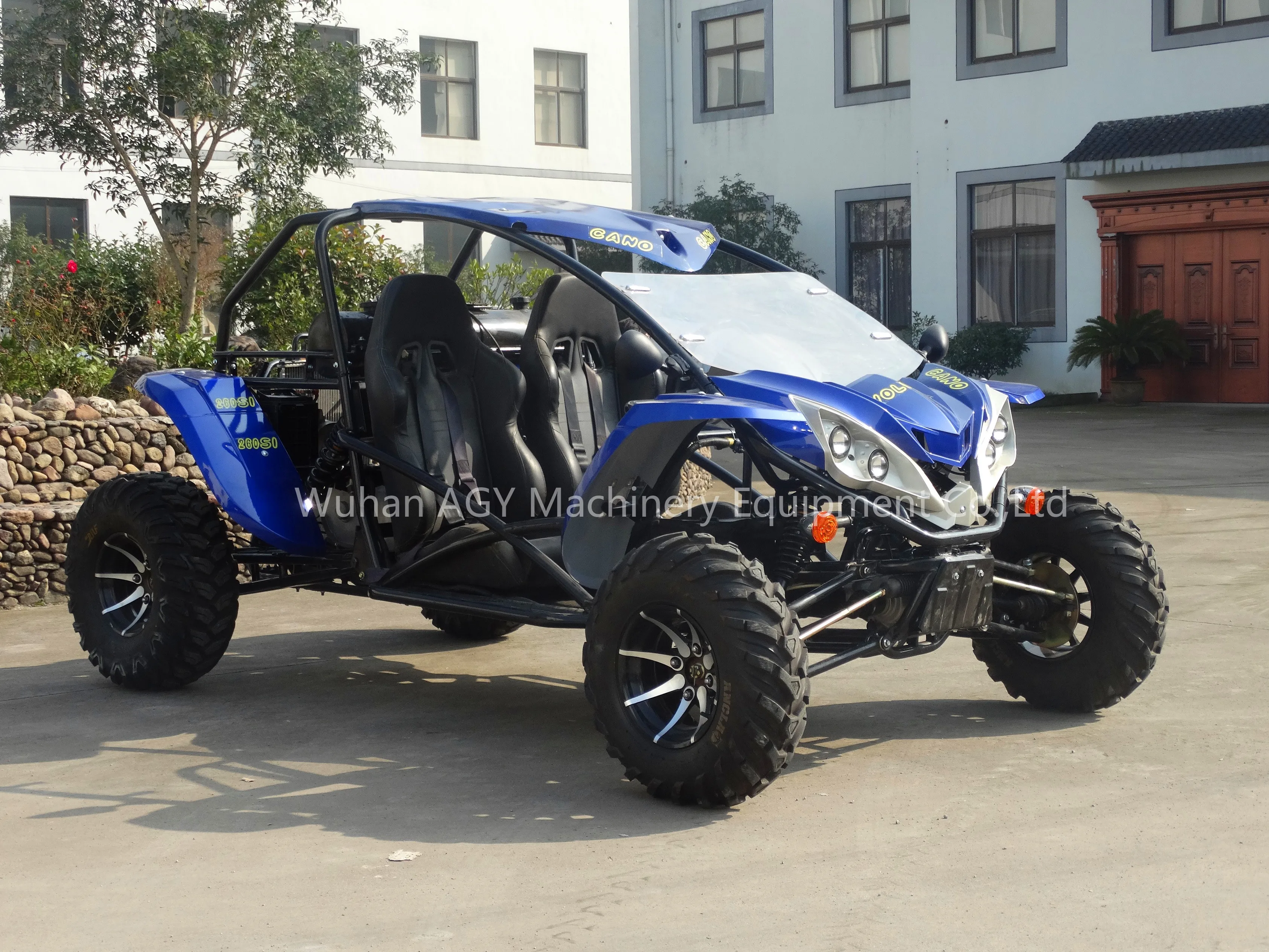

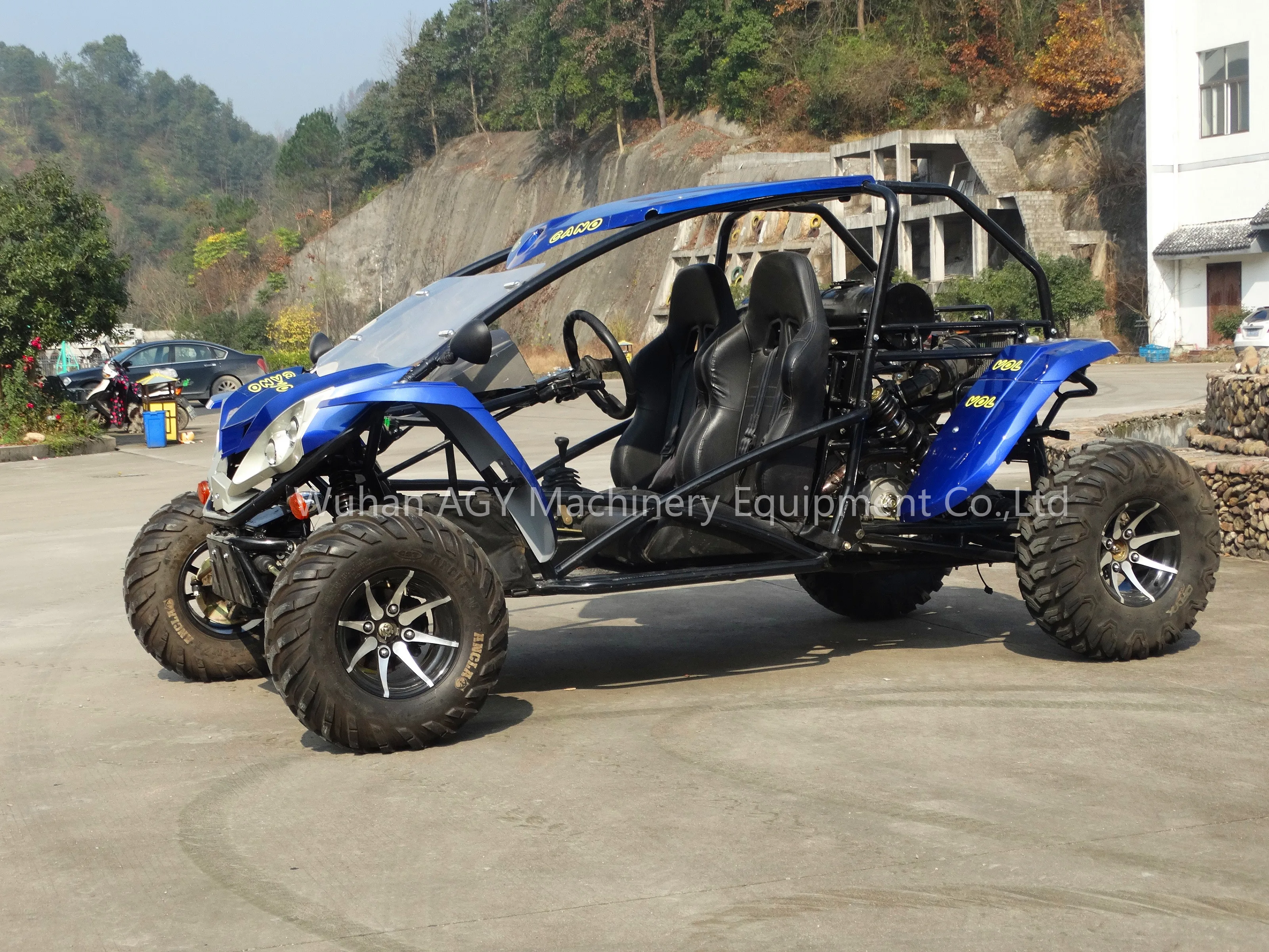

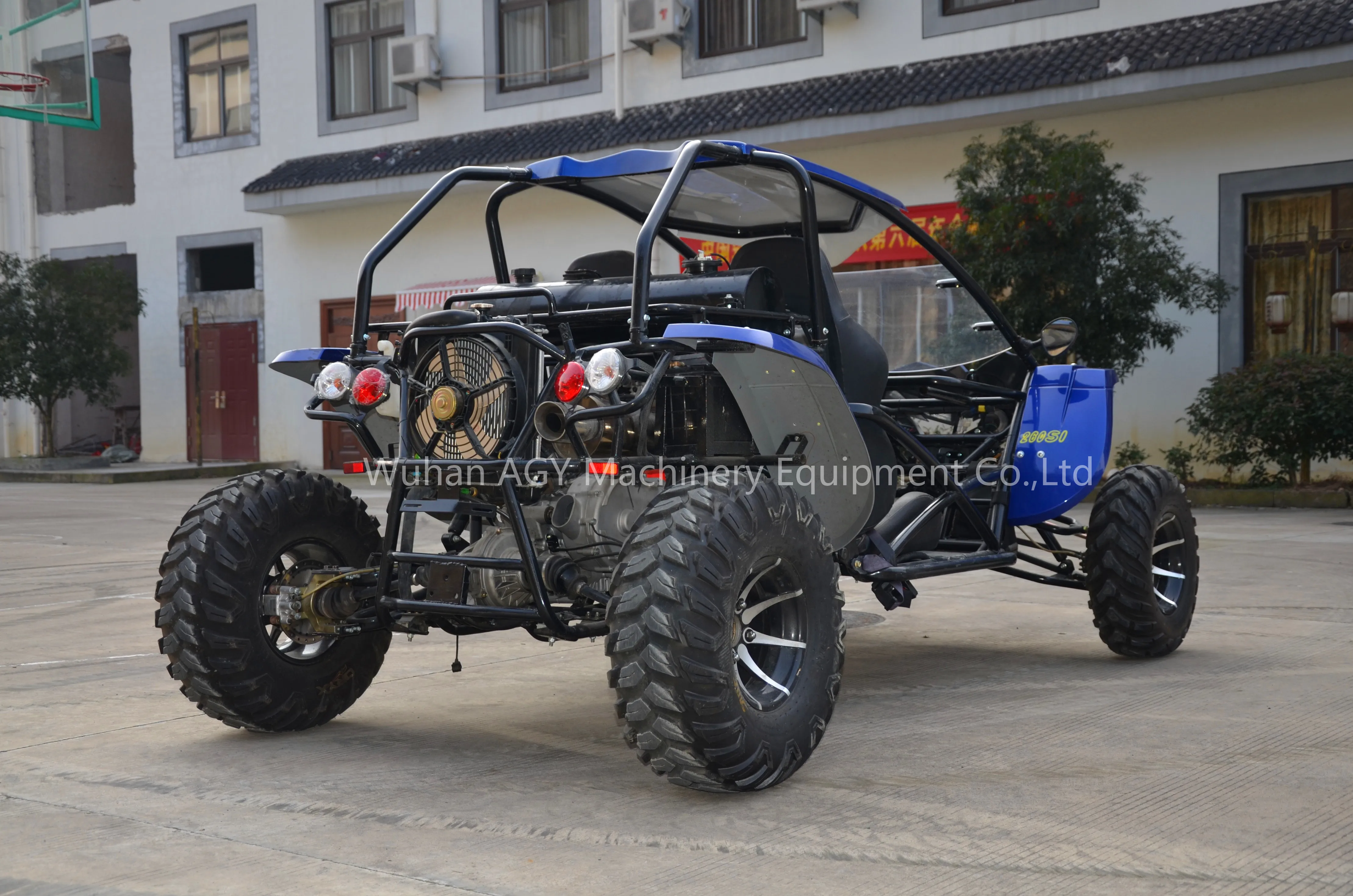

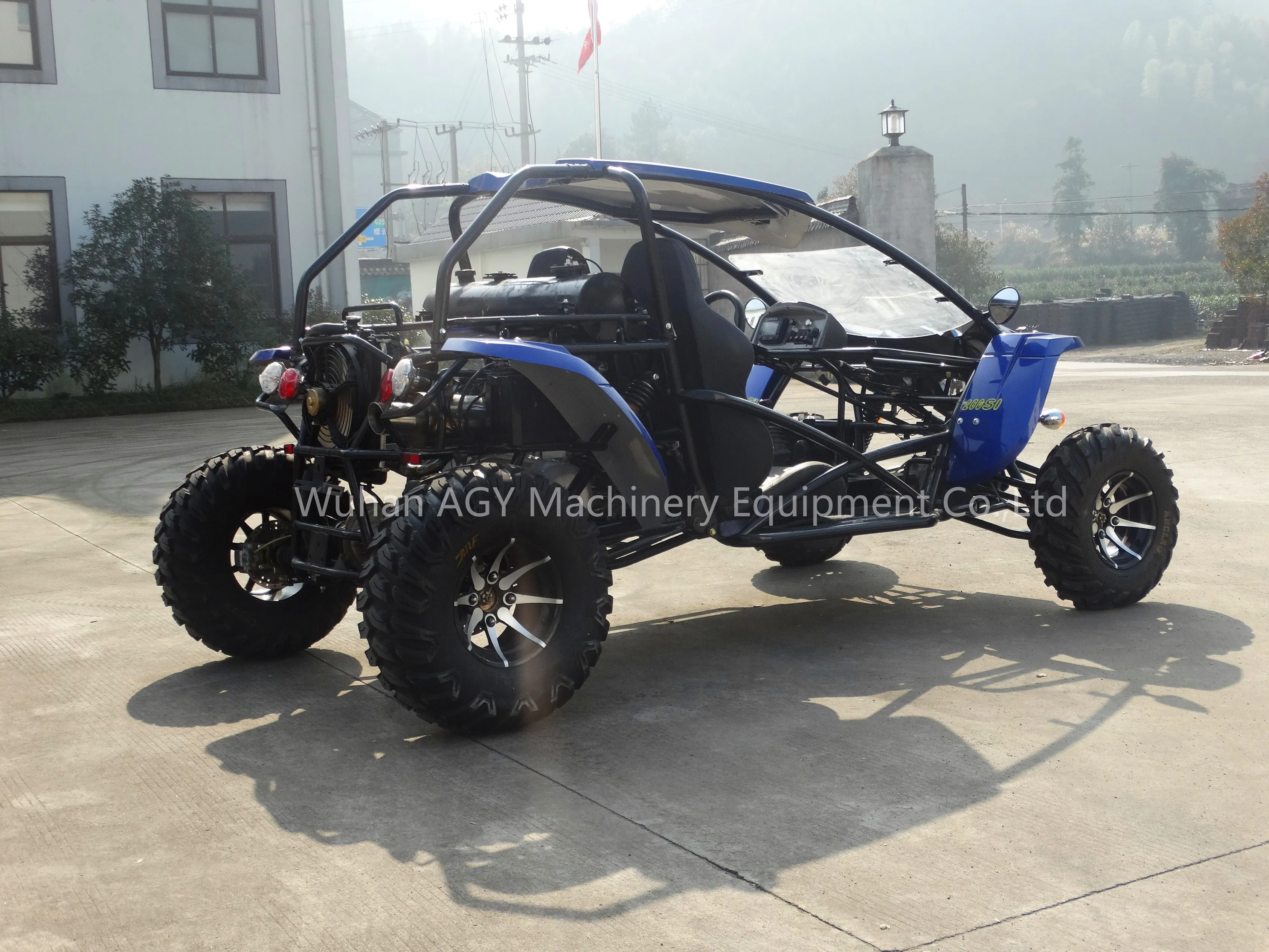

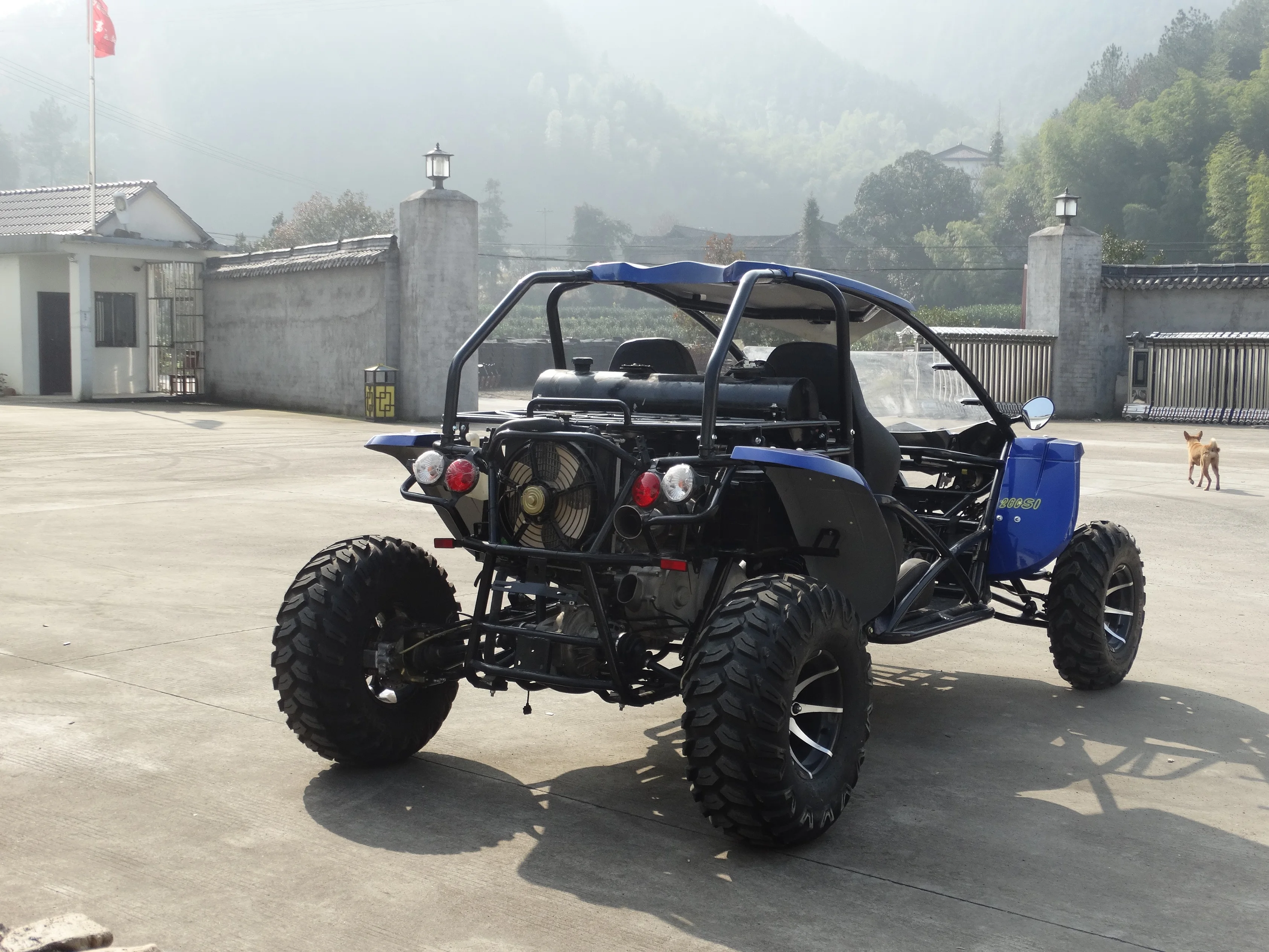

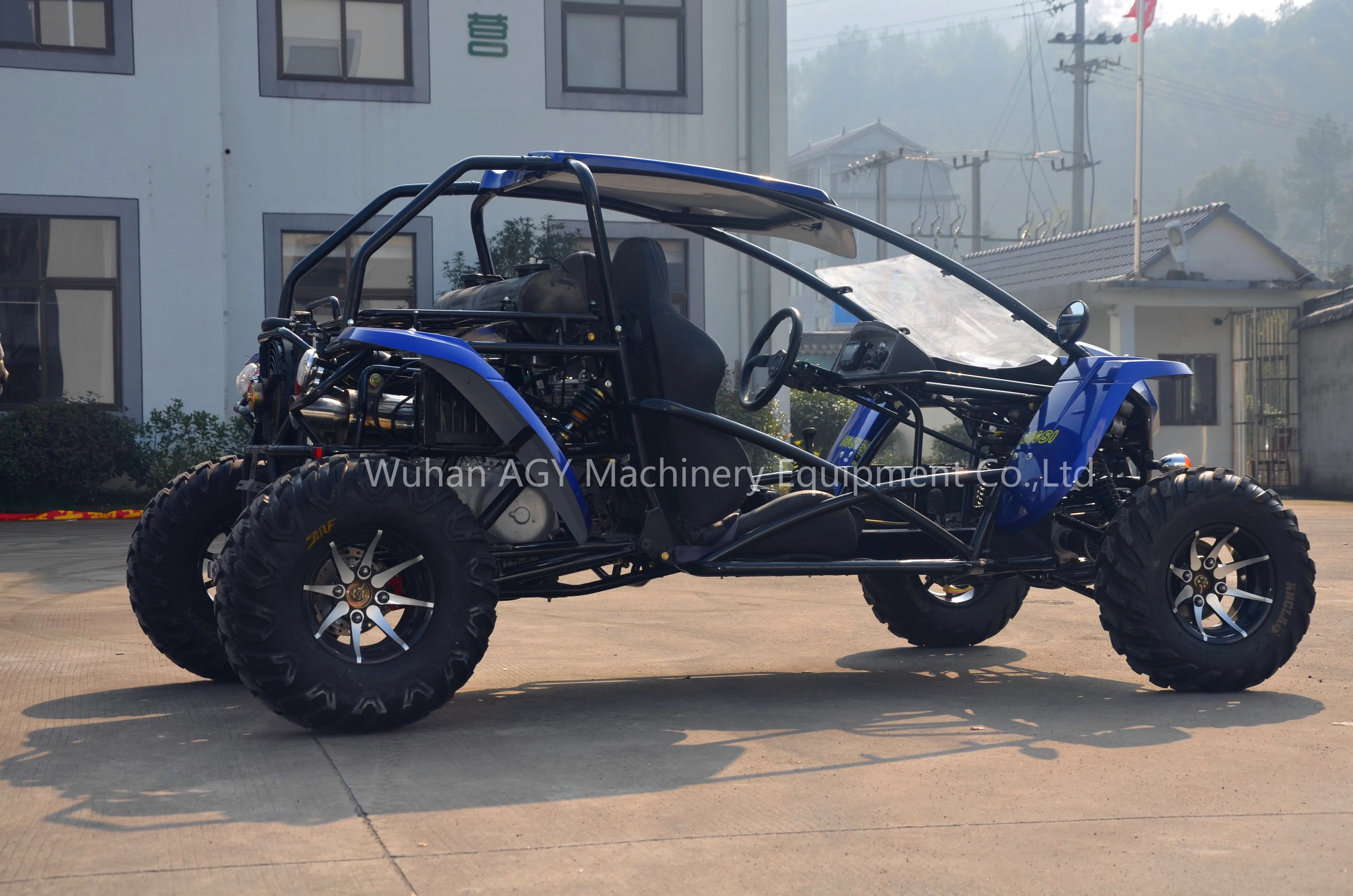

AGY 1100cc cf moto engine 2 cylinder 4x4 Go Kart Buggy

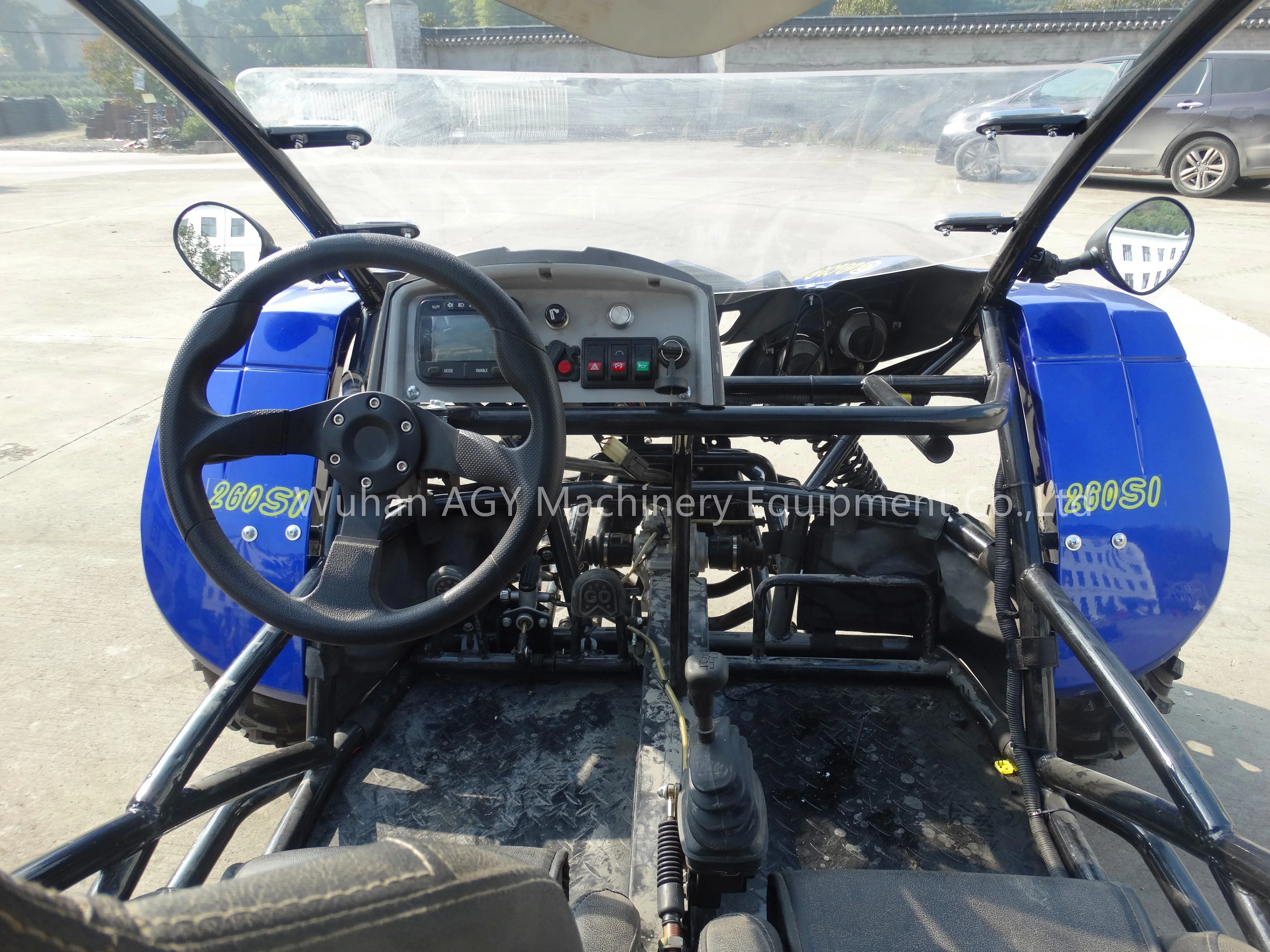

"one-button start " Supported

Four wheel independent suspension

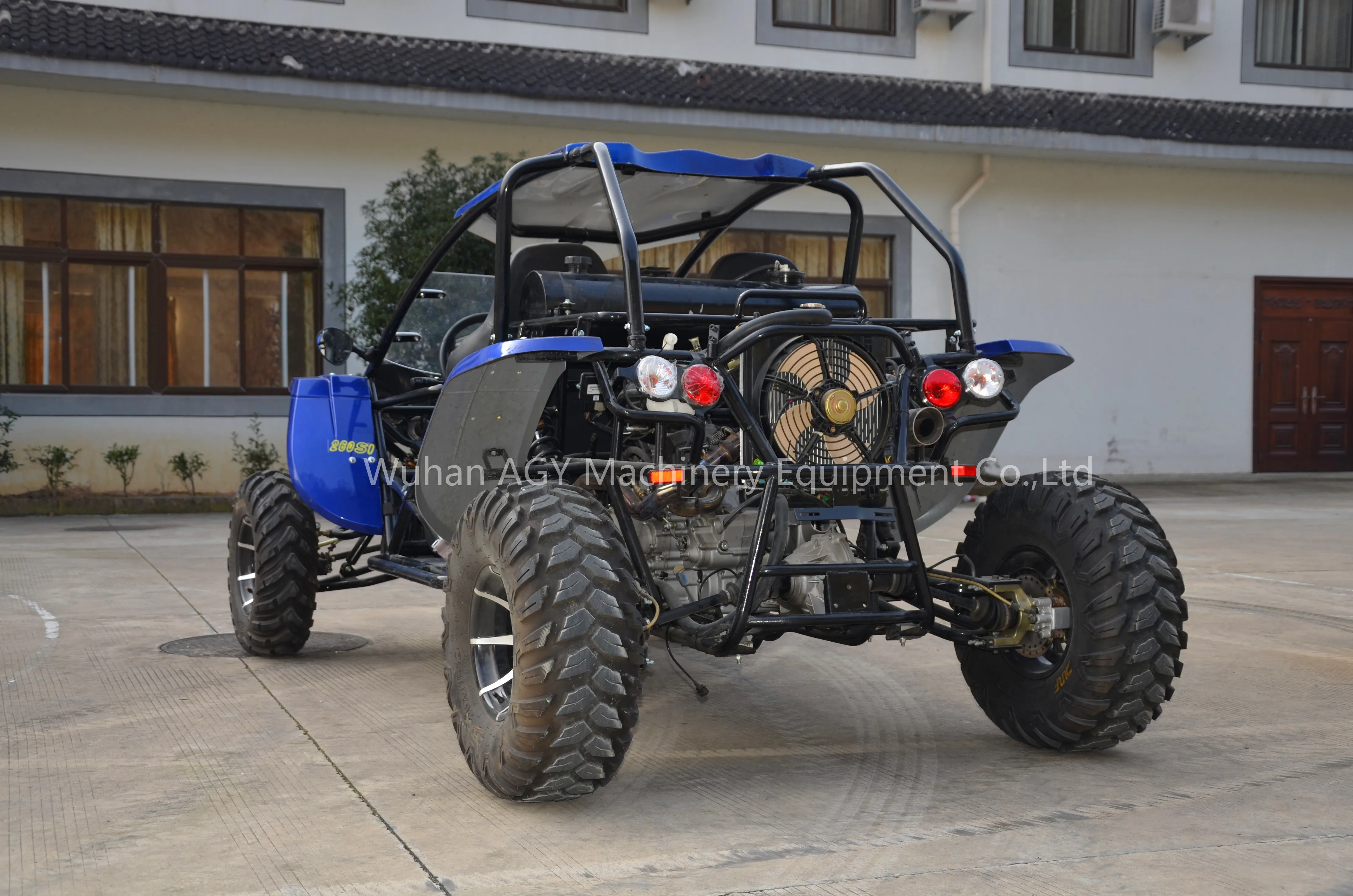

Special crafted powerful engine exhaust system













































Specification



ItemParameter
Model NameFury 1100 4x4
Product size(L*W*H)3085*1685*1490mm
Weight550kg
Carrying capacity250kg
Wheelbase2400mm
Front wheel gauge1454mm
Rear wheel gauge1387mm
Turning circle diameter≤ 4m
Ground clearance320mm
Fuel tank25L
Top speed120km/h
Front suspensionIndependent,double swing arm
Rear suspensionIndependent,trailing dual swing arm
Front/Rear brakeHydraulic four wheel disc
Tire27*8-14(front)/27*11-14(rear)
TransmissionShaft
Drive system4x4
EngineCF Moto
Engine type2 cylinder 4 stroke,water-cooled
Displacement1100cc
Compressure ratio10.2:1
CarburetorEFI
IgnitionECU
Rated power50kw/6000rpm(68hp)
Max torque90N.m/4000rpm
Tire choiseOff road tire,
Packing size2830*1645*867mm







Details

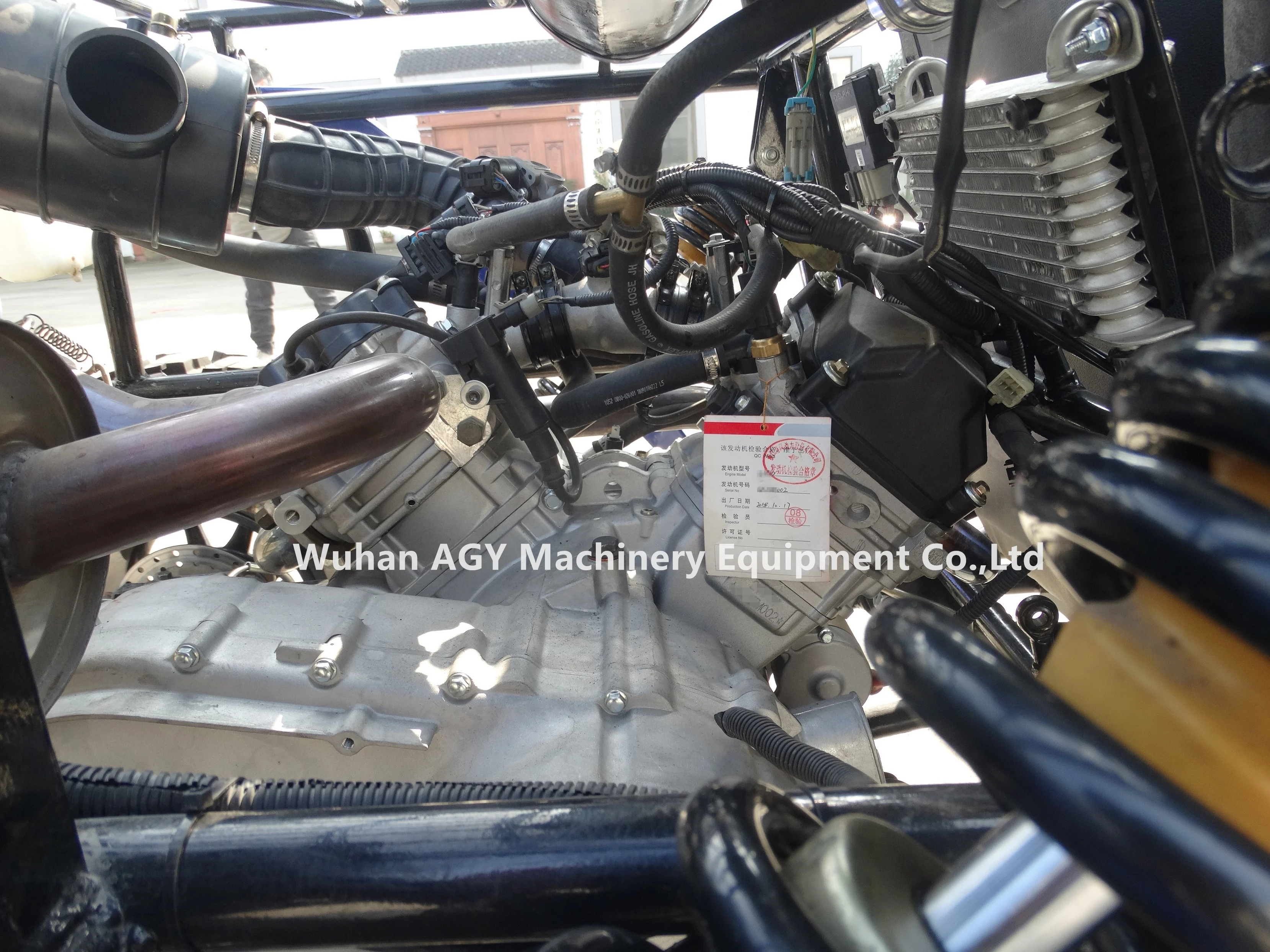

2 cylinder cf moto







Company Performance

 The AGY focused on manufacturing series go karts and ATVs that 110000 USD turnover for only online orders











Delivery

AGY always focused on providing high efficiency delivery services for our clients



packing pictures before delivery to over the world,such as USA,Europe,North America,South America etc.















 Please feel free to contact us for detailed quotation list,thanks
