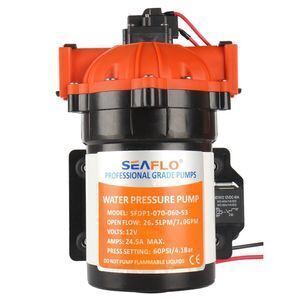

SEAFLO 12 Volt High Pressure Washer Pump For Car

Supplier: Fujian Aidi Electric Co., Ltd.
Region: Fujian, China
Contact: Ms Patty Wu
Price: $65.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

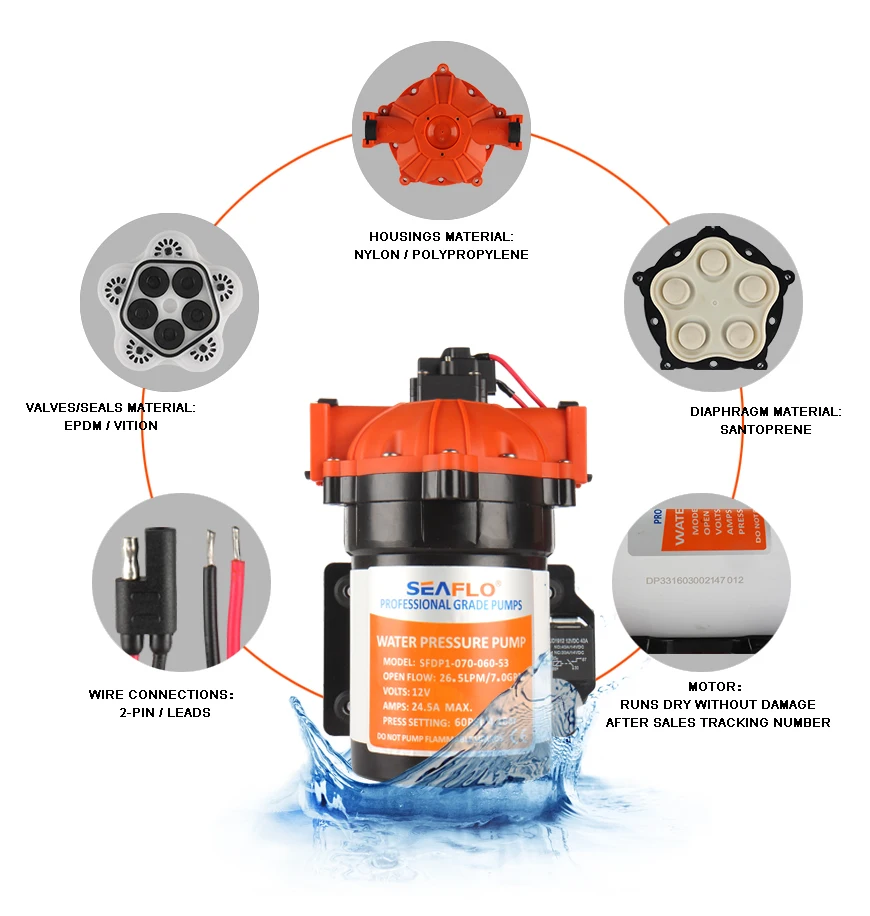

Brand Name:	Seaflo;	Application:	Marine,water Transfer;
Place of Origin:	Fujian China;	Power Source:	Electric;
Power:	Electric;	Max Fluid Temp.:	140 °F [60 °C];
Diaphragm Material:	Santoprene;	Port:	Xiamen;
Inlet & Oulet Port:	Quick Attach;	Structure:	DIAPHRAGM PUMP;
Package Preview:	;	Model Number:	SFDP1-070-060-53;
Max Pressure:	60 PSI / 4.1 Bar;	Max Flow Rate:	7.0 GPM /26.5 LPM;
Payment Terms:	L/C,T/T;	Switch Type:	Switch & By pass;
Self Priming:	6 ft [1.8 m] Suction;	Pressure:	High Pressure;
Voltage:	12V;	Packaging Detail:	1pc/inner box; 4 pcs/ctn; Seaworthy Strong Carton;
Outlet Size:	quick attach;	Horsepower:	Power;
Cable Length:	16AWG;	Valve Material:	EPDM;
Supply Ability:	3000 Piece/Pieces per Day;

Scenario application

SEAFLO 12 Volt High Pressure Washer Pump For Car

Product Description

FEATURES & BENEFITS

-Continuous Duty
-Can supply up to 6fixtures
-Self priming
-Run dry safe
-Can be use for Fresh&Salt Water

-Adjustable pressure switch
-16AWG,9"long Leads
-2 Year Warranty
- Meets or exceeds RoHS, SGS, and ISO standards

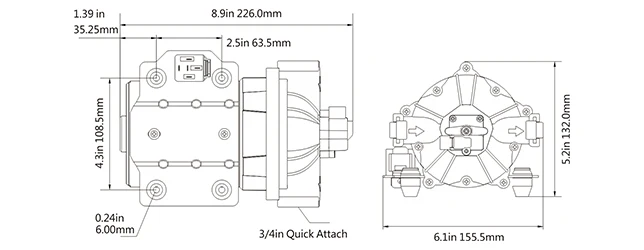

DIMENSIONS

STANDARD PUMP CONFIGURATIONS

Model

Voltage

Open Flow

(GPM/LPM)

Control Type

Max Draw

Shut-off Pressure

(PSI/BAR)

Valves

Diaphragm

Ports

Wire Connections

SFDP1-070-060-53

12V

7.0 / 26.5

Switch

24.5A

60 / 4.1

EPDM

Santoprene

QUICK ATTACH

2-Pin/Leads

PERFORMANCE

PRESSURE		FLOW		CURRENT
PSI	BAR	GPM	LPM	APMS
0	0	5.55	21.00	10.53
25	1.73	4.17	15.80	16.07
30	2.07	4.07	15.40	16.76
40	2.72	3.86	14.60	18
50	4.45	3.59	13.60	19.6
60	4.14	3.38	12.80	20.88
70	4.83	0	0	21.92

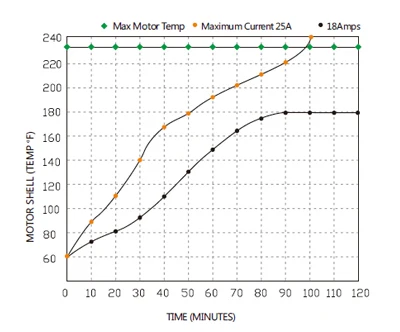

HEAT RISE

Packaging & Shipping


	Unit Pump Weight	9.84 lbs (4.46 kg)
	Selling Unit Size (L x W x H)	13.46" x 7.09" x 5.63" (34.2 x 18 x 14.3 cm)
	Selling Unit Weight	10.89 lbs (4.94kg)
	Master Carton Size (L x W x H)	14.96" x 14.96" x 12.60" (38 x 38 x 32 cm)
	Master Carton Qty	4 pcs
	Master Carton Weight	46.31 lbs (21 kg)
