Detall electronics assembly line table with drawer

Supplier: Shanghai Detall Electronics Technology Co., Ltd.
Region: Shanghai, China
Contact: Ms samantha chen
Price: $450.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	150-300KG;	Business type:	Manufacturer in china with 10 years;
Design:	Customized drawing based on your demands;	Resistace:	10^6 ---10^9 Ohm fro ESD table with drawer;
Place of Origin:	Shanghai China (Mainland);	Condition:	New;
Brand Name:	Detall Brand;	Delivery Detail:	25 days after payment;
Lead Time:	25 Days after we get your payment;	Customized Service:	OEM & ODM based on your company details;
Certification:	ISO9001,CE;	Dimension(LWH):	customized and standard size;
Warranty:	3-5 Years;	Port:	Shanghai port, Ningbo Port;
Packing:	Packed Carton box & Plywood Crate;	Usage:	Industrial Workshop,Factory, Lab, Clean, room, SMT...;
Packaging Detail:	Carton box, then Plywood crate for Detall electronics assembly line table with drawer;	Test standard:	Exceed IEC61340-5-1:2007;
After-sales Service Provided:	Overseas third-party support available;	Material:	Cold Rolled Steel with different table top;
Supply Ability:	100 Set/Sets per Week Detall electronics assembly line table with drawer;	Product name:	Detall electronics assembly line table with drawer;

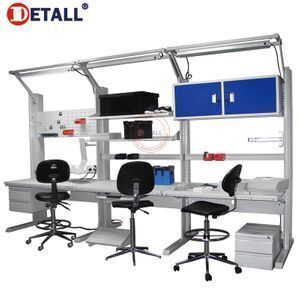

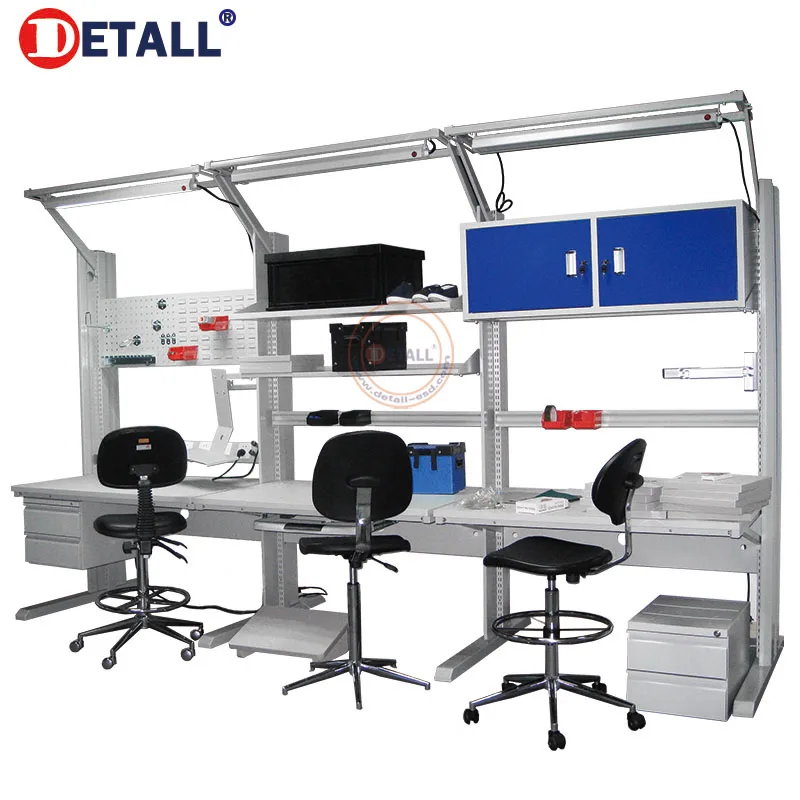

Detall electronics assembly line table with drawer

Product Description

Product Introduction

Detall Multipurpose heavy-duty industrial Garage Workbench With Cabinet drawer is a specific type of workbench which adopt the structure of table together with the double slotted Upright frame supporter . it is able to allow the work surface or the optional modular accessories to be mounted on either side of both the single sided and double sided station, and adjustable on work table along column.

anti static workbench is suitable for electronics and semiconductor industries , military-industrial , aerospace sectors, contract manufacturers, research and educational organizations and telecommunication industries.

SPECIFICATIONS FOR DETALL INDUSTRIAL GARAGE WORKBENCH
Size	length	mm	1200/1530
	Deepth	mm	600/750
	Height	mm	785mm (table top to ground) 760-1120 (adjustable type)
Main performance parameters	ESD performance parameters	ohm (test input 100V, )	metal surface: 10⁵ - 10¹⁰ Laminate surface: 10⁶ - 10¹⁰
Main performance parameters	Static weight loading	KG	300kg - light duty type 500kg - standard duty type 800kg - heavy duty type

Click different workbench to get more details

High Standard of ESD Worktables - ISO and CE Certificated
EN ISO 12100:2010	Safety of machinery - general principles for design - risk assessment and risk reducion
EN 60204-1:2006 +A1:2009 +AC:2010	Safety of machinery - Electrical Equipment of machnies - part 1: Gerneral requirments
IEC 61340-5-1:2007	Electrostatics - Part 5-1: Protection of electronic devices from electrostatic phenomena

Electrical Properties of the ESD worktables
Test	Relative Humidity	Electrical Results
Point to point resistance	60%-40%	10⁶ to 1 x 10⁷ ohms
	40%-20%	10⁷ to 1 x 10⁸ ohms
	20%-10%	10⁸ to 1 x 10¹⁰ ohms
Point to earth resistance	60%-40%	10⁶ to 1 x 10⁷ ohms
	40%-20%	10⁷ to 1 x 10⁸ ohms
	20%-10%	10⁸ to 1 x 10¹⁰ ohms
Volume Resistance	60%-30%	10⁷ to 1 x 10⁸ ohms
Volume Resistance	30%-10%	10⁸ to 1 x 10¹⁰ ohms
Static Decay	50%	0.01sec
Static Decay	10%	0.02sec
1. Per EOS/ESD - S 4.1 2. Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) 3. FTMS 101C, Method 4046
