JINLUN BEST QUALITY 4 FEET SPINDLE LESS LOG TIMBER DEBARKER PRODUCTION LINE

Supplier: Shandong Jinlun Machinery Co., Ltd.
Region: Shandong, China
Contact: Mr jinlun machine
Price: $7000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE/SGS/ISO9000;	Warranty:	1 YEAR;
Max. log diameter:	600mm;	Diamensions:	3560x2150x1100mm;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Manufacturing Plant;
Port:	QINGDAO;	feed system:	hydraulic;
Place of Origin:	China;	the number of oil cylinder:	2;
Wood Loss Rate:	less than3%;	speed:	50meters/min;
Brand Name:	jinlun;	the number of motor:	3;
Dimension(LWH):	3560x2150x1100mm;	Weight:	4500KG,4500KG;
Wood Length Range:	<1400mm;	Peeling Rate:	mort than 99%;
Max. log length:	1400mm;	Voltage:	380V or as you request;
Supply Ability:	50 Set/Sets per Month;	total power:	24kw;
Power(W):	24kw;	Condition:	New;
After-sales Service Provided:	Field installation, commissioning and training,Engineers available to service machinery overseas;	Packaging Detail:	Container;

Product Description

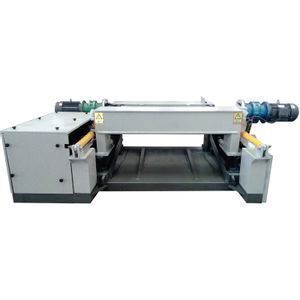

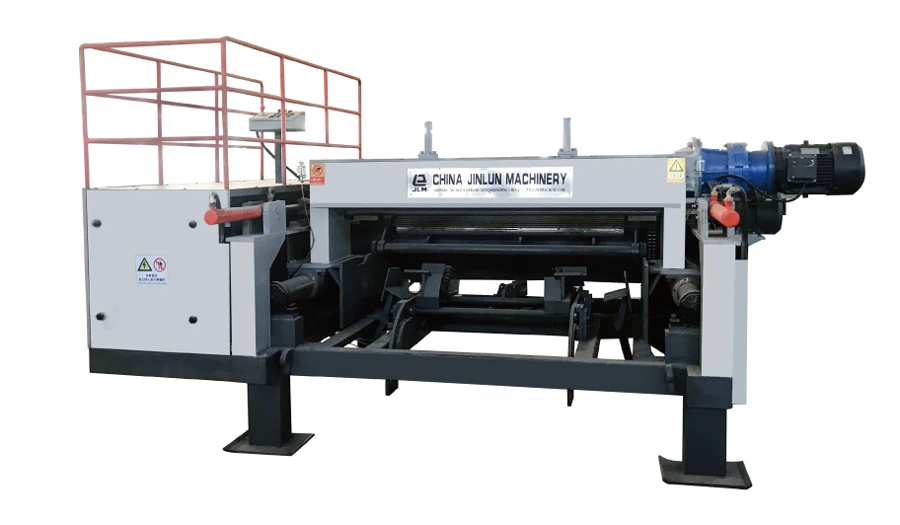

High match 4 feet log debarker machine for plywood

High match 4 feet log debarker machine for plywood is used for log for round before peeling. And it is suitable for the eucalyptus, pine, cotton wood .with principle of peeling, removing the log’s skin and straighting logs. hydraulic driven feed mechanism,can quickly, efficiently put log removal of bark, round. One set debarker can supply 2 set peeling machine .it saves the original manual peeling, rounding procedure, save 5-6 human.

High match 4 feet log debarker machine parameter

Main index\Model	WWZY130-60H
Max. Log Length	1400mm
Max. Log Diameter	Φ600mm
Roller Diameter	Φ180mm
Speed	500meters/min
Blade Size	1500x1800x16mm
Total Power	Double Roller Motor 11kw
	Single Roller Motor 7.5kw
	Hydraulic Motor 5.5kw
Dimension	3560x2150x1100mm
Weight	About 4500kg

Main features:

1, increase of single and double roll’s diameter, improving the speed of remove skin .

2, single, double roll surface with chrome plating, improve wear resisting of roller.

3, the hydraulic feeding mechanism, a cutter, rapid, and feed pressure can be adjusted and display, adapt to different wood .

4, simple operation, convenient maintenance, requirements for operators and workers is not high technology.

Normally,one debarking machine can provide round logs for two peeling machines,one peeling machine can produce 45meters veneer every minute.

so you can produce 90 meters veneer every minute with one debarking machine.

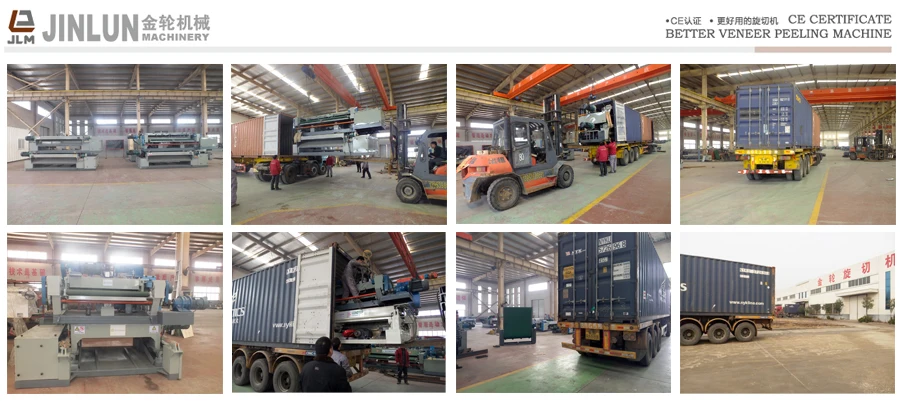

Packaging & Shipping

Our Services

After Sale Services

1. One year guarantee for the motor and reducer.

2. 24 hours technical service by email.

3. Door to door service is available.

4. Use friendly English software, user manual and detailed video.

Company Information

we are JINQU trading company,we have our own factory,JINLUN machiney factory.

Our company located in State-level economic development zone Linyi city Shangdong province,The Jinlun machinery Co., ltd was initiated and established since 1999 by our general manager Mr Li, We specialize in manufacturing woodworking peeling machinery . It has earned more than 20 national patents and formed a whole series of high-technique equipments and a completely set of production line ,such as 4 feet ,8 feet ,10 feet of peeling machine for spindle and spindleless. We are one of the largest professional manufactures factory in China .

Our machines own the highest domestic market share and exported to more than 20 countries,such asVietnam, Thailand, Indonesia,Malaysia, Philippines, India, Pakistan,

Turkey, Russia, South Korea, Brazil, Paraguay, Nigeria and so on .

Any time,any questions,contact us,we will provide you the best service.
