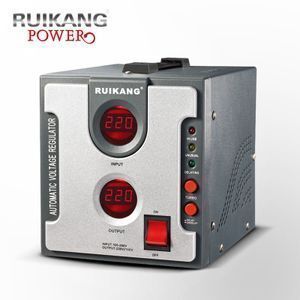

AVR-500VA 1KVA 2KVA 3KVA 5KVA Automatic Voltage Stabilizer Regulator

Click here to contact
Product details
Color:customized design;Casing:iron home voltage stabilizer;
Packaging Detail:1.Container: 20GP 2.Model: 500/1000/1500/2000/3000/5000VA 3.PCS/CTN: 8/4/4/4/1/1 PCS/CTN 4.MEAS. /CTN (CM): 50*28*34/69.2*28*20.5/69.2*28*20.5/69.2*28*20.5/42.5*26.8*32/42.5*26.8*32 5.Quantity: 4872/2920/2920/2920/795/795 PCS;Service:OEM and ODM;
Usage:Stabilized voltage;Transformer:aluminum transformer;
Brand Name:RUIKANG;Phase:SINGLE PHASE;
Supply Ability:40000 Piece/Pieces per Month step-up stabilizer;Panel:plastic;
Model Number:PHR-1000VA;Name:RUIKANG 500v 1kv 2kv 3kv 5kv automatic voltage stabilizer;
Payment Terms:L/C,D/A,D/P,T/T,Western Union;PCB:IC with superior quality;
Place of Origin:Guangdong China;Port:Zhongshan (Xiaolan Port);
Type:step-up stabilizer;Current Type:AC;
Certificates:CE,ISO9001 and SONCAP;

Ruikang Factory Price 500V 1Kv 2Kv 3Kv 5Kv Automatic Voltage Stabilizer

Product Description

Model500VA1000VA1500VA2000VA3000VA5000VA
Capacity80% actual power when input voltage reach to 190V

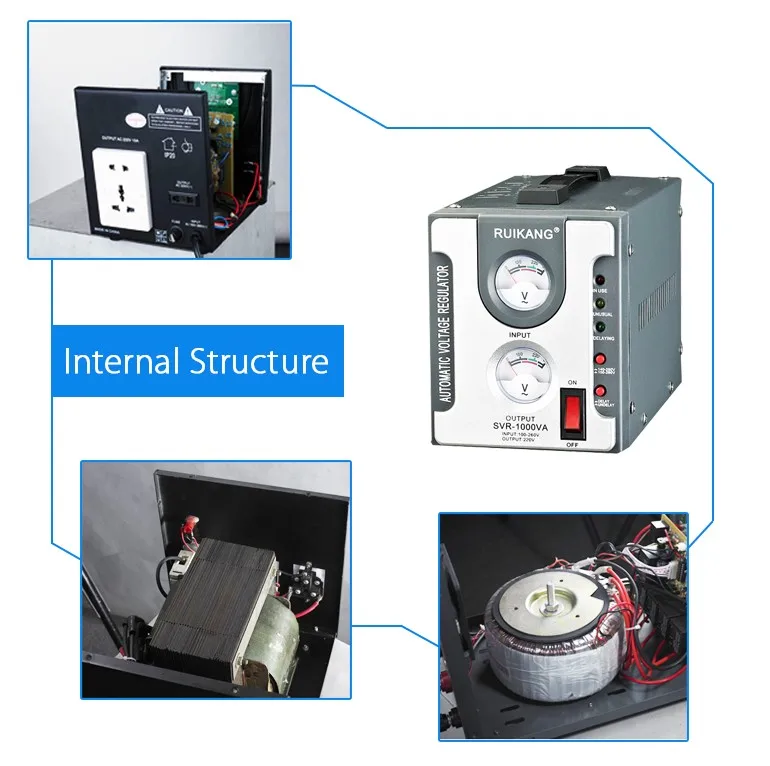

Technology Relay type,Aluminum coil,EI transformer/Toroidal transformer
Phase Single phase (One transformer controlled)
Double display(Meter or Digital) Input voltage & Output voltage
Input Voltage Range160-260V (3relaies)100-260V (5relaies)100-260V (5relaies)100-260V (5relaies)140-260V (4relaies)140-260V (4relaies)
Frequency50Hz/60Hz
OutputVoltageAC 220±10%V / AC 110±15%V
Protection High voltage Protection√

√

√√√√
Overload Protection √√√√√
EnviromentalOperating Temperature0℃-40℃
Storage Temperature-15℃-45℃
Operating Relative Humidity10%RH-90%RH,Non-condensing
Physical Pcs/Carton844411
Packing Size(mm)500×300×340692×295×205692×295×205692×295×205425×268×320425×268×320
G.W.(KGS)222022251217
N.W.(KGS)191820231116

Product Features
  • Relay type svc(tnd) stablizer;
  • Meter/Digital display aluminium transformer;
  • Input voltage range: 100-260V;
  • Output voltage: AC220V±10%/AC110V±10%;
  • Power capacity:80%;
  • Single phase;
  • LED light : In use /Unusual/Delaying;
  • Delay time; 6S/3min;
  • Protection: High voltage, low voltage, high temperature, short circuit;
  • Certification:CE,SONCAP;
  • Oem & Odm Available For Customers;
Product Details

Packaging & Shipping
+
Our Products:
Voltage stabilizer, Voltage regulator, Transformer, Charger, UPS ;     >>HOME
MOQ:
1.500pcs;
2. Small orders can be acceptable if we have stocks of this product;
Packing:
Double packing: colour box+master carton;
500VA:8pcs/ctn 1000VA~2000VA: 4pcs/ctn, 3000VA and 5000VA: 2pc/ctn;
1*20FT can be loaded 2900PCS 1*40GP can be loaded 3500PCS;
Delivery Time:
Shipped in 30 days after payment;
Supply Ability:
100000 pieces per Month;
Payment Terms:
TT bank transfer, paypal, western union, cash, etc;
Shipping way:
Shipping by air or by sea;

Servo Motor Type Wall Mounted Type Step Up Down Transformer Servo Motor Type Servo Motor Type Relay Type

Company Information

Cherry Hong Demmy zhang Linan Luo May Chan Nancy Ma Sherlin Lin

FAQ
Q 1. What's the payment terms?
A. We accept T/T, 30% deposit and 70% balance before shipment.
Q 2. What's the loading port?
A. Usually we prefer xiaolan port (zhongshan) for delivery.
Q 3. How's the delivery time? ( 4kw voltage stabilizer )
A. Normally it will take about 25-30 days for production.
Q 4. We want to know about production capacity.
A. Our average capacity is 10000 pcs per month.
Q 5. May I know the standard of package?
A. We usually use carton for small units, and use strong wooden case for floor standing big units. Each unit is well protected by color box.
Q 6. What kind of material of transformer?
A. We have two types, one is 100% copper and the other is copper with aluminum. It depends on your requirements. In fact, those two have no difference if normal work well.
Q 7. Would you accept to use our logo?
A. If you have good quantity, it is absolutely no problem to do OEM.
Q 8. What is your market?
A. Our products are popular export to Africa, South Asia, Middle East, Europe, and so on. Most are our regular customers and some are under developing. Surely we hope you can join us and make mutual benefits from our cooperation.
Q 9. What kind of certificate you have?
A. We have CE, SONCAP and testing report for all our products.
Q 10. Could you offer Form A or C/O?
A. Absolutely it is not a problem. We can prepare relative documents to foreign affairs office or other office to apply for the certificate.
