ZCEBOX electrical equipment supplies enclosure mcb circuit breaker db box

Supplier: Tangshan Zhengcheng Electric Co., Ltd.
Region: Hebei, China
Contact: Mr Jack Lee
Price: $2.12 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Window:	Transparent or Opaque;	Model Number:	LWDS&LWDF;
Place of Origin:	Hebei China;	Standard:	IEC60439-3;
Color:	White/Grey,White/Grey;	Package Preview:	;
Brand Name:	ZCEBOX;	Feature:	Adjustable DIN rail for flush mount products;
Mounting Type:	Surface;	Payment Terms:	L/C,T/T,Western Union;
Product Name:	Box;	Port:	Tianjin/Ningbo;
Supply Ability:	500000 Piece/Pieces per Month;	Protection Degree:	IP40;
Certificate:	CE, RoHS, HF Test, IK Test;	Material:	ABS;
Application:	To protect circuit breakers installed in the panel box;

Product Description

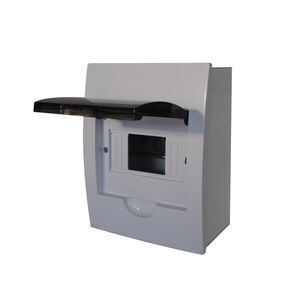

LWDF &LWDS distribution box
LWDF&LWDS Series distribution box High impact resistance material:HIPS,ABS,ABS-V Fire Resistant Safe and full material copper terminals Adjustable din-rail:move ascend and descend Ultra-large space box for moving and easy wiring Flush mounting and surface mounting available Function of Distribution box:protect MCB and other devices. Application: widely used in low voltage distribution networks for power supplying of consumers and commercial buildings.
Standard	IEC60439-3
Approval	CE, RoHS and HF test and IK test
Adjustable DIN rail ,adjustable depth
Mounting type	Flush and surface. For flush mount,adjustable DIN rail ,adjustable depth
Protection degree	IP40
Ambient temperature(℃)	-5~+40,max.95% humidity
Storage temperature(℃)	-40~+75

There are kinds of distribution box in the market and ours are Merlin Gerin type.

Our raw materials is ABS. Din rail is standard 35mm which is adjustable for flush mount distribution box.

Selection and Odering Data

Model	Numbers in a canton	Measurement of products
Model	Numbers in a canton	Length(mm)	Width(mm)	Height(mm)
LWDF-2	200	65	130	85
LWDF-4	30	125	211	86
LWDF-6	30	163	211	86
LWDF-8	20	199	216	86
LWDF-12	20	272	211	86
LWDF-18	10	380	235	97
LWDF-24	10	274	324	9586
LWDF-36	5	372	455	95
LWDS-2	300	50	130	85
LWDS-4	30	112	198	95
LWDS-6	30	148	198	95
LWDS-8	30	184	198	95
LWDS-12	20	256	198	95
LWDS-18	10	363	220	99
LWDS-24	10	271	326	92
LWDS-36	5	307	474	97

Fitting Inside the Enclosure

Loops	Zero bar	Earth bar	Width	Height
Distribution box	(pcs)	(pcs)	(mm)	(mm)
LWDF/S-4	3	3	6	8
LWDF/S-6	3	3	6	8
LWDF/S-8	4	4	6	8
LWDF/S-12	8	4	6	8
LWDF/S-18	9	9	6	8
LWDF/S-24	Double 8	Double 4	6	8
LWDF/S-36	Double 9	Double 9	6	8

There are differenct kinds of MCB distribution box, like Merlin Gerin TSM type, Hager HG type etc. Made with high quality new ABS, PVC, PC raw materials. Neutral links and earth links are made out of highly copper material to prevent temperature rise. Corrosion resistant Din Rails are made of Aluminum for corrosive resistance which suits all environments.

Tangshan Zhengcheng Electric Co., Ltd is a leading factory in the low voltage electrics field. Established in 2006 and started the international business in 2010. In 2017, we opened a new set of mould to improve the quality of all products; Meanwhile, used servo motor that can lower 40% electricity etc. advanced electrical equipments.

We are committed to designing & manufacturing differenct types of electric MCB distribution box and waterproof junction box, can be used for residential, commercial and industrial applications. And the protection level IP30 IP40 IP41 IP55 IP65 and IP66 can all be available. All products are with ISO9001, CE, ROHS, IK08, HF and other certificates approved.
