Voltage: | 220V 50/60Hz; | Certification: | CE Certificate; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Heating transfer temperature: | 220℃; |
Marketing Type: | Ordinary Product; | Warranty of core components: | 1 YEAR; |
Brand Name: | APM; | Key Selling Points: | Easy to operate; |
Type: | H200M,Heat Transfer; | Showroom Location: | United States,spain; |
Place of Origin: | Guangdong China; | Usage: | heat transfer; |
Plate Type: | letterpress; | Port: | Shenzhen port; |
Packaging Detail: | plywood case; | Video outgoing-inspection: | Provided; |
Max heating transfer size: | 180*200mm; | Supply Ability: | 55.0 Set/Sets per Month; |
Weight: | 250kg; | Payment Terms: | L/C,D/A,T/T; |
Max working air pressure: | 0.4Mpa-0.7Mpa; | Automatic Grade: | semi-automatic; |
Power: | 220V, 50/60HZ; | Package Preview: | ; |
Machinery Test Report: | Provided; | After-sales Service Provided: | Online support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; |
Local Service Location: | United States,spain; | Core Components: | PLC,MOTOR; |
Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Printing Shops,Advertising Company,bottle making company, packaging company; | Condition: | New; |
Color & Page: | single color; | Warranty: | 1 YEAR; |
Application: | heat transfer for bottle; |

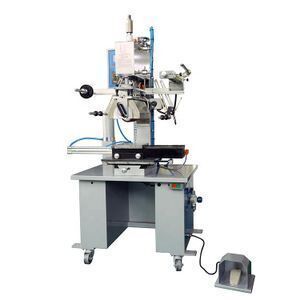

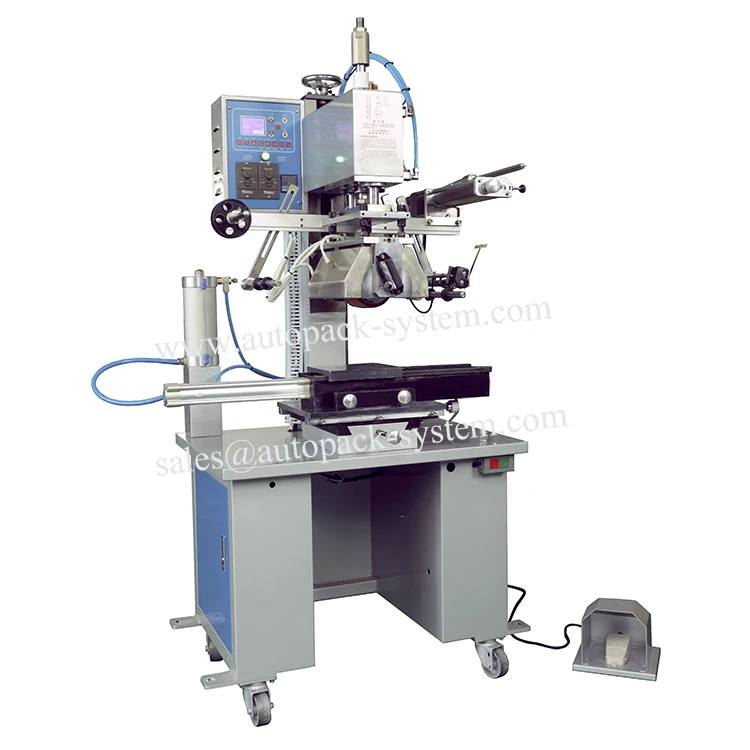

H200FR heat transfer machine for round bottles
Description:
1. Stamping pressure, temperature and speed adjustable.
2.Omron optical sensor, accurate stamping registration
3. Oil cylinder installed to stabilized transferring
4. XYR adjusting worktable.
5. Auto foil feeding and winding.
6. The height of stamping head can be adjusted.
7. Pressing delay time, winding delay time adjustable
Tech-data:
Tech-data |
H200FR |
Max heating transfer size |
180*200mm |
Power |
220V, 50/60HZ |
Max working air pressure |
0.4Mpa-0.7Mpa |
Heating transfer temperature |
220℃ |
Samples:
