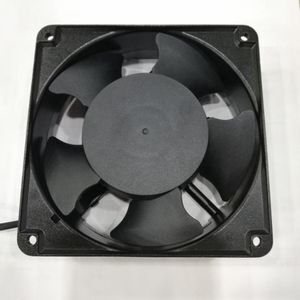

UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan

Product details
Model Number:YAH1238B2;Material:Aluminum Case;
Application:Washing machine / dish washer;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:China;Port:shenzhen / hongkong/guangzhou / ningbo;
Packaging Detail:40pcs in a carton ,19kgs each carton with 120x120x38mm AC Fan Dimenssion : 45x30x30cm;Usage:cooler air;
Fan speed:2400RPM / 3000RPM;Type:Axial flow fan;
Brand Name:YCCFAN;Voltage:220v / 230v / 240v;
Item:Fan motor;Frequency:50/60Hz;
Supply Ability:80000 Piece/Pieces per Month;Product Name:AC Fan motor;
Weight:480G;





UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan



Product Description







Size 120*120*38mm Cooling Fan (Length* Width *Thickness)
Rated Voltage

AC FAN (110V  120V   220V   240V   380V )

Main Parameter

Rated Speed:     2600 RPM      (At rated Voltage,Measured after 3Mins.)
Air Flow:      91CFM       (Maximum In Free Air)
Air Pressure:     6.7 mmAq    (Maximum When Air Flow = 0)
Noise Level:      40 dBA        (At Rated Speed)

Operating Temperature



& Life expantacy

Ball bearing:  -30°C to +75°C      @ 50000hours at 40°C

Cycle Seal Bearing:  -10°C to +70°C     @ 40000hours at 40°C

Sleeve bearing: -10°C to +70°C       @ 30000hours at 25°C

Optional Function PWM Control / FG Tacho / RD Alarm / Auto-restart / Polarity Protection
Wire & Connector & Tube

Wire length & Connector model ( as required )

Environmental

Operating Temperature :    -10 ~ +70 ℃
Storage Temperature :    -40 ~ +75 ℃

Operating Humidity :    35% ~ 85%RH

Storage Humidity :    35% ~ 85%RH







Related Fan

UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan



Product Showing



YCCFAN RELATED PRODUCT:

DC Axial Fan

DC Blower Fan

2006

3507

2010

4010



3010



5015

4010



5020

6038



6015

8025



6028

8038



7530

9225



9330

9238



9733





UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan



Company Information

Shenzhen YCCFAN Technology Co.,Ltd

                                       www.yccfan.com



DC Axial Fan (20mm - 172mm) : 3v / 3.3v / 5v / 12v / 18v / 24v / 36v / 48v all voltage aviliable



AC Axial Fan ( 60mm - 200mm) : 110v / 125v / 220v / 240v  AC Voltage



DC Blower Fan( 20mm - 120mm) :  As required



EC FAN ( 60mm - 120mm) : 110v - 220v both voltage





Founded in 2011,YCCFAN located in Shenzhen of China .  7000M2 plant , 300+ staff   , 50000pcs daily capacity.



R&D equipment



Work shop

Prodution equipment



Since 2017,YCCFAN investes own injection factory.



Certificate:



Corporate certificates:   ISO9001:2008     ,   ISO14001:2004         , IATF16949:2016



Product certificated: UL/CUL,CE,RoHS, SGS


Patents:  CycleSeal bearing system



Client Recognition:   Panasonic,Mitsubishi, Sony GP





UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan



Our Services



1 : Customized Fan

YCCFAN provide cooling solution for cusomter's special product and requirement.



Application industry :



Thanks for all customers support,we will do better.

Panasonic , Sony , Mitsubishi , Fuji , Midea, HYUNDRI,SENSICA, PLANTOWER, KSTAR , INVT ,INFY POWER etc.







2 : Quality Assurance



a : 100 %  testing before the fan leave our factory

b. Good after services to every customer



c. Inspection 100% raw material for quality, UL94V-0 plastic are compliance to RoHS SGS standard.

d.Warranty : Two-year for ball bearing fan, one-year for sleeve bearing fan





3 : Good Reputation & After-sales Service



Focus on customer , Grow together, YCCFAN always do the best.



If any requirement, pls mail Teresa directly via oversea02 at yccfan.com

Skype: teresa3573   Wechat : T1036693615

Tel : 86-13631613620





Trade Show



YCCFAN attend exhibition on HK,SZ,USA,TAIWAN,GERMANY ,SHANGHAI EACH YEAR.













 UL CE CCC 4inch 12CM Fan motor 120x120x38mm 220v 230v 240v AC axial flow brushless Cooling Fan





FAQ

Q1: How to choose a DC fan ?
A1: Consider main point:size,voltage,speed/airflow,lifespan

B1: Consider your product inlet&outlet,choose axial fan or blower fan.
Axial fan blows air along the axis and blades,while blower fan blows air from the fan hole.
Airflow of axial fan is powerful, while static pressure of blower is stronger.


Q2: Can you tell me the normal DC fan Model?

A2: 20*20*6mm 20*20*10mm  25*25*10mm 30*30*7mm

30*30*10mm 40*40*10mm  40*40*20mm 40*40*28mm

50*50*10mm  50*50*15mm 50*50*20mm

60*60*15mm  60*60*25mm  60*60*38mm  70*70*15mm

80*80*15mm 80*80*25mm  80*80*38mm  92*92*25mm  92*92*38mm

120*120*25mm  120*120*38mm

150*150*51mm  172*150*51mm  172*51mm

We have more model,just e-mail me to get details...


Q3: Can YCCFAN make special design fan ?
A3: Sure, just tell me the request deetails, our R&D will provide the solution.


Q4: Can I get samples before order?
A4:Definely,that's our suggestion too.when mass production,performance is compliance to sample checked.
Now,contact Teresa Yu to get more information.
