GALVANIZED DIN764 LINK CHAIN

Supplier: Qingdao Powerful Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Linda Zhou
Price: $1.00 / >=100 meters
Min. Order: 100 meters

Click here to contact

Product details

Packaging Detail:	iron pallet,iron drum,box and others;	Size:	4mm-33mm;
Payment:	T/T;	Place of Origin:	Shandong China;
MOQ:	5tons;	Supply Ability:	100 Ton/Tons per Month;
Packing:	Gunny Bag;	Material:	carbon steel or others;
Port:	Qingdao;	Specification:	DIN764;
PORT:	Tianjin Qingdao Shanghai Ningbo;	Function:	Conveyor Chain;
Model Number:	DIN764;	Surface treatment:	Electro-galvanized;
Finish:	Zinc;	Product name:	DIN764 chain;
Name:	DIN764 chain;	Package Preview:	;
Payment Terms:	L/C,T/T,discussion;	Structure:	Welded Chain;
Standard or Nonstandard:	Standard;	Brand Name:	powerful;

Product Description

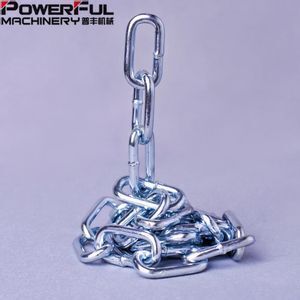

Powerful Machinery	DIN764 LINK CHAIN
Quick Details
• Size - 4mm-33mm • Material - carbon steel • Surface - Galvanized,painted and others • Technology - welded • Safety Factor - 4:1
Introduction
• this products is used for lashing, pullling and other usages.

Data Sheet

Powerful Machinery	Specifications
DIN 764 Link Chain

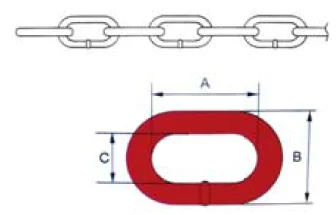

Size		Inside Length (A)		Inside Width (C)	Outside Width (B)	Length per 11 Links		Weight per 100M	Breaking Load	Test Load
MM	+/-MM	MM	+/-MM	MM	MM	MM	+/-MM	KG	KN	KG
4	0.20	16	0.30	5	14	176	1.60	31.3	7	400
			0.20				0.90
5	0.20	18	0.40	7	18.2	198	1.80	51.4	11.8	680
			0.20				1.00
6	0.20	21	0.50	8	21.5	231	2.00	74.0	16.5	850
			0.20				1.10
8	0.20	28	0.50	11	29	308	2.20	131.5	32	1680
			0.30				1.20
10	0.30	35	0.60	14	36	385	2.70	200	50	2630
			0.30				1.50
13	0.40	45	0.70	18	47	495	3.50	350	80	4200
			0.40				2.00
16	0.50	56	0.90	22	58	616	4.30	520	125	6700
			0.50				2.50
18	0.80	63	1.00	24	65	693	4.70	650	160	8400
			0.50				2.80
20	1.00	70	1.10	27	72	770	5.40	820	200	10000
			0.60				3.20
23	1.20	80	1.30	31	83	880	6.20	1100	250	13000
			0.70				3.50
26	1.30	91	1.50	35	94	1001	7.00	1400	320	16000
			0.80				4.00

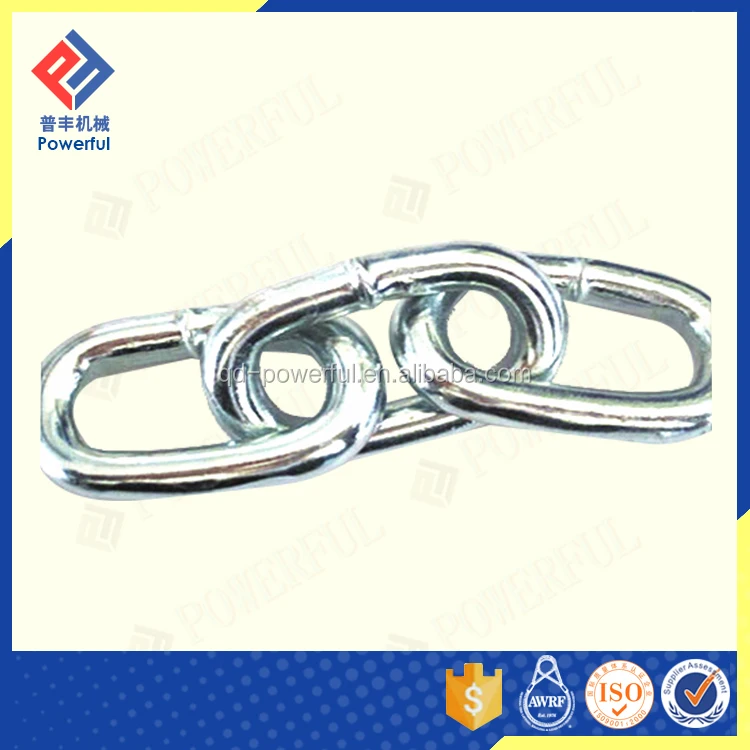

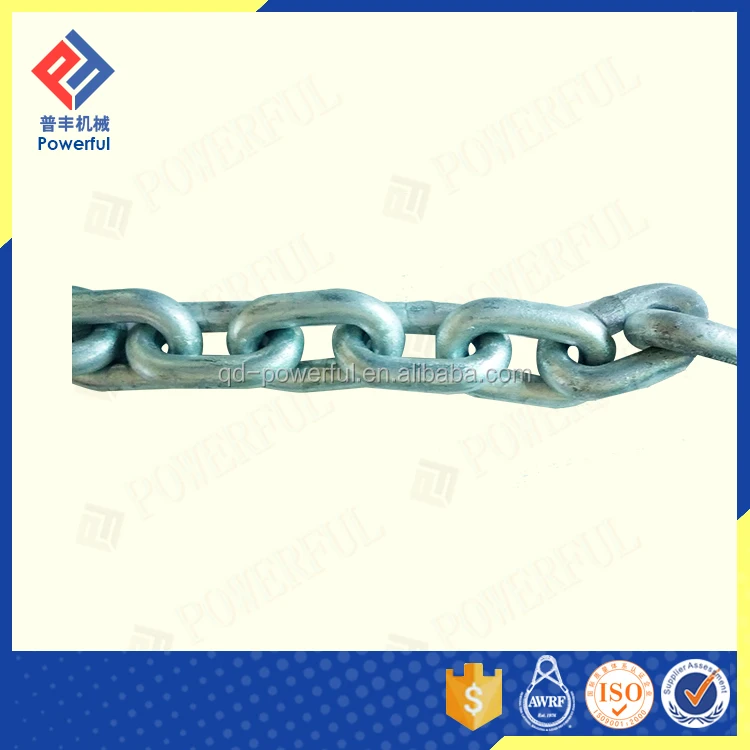

Product Illustration

Powerful Machinery

Product Illustrations

Production

Powerful Machinery

Production Process

Powerful Machinery

Surface treatment

Powerful Machinery

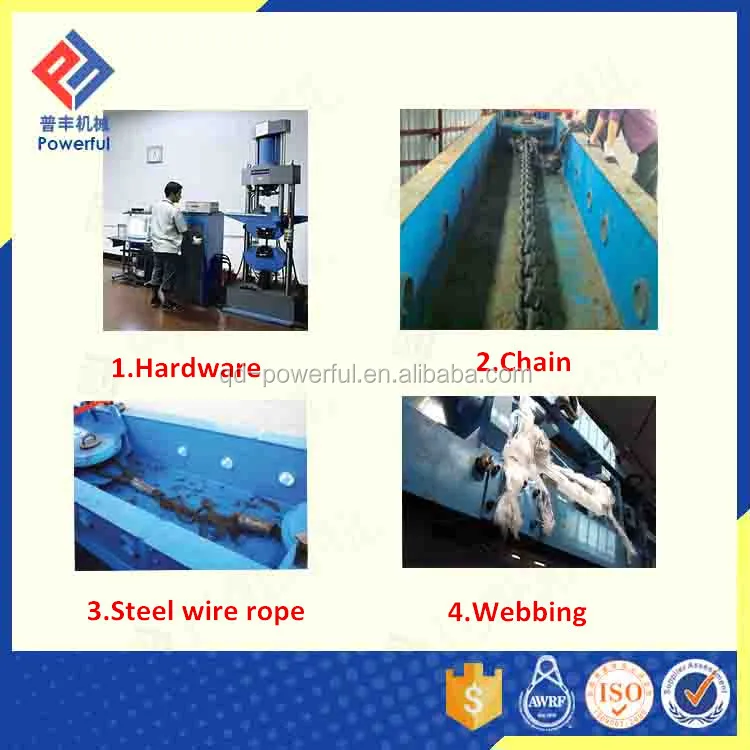

Products testing

Packaging & Shipping

Powerful Machinery

Package and Transportation

Company Information

Powerful Machinery

Our Factory

• We started as an anchor chain factory, Yongxiang Anchor Chain Co., Ltd, about 20 years ago in Qingdao, China, and gradually developed into a big manufacturer of marine hardware supplies.

• At the same time, to meet the growing demands from our clients in new business areas, we created our trading brand - Powerful Machinery, and expand our scope to rigging hardwares and fasteners, and other related hardware by setting up solid partnership with other factories.

• Now we're proud to say that POWERFUL MACHINERY has ranked as top supplier on marine & rigging hardwares in China.

Powerful Machinery

Who are we?

Qingdao Powerful Machinery Co., Ltd. is located in Qingdao, China,where is very close to the Qingdao port and airport.

Eastablished for many years, we specializing in producing and exporting Rigging hardwares, high grade chains, blocks & pulleys, steel wire rope, stainless steel and so on.

Our products are all designed, manufactured and assembled under strict quality control. We have a professional QC team to do inspections.

And we can offer favorable prices, good quality and one-stop sourcing service. We are all ready for every customer and to be the pioneer is our mission.

All members of our company will be very honored if you contact us. We are looking forward to cooperating with you in the near future.

Powerful Machinery

Our Office

Powerful Machinery

Marketing Campaign

• Our products, such as high grade chains, rigging hardwares,blocks & pulleys, steel wire rope, stainless steel products, are popular in Europe, U.S.A, most Asia areas for its first class quality and competitive price.

• By offering one-stop solution service, our experienced customer service team can assist you from inquriy to delivery.

FAQ

Powerful Machinery

FAQ

1. Are you a factory or trading company? We started as an anchor chain factory about 20 years ago and gradually developed into a big manufacturer in marine supplies. At the same time, to meet the growing demands from our clients in new business areas, we expanded our scope to rigging hardware and fasteners, and other related hardware by setting up solid partnership with other factories. Now we’re proud to say that POWERFUL has ranked as a top supplier on chains & rigging hardware in China.2. Where is your factory located?

Our factory is located at #37, Wenhua Road, Jimo, Qingdao City, Shandong Province, China.
You’re welcomed to visit us any time for future cooperation.

3. What products do you supply? As mentioned above, Qingdao Powerful Machinery is capable of supplying:
♦ all kinds of marine supplies
♦ chains
♦ rigging hardwares
♦ fasteners
♦ and related hardwares4. Do you produce them all?

We produce all kinds of chains in our factory, other products in our partner factories. By establishing cooperation agreements & capital injection, we obtained a wide & solid supply chain to meet your demands.

5. How do you control quality? By setting up quality control points and inspecting at each production process with strict standards, the defective products will be eliminated before packaging and delivery. For partner factories, we use a comprehensive system of quality standards to evaluate the
production line. Also our professional QC team will implement the onsite check and finish product check before delivery.6. Why are you more trustworthy than the other factories? Quick Response:

We feedback your questions immediately 24 hours a day, 7 days every week.
Competitive Price:
We can provide a more competitive price based on the same quality level by more efficient management in every process.
One-stop Solution:
Just say what you need, and we’ll figure out a one-stop solution for your business to save your time and effort.

7. How do I pay? We accept 30% payment in advance & 70% before shipment for the first cooperation, either by T/T or L/C.8. How do I receive the goods? With our professional transport agents, we are capable of delivery products to most ports all over the world. Door-to-door service is also supported.

FOB, C&F, CIF are most commonly used trade terms.

Our Services

Powerful Machinery

Our Services

We Supply	We Provide
• Marine Hardwares	• OEM Services
• Chains & Chain Fittings	• ODM Services
• Wire Rope & its Fittings	• Sourcing Services
• Other Rigging Hardwares	• On-Site QC Services
• stainless steel products	• Procurement Services
