Applicable Industries: | Food & Beverage Factory,Food & Beverage Shops,Advertising Company; | Supply Ability: | 1000 Set/Sets per Month; |
Brand Name: | Eco-Betya; | Weight: | 2.2T; |
Voltage: | 380V; | Packaging Detail: | Wooden Case,Packing Size: 2950*1320*1500mm; |
After-sales Service Provided: | Field installation, commissioning and training; | Dimension(L*W*H): | 3600*1400*1700MM; |
Payment Terms: | L/C,T/T; | Application: | Food; |
Warranty: | 1 YEAR; | Type: | Boxing Machine; |
Packaging Material: | wood; | Place of Origin: | Zhejiang China; |
Port: | NINGBO,SHNAGHAI,WENZHOU; | Driven Type: | HYDRAULIC; |
Automatic Grade: | Automatic; | Condition: | New; |
Packaging Type: | cartons; |

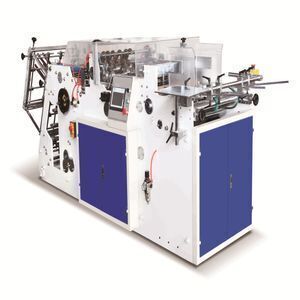

One time fast food box making machine
TECHNICAL DATA | ||||
Item | Description | |||
Feeding Raw material | Cardboard:200-600g/m2 | |||
Corrugated paper (Max):1.5mm | ||||
Machine Speed | 60~160pcs/min | |||
Box length | 100~450mm | |||
Degree: | 5-40degree | |||
Box width | 100~580mm | |||
Box height | 15~200mm | |||
Votage | 380V50HZ | |||
Machine layout | L3600*W1400*H1700MM | |||
Machine Weight | 2.2T |
CONFIGRATION | ||||
Mechanical parts | Configuration name | Brand | Specificaition | Qunatity |
Feeding part | Belt | CHINA | 2 | |
servo motor | DEITA | 1 | ||
Machinical shaft | 45 | 20 | ||
Deviation Correction Device | 1 | |||
Automatic stop without material | 1 | |||
Electrical Appliances | Relay | AUTONICS | BM200-DDT | 1 |
Pneumatic components | AIRTAC | 2 | ||
Electrical components/switches | CHNT | NXB-638 | 7 | |
Frequency converter | SIEMENS | 1 | ||
Electric machinery | CHINA | YE2-112M-4 | 1 | |
PLC | SIEMENS | 1 |
Charges: | ||||
1.The seller will send 1 engineer to install, test the production line and train customers’ workers | ||||
in buyers’ factory.It will take 1 week for whole installation and training. | ||||
2.The buyer should cover engineers’ salary and visa cost for 7days. Each date 80 USD/DAY.And the buyer should cover Round air tickets, accommodations, transportation in buyers’ country, food, medical care, safety cost, and related cost happens in buyers’ country. Also, the buyer should prepare enough labor, electric wire outside the control panel and tools for installations. | ||||
Guarantee: | ||||
1.Guarantee period for the delivered equipment will be 12month after completion of erection but not later than | ||||
12months after shipment. In case any item proves to be defective and the damage is confirmed by seller’s | ||||
technicians within this period, the seller will at their choice either send engineer to repair or supply a new one | ||||
for replacement free of charge on the basis of FOB delivery. | ||||
2.The above item does not include the parts, which have regular spares or the parts damaged from normal wear, abnormal | ||||
operation, improper maintenance and inadequate civil works. The seller is not liable for any production loss under any | ||||
circumstances. | ||||
Packing: | ||||
As per export standard, they will also be treated before delivery against damage and rusting.. |
