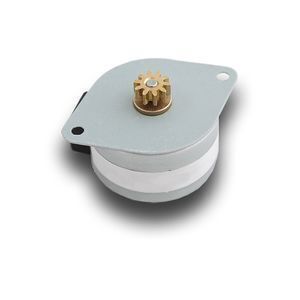

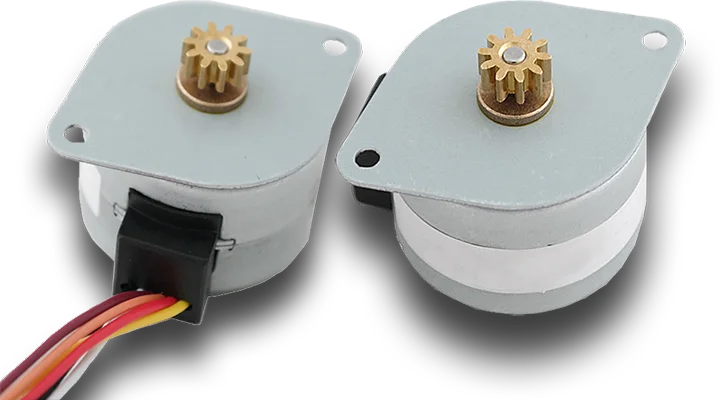

35mm 12v/24v stepper motor 7.5 degree stepping motor used for coffee machines

Product: 35mm 12v/24v stepper motor 7.5 degree stepping motor used for coffee machines

Product Application: Printer, fax, copier, camera, monitor head, robot,smart lock and injector etc.

This product is mainly used in printers, fax machines, copiers, camera sets, monitoring heads, etc. At the same time, other fields that require precise control can be realized, and the torque can be increased by configuring the corresponding reduction gear box, and the torque can be converted into a linear motion by the transformation of the linear motion. Since the open loop control is realized, low-cost position control is realized. Widely used in gas valves, water purifier valves, instruments and other fields of automatic control precision control. At the same time, the external wiring part can use four (or six) binding posts (light pins) or connecting wires according to customer requirements, or FPC FFC, etc. The output part can use gears, pulleys, V-grooves and other various methods. The shape of the mounting plate and the angle of the outlet can be adjusted according to customer needs! Since the voltage resistance of the motor and the driving method are different, the final performance of this type of motor is not the same! Our team has more than 10 years of stepper motor design, development and production experience, so we can achieve product development and auxiliary design according to the special needs of customers! Customer needs are our efforts, please feel free to contact us! This product can be divided into 4 sub-categories according to the thickness and step angle. Refer to the following instructions respectively. At the same time, these four types of motors can be bipolar (four power wiring) and unipolar (six or five power wiring). Driven by means of driving, our company can also provide driver board for customers.

1. The step angle is 15 degrees and the motor thickness is 22mm.

2. The step angle is 7.5 degrees and the motor thickness is 12.5mm.

3. The step angle is 7.5 degrees and the motor thickness is 15.5mm.

4. The step angle is 7.5 degrees and the motor thickness is 22mm.

If you have any other types of motors you need, you can let us know.

We can customized according to your specifications.

Each motor is packed in a foam box, 3pcs in a carton and 45 cartons in a pallet. If you have any special needs, please let us know, we can design packaging according to your request.

McMaster Electrics Co., Ltd is a professional company specializing in electrical and mechanical products, providing expert solutions and technical support. Our products include electrical motors, gear and gearboxes, transmissions and drive solution, HVAC fan/blower, controllers, pumps and relative components. We have been a reliable business partner for our North American and European customers since 2001. We provide high quality electrical motor, gearbox, fan/blower, controller, pump, ect. We also provide expert solutions and technical support to help your projects to be more competitive and successful. We have Headquarter and sales/service office in US, technical support/service company in China, Joint Ventures in Changzhou area and long term strategic manufacturing partners all over China. Contact us for your inquiry and you will have a pleasant and satisfied experience working with us in return.

1. Q: Can you provide detailed technical data and drawing?

A: Yes, we can. Please tell us which product you need and the applications, we will send the detailed technical data and drawing to you for your evaluation and confirm.

2. Q: Can I visit your factory before we place an order?

A: Yes, you are welcome to visit our factory. We are very pleased if we have the chance to know more about each other.

3. Q: How to control the products quality in your company?

A: With professional quality team, advanced product quality planning, strict implementation, continuous improvement, the quality of our products is well controlled and consistent.
