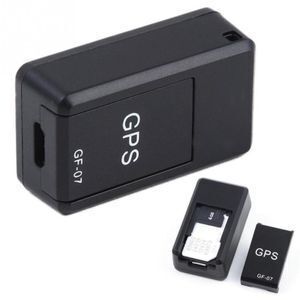

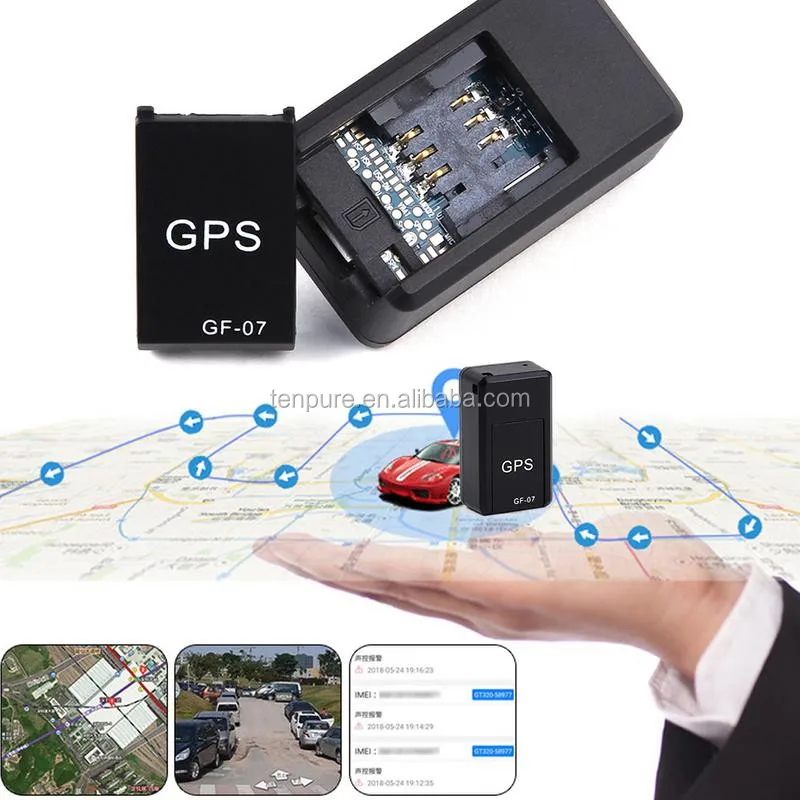

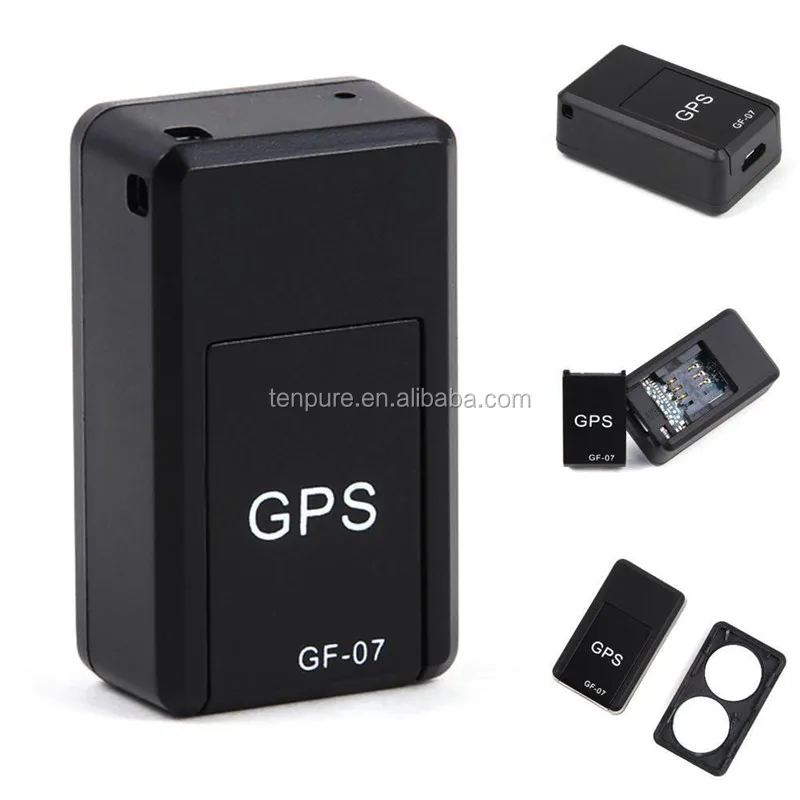

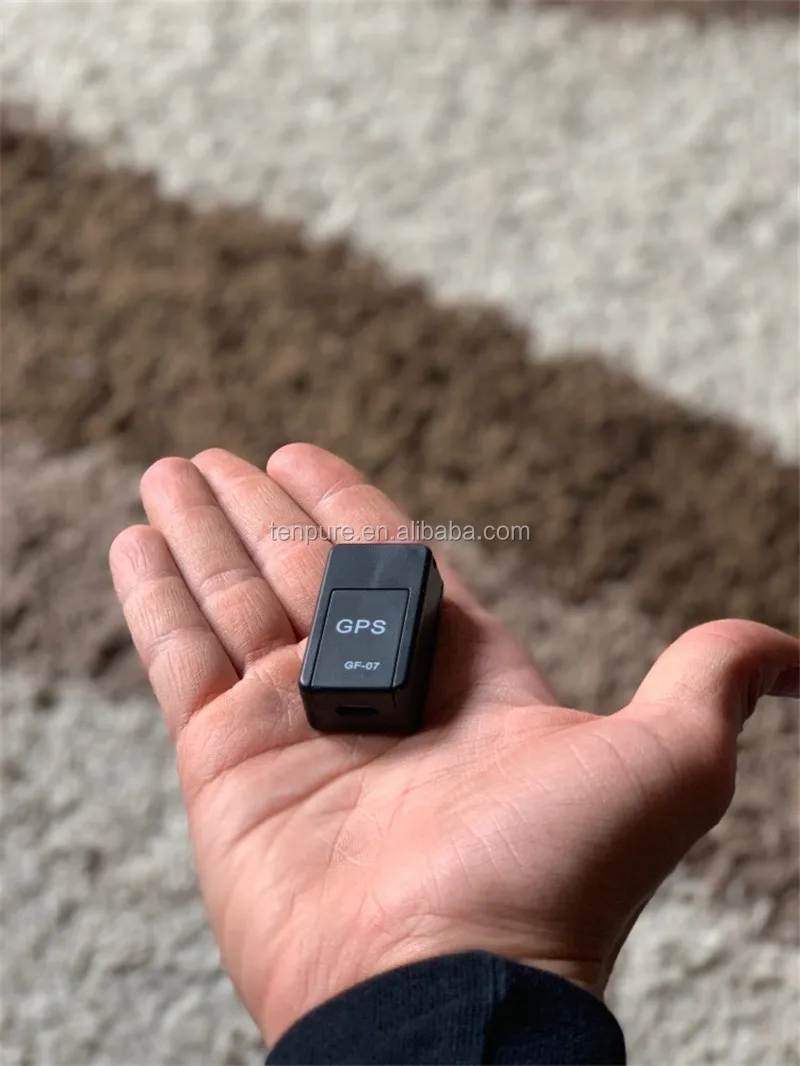

Mini GF-07 GPS Long Standby Magnetic SOS Tracking Device For Vehicle Car Personal Location Tracker Locator System

Supplier: Shenzhen Tenpure Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Steven Sun
Price: $2.20 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Application:	car gps tracker micro gps tracker;	Item:	child gps tracker gps tracking device;
Size:	3.51.42CM;	Feature:	mini gps tracker gf-07 personal gps tracker;
Selling Units:	Single item;	Packaging Detail:	package box;
Type:	gps tracking device;	Model Number:	GF-07;
Tracking system:	smart gps tracker gps tracking device tracker;	Place of Origin:	Guangdong China;
Warranty:	6 months;	Brand Name:	Tenpure;
Use:	motorcycle,AUTOMOTIVE,Personal;	Single package size:	10X9X4 cm;
Color:	Black;	Function:	gps mini tracker gps chip tracker;
Package Preview:	;	Keyword:	gps tracking car gps tracking chip;
Product name:	vehicle gps tracker bike gps tracker;	Name:	mini gps tracker kids gps tracker;
Single gross weight:	0.25 KG;

Ultra Mini GF-07 GPS Long Standby Magnetic SOS Tracking Device For Vehicle/Car/Person Location Tracker Locator System

GF07 Mini GPS Tracker Car GSM GPRS GPS Locator Platform SMS Tracking Alarm Sound Monitor Voice Recording Track Map locatio

Feature:
1)appearance size: 3.5cm*2.0cm*1.4cm (L*W*H)
2)charging input InputAC110~220V50/60Hz
3) charge output: 300-500mA OutputDC5.0V
4) machine battery: 400mAh Li-ion battery 3.7V
5) standby time: 12 days. Working time 4-6 days
6) mini TF card expansion card;
9) continuous calls: 150-180 minutes
10) network system: GSM/GPRS
11) Storage temperature: -40 C to +85 C
12) working temperature -20 Cto +55 C
13) humidity range non-condensing 5%--95%
14) GPRS:Upload60, TCP/IP
15) working voltage: 3.4 - DC 4.2V
16) standby current:: = 2.5mA
17) open sound control: current is 30mA
18) the current call: = 150mA
19) GSM positioning time: 25 seconds
Basic parameters: band GSM850/900/1800/1900MHZ
Support countries: China UK France Germany Holland Italy Brazil Spain Portugal Poland Denmark Russia Turkey Thailand Hungary Greece Indonesia Malaysia Vietnam Pakistan Burma Kazakhstan Arabia Mongolia Dubai etc.......

Package includes:
1 X GSM device
1 X USB Cable
1 X retail box
1 X User manual

Instructions:

1. Preparation: a SIM phone card and mini memory card,

2. Power on: Open the card cover and insert the SIM card in the direction indicated. When the mini memory card is inserted, the product will automatically turn on the red light and flash off 4 times, and enter the normal standby state after 30 seconds. [Note if you do not read the memory card and re-plug it]

3. Indicator: The power-on indicator is always on 4 times, and the low-level indicator is flashing.

4, bind the master control number; use the mobile phone to edit the text message 000 to send to the alarm locator number, then the local machine responds to the mobile phone a text message; Set; bind + master control number

5. Separate recording; use the mobile phone to edit the SMS 555 and send it to the alarm locator number. Later, the local machine responds to the mobile phone with a text message; [Snd; recording has started]

6. Voice control callback; use mobile phone to edit SMS 666 to send to the alarm locator number, then the machine responds to a mobile phone text message; [DT; voice monitoring has been successfully set, alarm call back].

When the sound around the alarm locator is greater than 40 decibels, the alarm locator will automatically call the previously set mobile number.

7.GPRS positioning query: use the mobile phone to edit the SMS 777 and send it to the alarm locator number. Later, the local machine responds to the phone with a Chinese location and the Google Maps link. After the phone opens this link, the location map and text address description will appear. The location is more accurate.

8. Sound inquiry around the product: directly dial the number of the card in the alarm locator. After a few seconds, the sound around the alarm locator can be heard (the alarm locator itself will not emit any sound and light in the query)

9. Locating the track query; use the mobile phone to edit the short message 102 and send it to the alarm locator number. Afterwards, the machine replies to a mobile phone [account, password], and logs into the website http; // gpsui.net

10. Positioning time tracking; can be operated on the computer platform.

11. Delete the contents of the memory card; use the mobile phone to edit the SMS 445 and send it to the alarm locator number. Afterwards, the local machine responds to the mobile phone [TF, the cleaning is successful, the current capacity is available]

12. Host status; use mobile phone to edit SMS 888 and send it to the alarm locator number, then the machine will reply to the mobile phone with a text message; [All functions of the host open or close the battery capacity binding number, signal strength, boot frequency, GPRS TF card Capacity, etc.].

13. Restart the host; use the mobile phone to edit the SMS 999 and send it to the alarm locator number, and wait for 1 minute to recover successfully.

14. Close, the information has the display stop function of the remaining power; use the mobile phone to edit the short message 444 to send to the alarm locator number, and then the local machine responds to the mobile phone, [Reset; all tasks have been canceled]

15. Power Query: There is power in the information you respond to each time you locate it.

ABOUT US

TENPURE is a highly professional and experience of exporter of trading products in China.

Why choose us:

Since 2002, with over 15 years international trading experience.
Rich experience in OEM and ODM order, help you realized your own design.
Lead time: 25 business days.
Small order is welcome.
Quick response, 24*7 service.
Well-trained and experienced staffs to answer all your inquiries in fluent English.

Price! Quality! Service! We always the best !!!

welcome all partners to join us for mutual benefits cooperation. Thanks!!

After-Sales Service

Please contact our after-sales service department when problems arise.

Process:	Please provide the copy of PI and describe the problems appeared.
Slight Problem:	Please send the proof to our after-sales department, we will reply within 2 days.
Serious Problem:	1.We will dispatch our quality and problems appraisers to make a confirmation 2.Have a negotiation of the compensation and sign agreements 3.Our after-sales department will perform the duties as the agreements.
Warranty:	6 months
