MPT 350W 550W 750W General Purpose Bench Drill Press

Click here to contact
Product details
Drill Type:bench drill press;Port:NINGBO / SHANGHAI;
Packaging Detail:Color Box;Supply Ability:50000 Piece/Pieces per Month;
For Use On:General purpose;Payment Terms:L/C,D/A,T/T;
Application:not rated;
Product Catalogue
Topsale Products
POWER TOOLS
GARDEN TOOLS
HAND TOOLS


Product Description

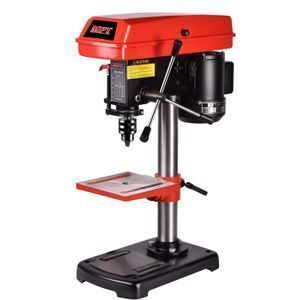

MPT 350W 550W 750W General Purpose Bench Drill Press

PRODUCT NUMBER: MDP1303  MDP1603  MDP2003
CATEGORIES:POWER TOOLS

SPECIFICATIONS
ITEM NO.
MDP1303, MDP1603, MDP2003
Rated Voltage
220-240V~/50Hz
Max Drilling Diameter
13mm(1/2''), 16mm(5/8''), 20mm(3/4'')
Motor Power
350W, 550W, 750W
Chuck Capacity
1.5-13mm, 3-16mm, 5-20mm
Spindle Travel
50mm, 80mm, 85mm
Class Of Speed
5, 16, 16
No-Load Speed-50Hz
620-2620r/min , 180-2770r/min, 180-2770r/min
Spindle Taper
B16, MT2, MT2
Max. Distance From Spindle Axis To Surface

Of Column
105mm, 162.5mm, 180mm
Max. Distance From Spindle End To Surface

Of Table
220mm, 450mm, 620mm
Max. Distance From Spindle End To Surface

Of Base
300mm, 630mm, 810mm
Swing
210mm, 325mm, 360mm
Table Size
160x160mm, 290x290mm, 290x290mm
Base Size
300x195mm, 420x250mm, 420x270mm
Column Diameter
46mm, 72mm, 72mm
Height
580mm, 980mm, 1200mm
Net Weight/Gross Weigh
16/17kg, 42/45kg, 58/60kg
