Swimming Pool Equipment Large Fiberglass Sand Filter

Supplier: Guangzhou Fenlin Swimming Pool & Sauna Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Jenny Lee
Price: $59.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

MOQ:	Low Moq;	Condition:	New;
Flow:	105-950m3/h;	Certification:	Customized;
Supply Ability:	500 Piece/Pieces per Month;	Port:	Huangpu,Guangzhou;
Presure:	2.5kg/cm2;	Power(W):	Customized;
Voltage:	Customized;	Filter area:	0.13-1.54m2;
Warranty:	1 YEAR;	Weight:	Customized;
Pipe size(inch):	3-6;	Name:	Orininal swimming pool sand filter;
Dimension(LWH):	Customized;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,restaurant,HOME USE,Retail,Printing Shops,Construction works ,Food & Beverage Shops;
Sand's weight:	30-900kg;	Packing:	Carton Box;
Place of Origin:	Guangdong China;	Brand Name:	FINN Forest;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,Paypal/Trade Assurance/Wechat/Escrow/Alipay/Credit Card/Cash;	Packaging Detail:	carton;
Product Name:	Swimming Pool Equipment Large Fiberglass Sand Filter;	After-sales Service Provided:	Online support;
Logo:	Customized Logo;

Swimming Pool Equipment Large Fiberglass Sand Filter

Product Description

Description:

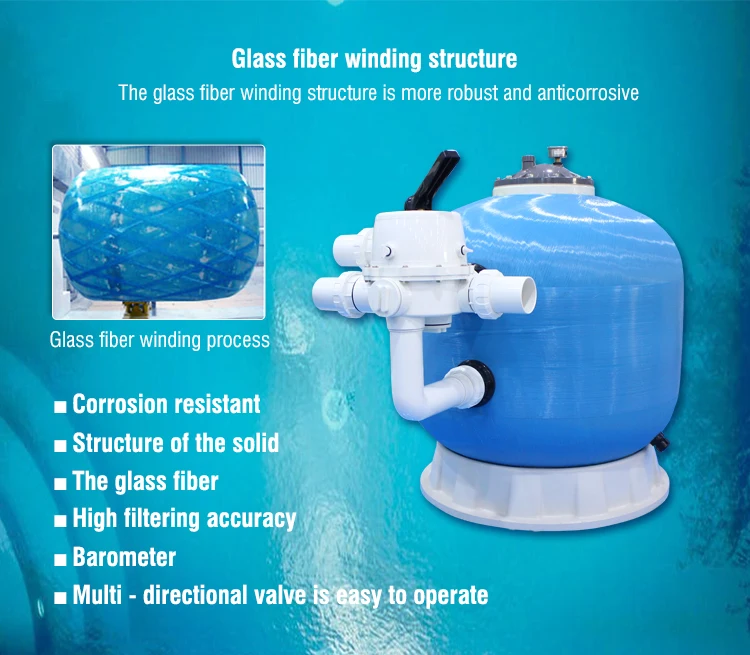

Series flange side mount valve sand filters will provide clean water for commercial users. They produce more filtered water with less pump horsepower. The fiberglass winding design enables the filter to be durable, deforming-proof and corrosion resistant.

Large Radar Sand Cylinder Water Filter Feature

--Fiberglass tank,deforming-proof, corrosion-resistant and abrasion-proof.
--Multi-port valve for easy operation.
--Uniquely designed distribution system makes stable and efficient water flow.
--Besides silicon sand, filtration media can use other materials as well.
--Active carbon for filtering away odor and an organic compound.
--Soft water resin for softening and filtering away the minerals.
--Clean water resin for filtering away organic compound color, fluoride, and algae.
--Nitrate selectable resin for fleshing the fishpond.
--Easy installation and maintenance free.

Product Display

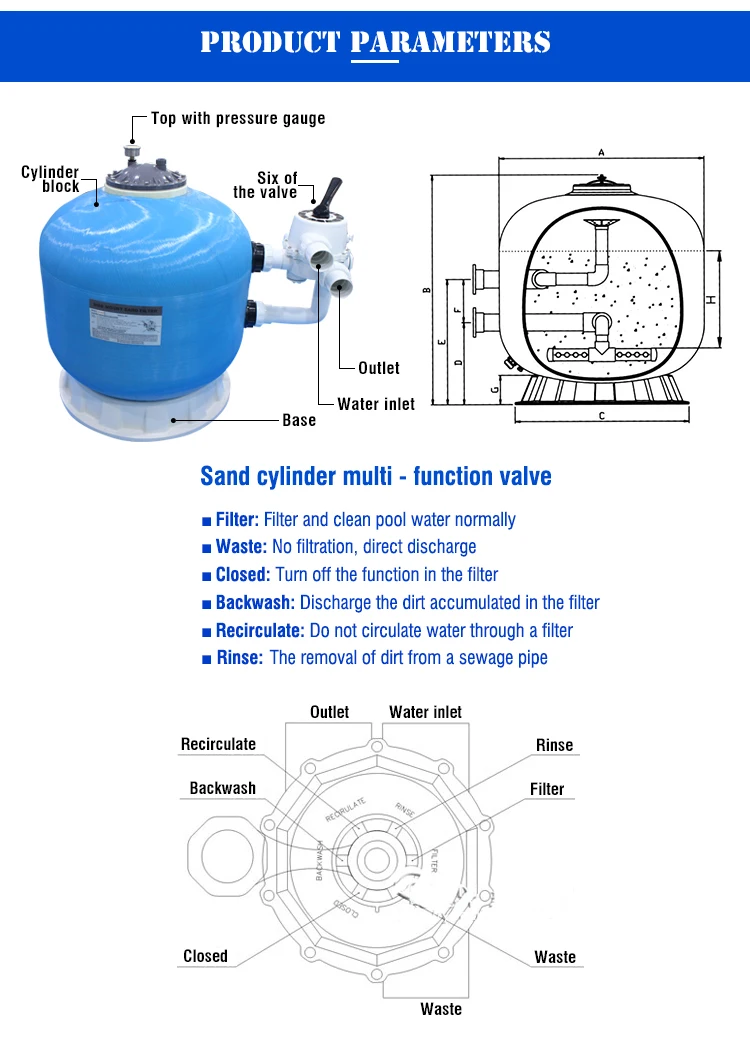

Technical Characteristics

Model No.	Tand dia (mm)	High (mm)	Pipe size (inch)	Filter area (m2)	Silica sand (kg)	Flow (m3/h)	Pressure (kg/cm2)
SF-1200	1200	1450	3	1.14	1100	60	2.5
SF-1400	1400	1520	4	1.56	1900	76	2.5
SF-1600	1600	1760	4	2.01	2600	100	2.5
SF-1800	1800	1940	4	2.54	3500	129	2.5
SF-2000	2000	2420	6	3.14	4100	157	2.5
SF-2400	2400	2520	6	4.34	8900	218	2.5
SF-2500	2500	2680	6	4.91	11000	26.8	2.5

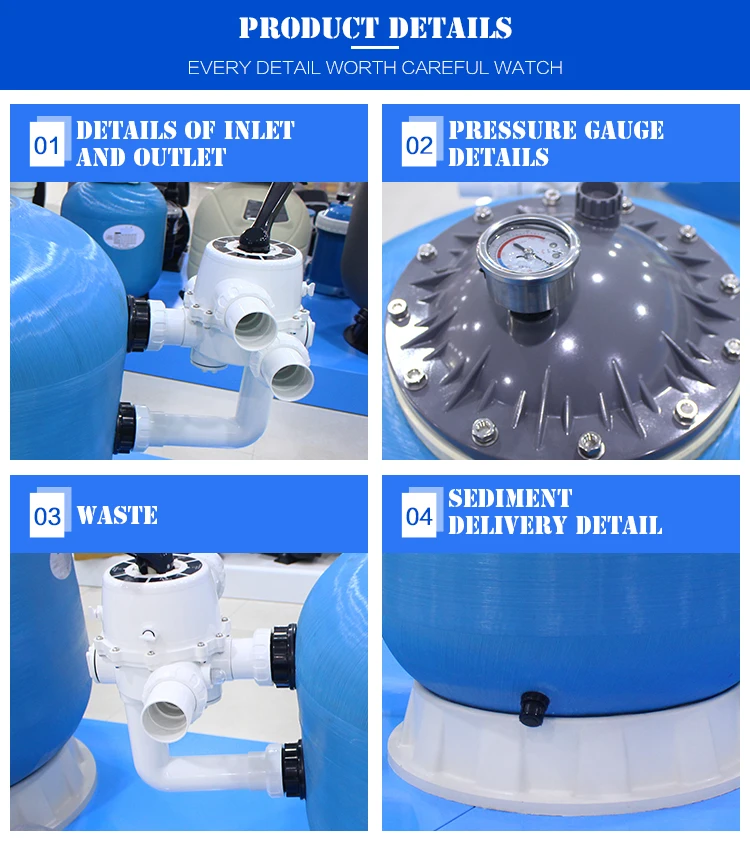

Detailed Images

Advantages:

Large pressure sand/ water drain for rapid winterizing or servicing;
Materials used are dependable and are suitable for all-weather performance;
Easy-to-use multiport valve lets you select any of the valve/filter operations with a simple lever-action;
UV-resistance surface allows the filter to work under direct sunlight;
Quick assembly and precise alignment of components;

Other Design Of Sand Filters
