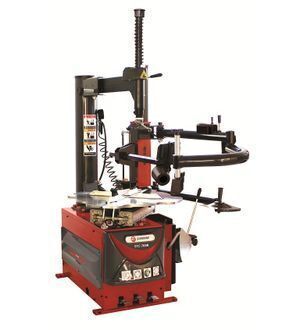

Automatic Tire Changer with Assistant Arm STC768R

Product details
Place of Origin:Shandong China;Single package size:112X86X92 cm;
Brand Name:SUNSHINE;Motor Power:1.1kw/0.75kw;
Package Preview:;Warranty:1;
Power Supply:110V/220V/380V;Inside Clamp Size:14"-26";
Packaging Detail:1 unit is packed in 2 ply-wood cases.;Turning Table Speed:6.8r/min;
Operating Pressure:8-10bar;Outside Clamp Size:12"-24";
Model Number:STC768R;Selling Units:Single item;
Max Tire Diameter:1070mm;Single gross weight:303.0 KG;



Features of SUNSHINE tire changer STC768R:

Thicker turntable, dismounting 11”-24” rim and max. tire diameter 1000mm.

Taller vertical post, dismounting max. tire width 300mm.

Rotary Switches use 40A switch, with a pure silver contact, much more durable.

Hexangular axle is made of S41 steel which is strong enough when dismounting 11”-24” stiff tire.

The foot pedal assembly is punching from high quality steel to avoid distortion.

Clamps is casted by high quality alloy steel, hard enough and durable.

Dismounting head is made of special steel material, equipped with bead pressing blocks and bead pressing roller, dismounting low-profile tire without any aid arm.

Equipped with right aid arm HF200A, three pressing positions and tire support plate to dismount flat and large tire easily and also to minimize labor time.

Aid arm uses powerful Φ100mm cylinder.

Related parameters of SUNSHINE brand tire changer:

MOTOR

110V/220V/380V50/60Hz

POWER

1.1KW/0.75KW

MAX TIRE DIAMETER

1000mm

OUTSIDE CLAMPING

11"-22″

INSIDE CLAMPING

13"-24"

MAX. TIRE WIDTH

300mm

OPERATING PRESSURE

8-10bar
