Dongguan PURE-AIR PA-300TS-IQ Dust Collector for Dental with CE Certification

Product details
Place of Origin:Guangdong China;Single package size:49X49X49 cm;
Voltage:110V/220V;Certification:CE;
Size:415*255*450mm;After Warranty Service:Video technical support,Online support;
Condition:New;Brand Name:PURE-AIR;
After-sales Service Provided:Online support;Noise:≤50dBA;
Material:Carbon steel;Single gross weight:22.0 KG;
Package Preview:;Weight:25KG;
Local Service Location:none;Marketing Type:Hot Product 2019;
Product name:Dental Dust Collector;Packaging Detail:1PC Dongguan PURE-AIR PA-300TS-IQ Dust Collector for Dental with CE Certification will pack in 1 strong plywood box, box dimension is 520*440*850mm, G.W: 37KG;
Selling Units:Single item;Warranty of core components:1 YEAR;
Air pressure:2500Pa;Applicable Industries:Manufacturing Plant;
Video outgoing-inspection:Provided;Motor life-time:More than 10000h;
Machinery Test Report:Provided;Showroom Location:none;
Minimum Particle Size:0.3um;Keyword:dust collector for dental;
Warranty:1YEAR;Dimension(L*W*H):415*255*450mm;
Input power:200W;Core Components:PLC;
Air Flow:300m3/h;

Dongguan PURE-AIR PA-300TS-IQ Dust Collector for Dental with CE Certification

MAIN CATEGORIES



Product Description

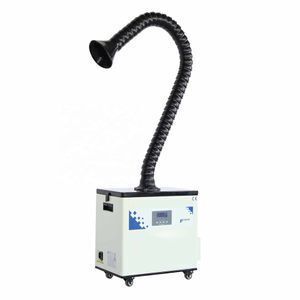

PA-300TS-IQ Fume Extractor with 300m3/h air flow and single freestanding arm;

PA-300TD-IQ Fume Extractor with 300m3/h ari flow and double freestanding arm;
Product Application:

Our PA-300TS/ PA-300TD fume extractor suitable for air purification, fume filtration and dust collection for many different industry:

1) Soldering Process, like Electronics & PCB board producting;

2) Laser marking metal process;

3) Beauty Salon, Nail Salon, Hair Salon;

4) Lab, University, School;

5) Printing & AD processing

6) Food, Pharmaceutical & Tobacco Manufacturing.
Product Feature:

PA-300TS-IQ and PA-300TD-IQ with LCD display and remote control, air flow can be adjustable,it also has warning system to reimind customer to replace filters once they are blocked.
With Low noise, bigger suck power, high filtration performance,nice quality, easily move. You will like it's performance.

They are suitable for air purification, dust collection and adsorb smell/fumes for nail salon,beauty salon, eyelash extensions, hair salon, lab, medical laser processing, laser marking metal, soldering,etc.

PA-300TS-IQ with single fume inlet and single freestanding arm, for one workstation;

PA-300TD-IQ with two fume inlet and two freestanding arm, for two workstation.

both air flow is 300m3/h, air flow can be adjustable during 0m3/h to 300m3/h.

3 layers filtration to ensure filtrate harmful material of the fumes completely,to achieve room air quality standard, protect environment and people's health.
1) 1st layer called Primary filter for remove big particles/smoke/dust.
2) 2nd layer called Medium efficiency F8 class filter to remove smaller particles/smoke/dust. (>=1Mircron).
3) 3rd layer called main filters, Include 1 layer activated carbon filter & 1 layer H13 class HEPA filter to remove small particles, smoke and light smells.

Above Pre-filter, Medium Efficiency Filter & main filter both can replace individually,extend filter's use life and reduce filter replacement cost.

Filter Elements Data
Item
Technical Data
Remark
Pre-filter PA300-01
F5 class Primary filter
Cotton filter pad
F8 Filter PA300-02
F8 class medium efficiency filter
Filter can remove 90% of all particles above 1 microns
HEPA Filter PA300-03-01
H13 class HEPA filter
Filter can remove 99.997% of all particles above 0.3 microns and 95% down to 0.01 micron.
Gas Filter PA300-03-02 Chemical filter Chemical molecular, Oxidant & Active carbon adsorb noxious gas.
Average filtration rate
≥99.7%
It will be a little fluctuation according to different materials.
Blower Technical Data
Item
Technical Data
Remark
Running period
more than 30,000h
One year guarantee
Max. air flow
500m³/h
Electrolic speed contol
Input capacity
200W blower
Low capacity
Filtration Area
2500pa
High filtration rate
Running sound
≤50dBA
Low sound vollume
Input power
110/220V, 50/60Hz
International standard
