big pouch plastic packaging machines

Supplier: Focus Machinery Co., Ltd.
Region: Guangdong, China
Contact: Ms Sue Teng
Price: $9500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE Certification Verified;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Packaging Type:	Bags,Pouch;	Voltage:	220V/50HZ;
Brand Name:	Focus;	After-sales Service Provided:	Engineers available to service machinery overseas;
Weight:	350kg;	Type:	Other;
Automatic Grade:	Automatic;	Place of Origin:	Guangdong China (Mainland);
Type:	Other;	Supply Ability:	30 Set/Sets per Month;
Power:	2.5KW;	Port:	Shunde, Guangzhou, Shenzhen, etc;
Application:	Food;	Dimension(LWH):	160014002100mm;
Packaging Detail:	Export plywood case;	Driven Type:	Electric;
Condition:	New;	Packaging Material:	laminated film,PE film;

VL800

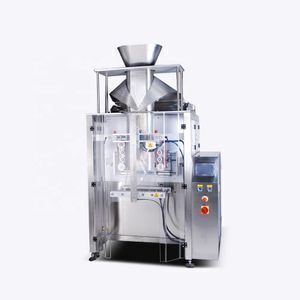

VL-800 Big pouch packing machine

1. Introduction

It is the big type packing machine for big pouch. Not only suitable for granule but also powder products, like rice, sugar, candy, wheat, flour, frozen food, beans, etc.

2. Advantages

* Big type machine that can handle up to 10kg products

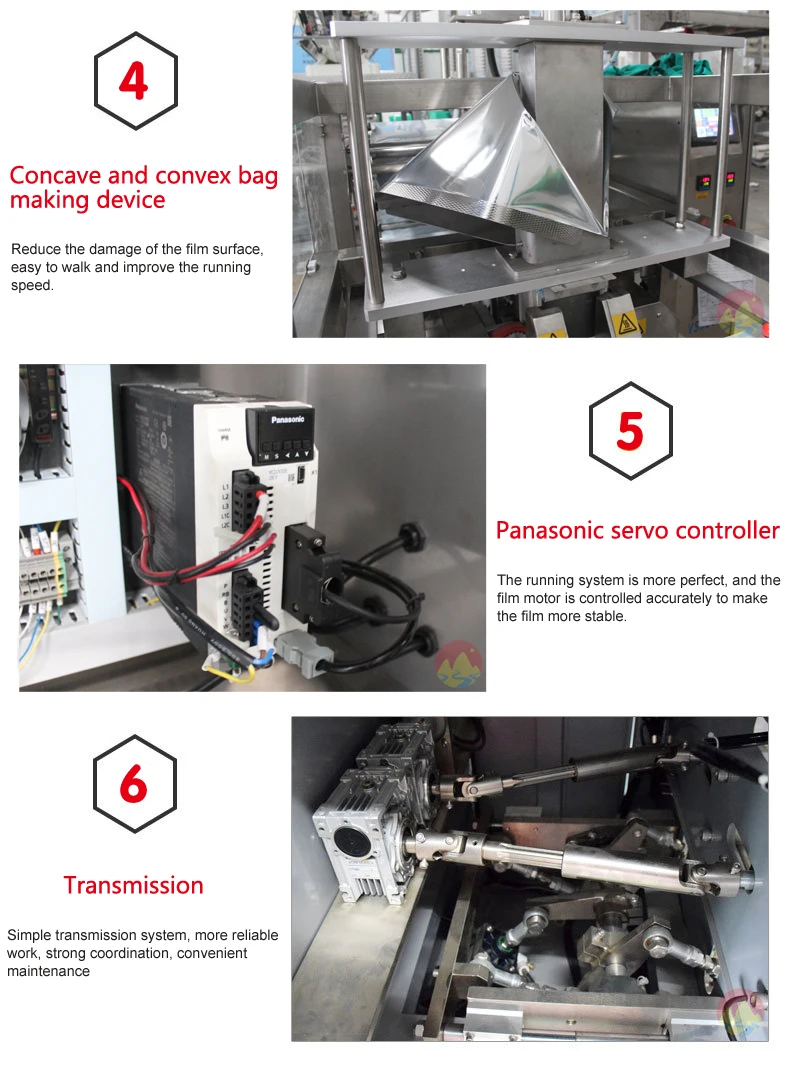

* Double film pulling belt with servo system

* Large range of film width up to 800mm

* Pneumatically operated cross seal jaws

3. Technical parameter

Model	VL-800
Packing speed	5-40 bags/min (determined by actual products)
Film width	450-820mm
Films	Laminated film, PE film

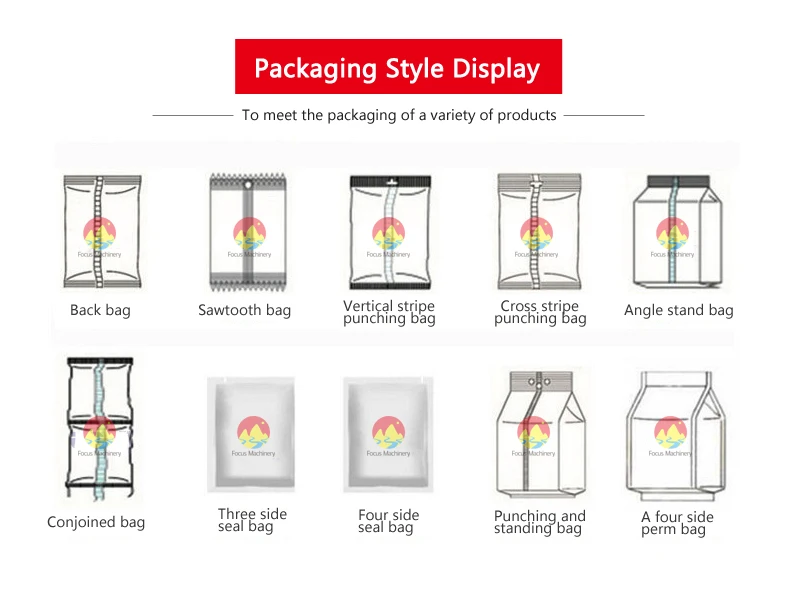

Bag style	Pillow bag, flat bottom gusset bag
Bag width	210-390mm
Bag length	100-600mm
Vertical seal width	8-20mm
Power	2.5kw, 220v, 50Hz
Air consumption	0.4m³/min, 0.6MPa
Dimensions	160014002100mm
Construction	Frame, electric cabinet and food contact parts are made of SUS304
Options	Euro hole punch/ round hole punch device Chain bag device Tear notch device Bag support Gusset device Gas flush Bag deflector Printer
