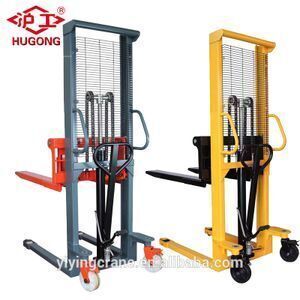

HUGO top 10 brand in china forklift 1 ton 2 ton 1.6M manual pallet stacker

Product details
Local Service Location:none;Power type:Manual Hydraulic Pump;
Lifting height:1.6m-3m;Bearing wheel sze:80*60;
Dimension(L*W*H):2100*1000mm (L*W);Supply Ability:50000 Piece/Pieces per Month;
Manual stacker color:Red, yellow;Loading Capacity:1-3t;
Warranty:1 YEAR;Place of Origin:Shanghai China;
Certification:CE;After-sales Service Provided:Online support;
Packaging Detail:plywood pallet, or as your requirement;Port:SHANGHAI;
Applicable Industries:manual pallet stacker;Steering wheel size:180*50;
Product Name:Hugong hydraulic manual stacker;Payment Terms:L/C,T/T,Western Union;
Brand Name:hugong;Condition:New;
Package:wood pallet;Weight:88kg;
Wheel type:nylon/pu/rubber;After Warranty Service:Video technical support,Online support;
Showroom Location:none;

 HUGO top 10 brand in china forklift 1 ton 2 ton 1.6M  manual pallet stacker

Product Description



Hydraulic manual stacker for price for sale



ModelUnit
Product type hand stackerhand stackerhand stackerhand stacker
Loading capacityTon0.511.52
loading centermm400400400400
wheel type nylonnylonnylonnylon
bearing wheel sizemmØ75×42Ø80×60Ø80×60Ø80×60
steering wheel sizemmØ180×50Ø180×50Ø180×50Ø180×50
Min.fork lowered heightmm90909090
Max.fork lifting heightmm1600160016001600
Overall fork widthmm220-720220-940220-940260-940
Inside width between forksmm20-52020-74020-74020-700
Fork size(l/e/s)mm800/100/53900/100/30900/100/30900/120/30
Overall lengthmm1284137514301430
Overall widthmm1980198020802080
Overall heightmm800100010001000
Min.turning radiusmm1250140014001400
Pump pressure frequncy AT Max.height(laden)times≤95≤95≤110≤110
Service weightKG190220250275

Product details

Product details

1)The hydraulic consists of three parts:

the elevating cylinder and controlling parts,the elevating arm and chain-wheel parts,the gantry and back-wheel parts.
The lift lifts the weights with a manual or pedal hydraulic device,and loads weights with manual pull and push at a low position.
The oil-reflow valve is placed in the hydraulic device.
The descending speed is controlled through the pedal,ensuring the correct action of the hydraulic system and safety.



2)Big pump, strong heart



 Frame thickness

The frame thickness has 8mm.
 Fork size

One model for most countries.

General size: 330-740mm

It is the adjustable fork,

the fork size can be adjusted from 330mm to 740mm.

And the leg width is 690mm.
 Fork size

One model for the EUROPEAN countries
General size:550mm

It is the fixed fork, the fork size is 550mm. And the leg width is 490mm.

  Fork size

A special model
General size:330-830mm


It is the adjustable fork, the fork size can be adjusted from 330mm to 830mm.It is on the outside of the leg. And the leg width is 490mm.



Packing & Delivery




Packaging
Size
1800 (L) * 800 (W) * 2080 (D)
Weight
200KG-400KG



Packaging Details
For the LCL goods, usually we can package with bubble wrap and linen.And if you just need one or two sample,also you can choose the wooden pallet. It is more safety.It just need takes a little cost.

Packaging
Size
1660 (L) * 760(W) * 2030 (D)
Weight
210KG



Packaging Details
When loading, we can stack up them  to loading more quantity. and each product will be protected to avoid scratch.
And will take a lot of fixed rope to keep it stable.
