Chine Best 360 degree revolved boom 1.5T load capacity atv t

Chine Best 360 degree revolved boom 1.5T load capacity atv trailer,atv timber trailer,atv log trailer

Main Feature of the trailer

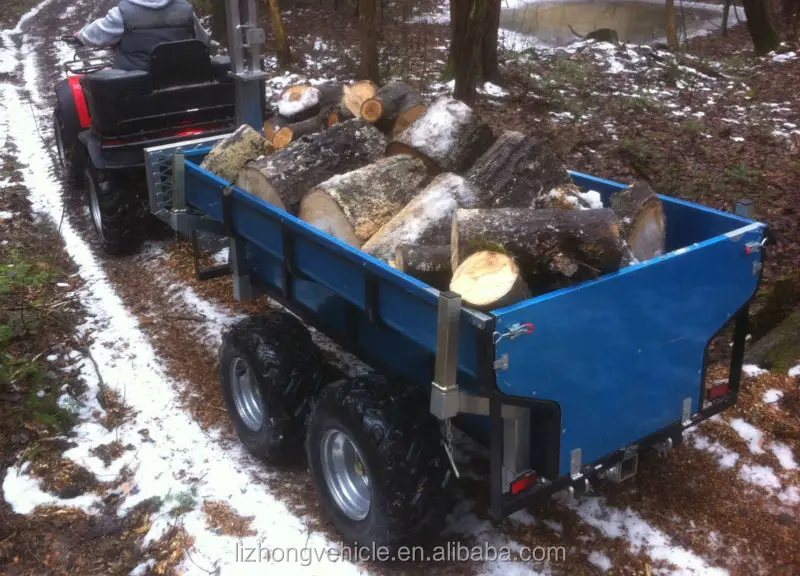

1):Use of trailer

it will haul dirt, rocks, firewood, logs and more. It easily converts from a dump box trailer to a log hauling trailer. This trailer makes the perfect addition for property owners and sawyers.

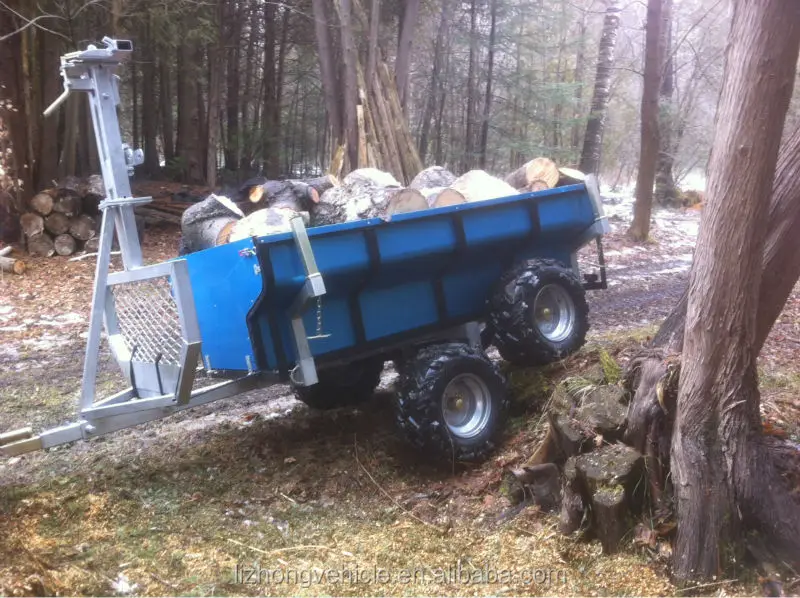

2):2 Trailers in 1

This  trailer easily converts from a dump box style trailer to a logging trailer. Simply remove the two hinge pins and slide the box off. Four extension arms can be installed to increase the carrying capacity in the height dimension. The length of the trailer is also adjustable making it possible to safely haul lumber or logs up to 12' long!

3):Winch Dump

This trailer box liner can easily be tilted up to 35 degrees to empty any load. Simply attach the winch cable to the hook on the inside of the box liner and start winding!

4):Heavy Duty Frame Construction

This trailer frame is made of heavy duty 4mm thick square tube and seam welded. The entire chassis is then galvanized to protect from corrosion.

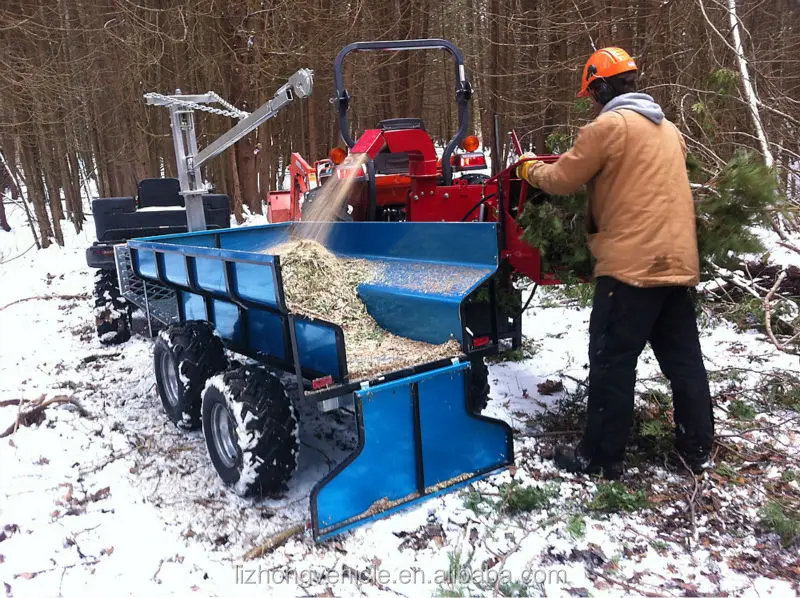

5):Box Liner

Our box liner is made from a stamped galvanized steel and features removable tailgates at both the front and rear of the box.

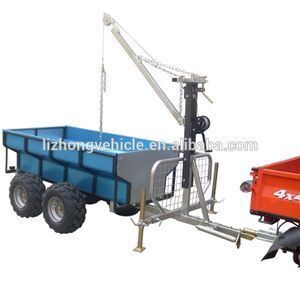

6):Rotating Boom Lift

The boom lift is capable of lifting up to 440 lbs and has a rotation sweep of 90 degrees (45 degrees per side). The boom is telescopic and can be adjusted to four different lengths.

7):Stabilizer Arms

The trailer features telescopic side stabilizer arms that secure the trailer when loading or unloading objects with the boom lift. The width of the arms is adjustable and is locked in place with the threaded locking handles.

8):Rotating Hitch

The trailer tongue is designed with a pivoting ball hitch ensuring that the trailer and your machine function and ride independently of one another. It also features a grease-able zerk fitting.

9):Rotating Tongue Jack

Featuring a rotating jack stand allows the operator to easily store and hook up to your ball hitch.

10):General Construction

The chassis is made with 4mm thick square steel tubing and has a galvanized coating to protect against nature's elements. The dump box is also galvanized and is mounted to it's own powder coated reinforcement structure for added rigidity. The complete chassis system connects to a heavy duty tandem axle system featuring 4-bolt hub bearings where the four 22x11-10 offroad ATV tires are mounted. The tandem axle utilizes one pivoting pin that comes standard with a grease-able zerk fitting.
