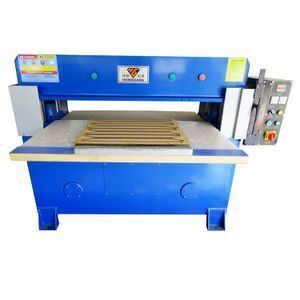

hydraulic Plastic & Rubber Machinery four column rubber making machine

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $4032.00 /set
Min. Order: 1 set

Click here to contact

Product details

Weight:	2500KG,2400kg;	Stroke:	50-160mm;
Columns:	Four;	Port:	Guangzhou,Shenzhen,Foshan;
Voltage:	220v/380v/415v;	Cutting force:	40 tons;
After-sales Service Provided:	Field maintenance and repair service,Engineers available to service machinery overseas;	Supply Ability:	130 Set/Sets per Month cuttng machine;
Power(W):	4kw;	Cylinders:	Double;
Warranty:	1 YEAR,1.5years;	Type:	Rubber Cutting Machine;
Certification:	CE;	Condition:	New;
Payment Terms:	L/C,T/T,Western Union;	Cutting area:	610X1660mm;
Brand Name:	honggang;	Place of Origin:	Guangdong China;
Packaging Detail:	cuttng machine 1,Standard export carton with plastci film. 2,as customer's request...;	name:	cuttng machine;
Dimension(LWH):	233013201260MM;	Suitable Material:	sponge,foam,plastic,leather,EVA/EPE/PS/HIPS/PVC/PET/PP/PE/PU,etc.;

hydraulic Plastic & Rubber Machinery four column rubber making machine

Cutting Video

hydraulic cutting machine for multi-layer materials cutting video:
https://www.youtube.com/watch?v=LK0_k7blRDs

hydraulic cutting machine for foam materials cutting video:
https://www.youtube.com/watch?v=ceqEXQnFBWQ&index=1&list=PLZTnvjIksKDgVDj1Cd96ZheQwfuMG5mTG

hydraulic cutting machine for plywood materials cutting video:
https://www.youtube.com/watch?v=D36eBzjefCU

More cutting machine video on our youtube page:

https://www.youtube.com/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos

Product Description

What Detail of our cutting machine?

1.die cutting machine pressure:25ton--300Ton,Cut material by dies/ moulds.

2.Hydraulic,manual simple operated,material precision 0.01mm,no burned.
3.Two Cylinders,Four Column,Plane cutting press machine
4.Die cutting leather,foam,EVA,sponge,plastic sheet ect.
5.Can make big cutting area:610*1600mm or as required.

Mainly used for die cutting leather and leather products,plastic,rubber,sponge,foam,EVA,PVC,cardboard, paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials, and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time.

What Specifications of our cutting machie?

1. Technical Parameters cutting machine

Model.No~	Cutting Force	Dimension *(LWH)*	Area of Work Table	Main Motor Power	Stroke Control Range	Net Weight
HG-a30T/63"	30 Tons	*233013201260mm*	*6101600mm**	2.2kw	50-160mm	1900kg
HG-B30T/63"	30 Tons	*233013201260mm*	*6101600mm**	2.2kw	50-240mm	2000kg
HG-B30T/48"	30 Tons	*195013201260mm*	*6101220mm**	2.2kw	50-240mm	1900kg
HG-a40T/63"	40 Tons	*233013201260mm*	*6101600mm**	4kw	50-160mm	2500kg
HG-B40T/48"	40 Tons	*195013201260mm*	*6101220mm**	4kw	50-240mm	2400kg
HG-a50T/63"	50 Tons	*233013201260mm*	*6101600mm**	4kw	50-160mm	2900kg
HG-B50T/48"	50 Tons	*195013201260mm*	*6101220mm**	4kw	50-240mm	2800kg

2. Features and Advantages cutting machine

Features and Advantages
1.Double-cylinders,four-columns,self-balancing connecting rod which can maintain equal pressure of each position.
2.Series B machine has the long-stroke setting for adopt to the jumbo-size materials and high knife mould cutting.
3.When the upper board pressure down and contact to the blade,automatically,it can cut slowly,so that there is no size error between the top and the bottom materials.
4.The unique setting construction,combine with the cutting knife and cutting height which stroke simple and accurate.
5.Central automatic lubrication systems can ensure precision and durability of the machine.
6.More economical and 2 or 3 times improving producting capacity.

What Working-show of our cutting machine?

1. the cutting machine Working Show

2. the cutting-dies cutting machine

>>> Click here to konw more Dies

What Applications of our cutting machine?

Application Materials:

The Cutting Machine is widely used in industrial leather,plastic,rubber,sponge,foam,EVA,PVC,cardboard,paper products,fabric,home textiles,packaging materials,non woven,carpet,car cushion,felt,synthetic materials,and other non-metallic materials in various industries;Extremely suitable for cutting multiple layers of material at one time,etc.
