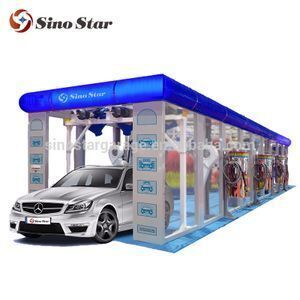

SINOSTAR China automatic brush tunnel type car wash machine price / car washing equipment system for sale A6-G

Supplier: Sino Star (Wuxi) Automotive Equipment Co., Ltd.
Region: Jiangsu, China
Contact: Mr Jiang Michael
Price: $38500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Water supply tube:	DN40;	Model Number:	A6-G;
Single volume:	16 cm;	Type:	Car Washer;
Material:	Stainless Steel;	Water consumer:	160 L per car;
Place of Origin:	Jiangsu China;	Wash speed:	Up to 60 CPH;
Wrap-A-Round side brush:	2;	Contouring dryer:	18KW (4 blowers);
Side brush:	2;	Brand Name:	Sino Star;
Single gross weight:	5000.0 KG;	Top brush:	1;
Product name:	automatic tunnel car wash machine;	Size:	1010380310;
Packaging Detail:	exporting packages;	Warranty:	3 years;
Rocker panel brush:	2;	Wash size W*H (cm):	200*200;
Selling Units:	Single item;

SINOSTAR China automatic brush tunnel type car wash machine price / car washing equipment system for sale A6-G

Product name: automatic tunnel car wash machine

Model series: A6-G

Product Description

1. Professional wash for Cars, jeeps and all kinds of minibus
2. Adopting advance technology and full module design, which can be combined to more than ten different functions for different needs
3. The main electrical components are imported from famous foreign factory, which can ensure safe and reliable
4. Unique fault self-testing system
5. Adopting the most advanced wash brushes which can wash completely
6. The transparent glass shape which is luxurious
7. Touch panel control screen is easy to operate
8. Adopting the advanced high pressure system
9. High pressure pre-wash, agent wash, brush wash, spraying wax, drying and polishing in one turn
10. With 11 brushes and 4 blowers

Item	A6-G	A6-B	A6-BF	A6-A	A6-AF
Product positioning	7 brush 4 blowers	9 brush 4 blowers	9 brush 7 blowers	11 brush 4 blowers	11 brush 7 blowers
Machine size LWH (cm)	1010×380×310	1120×380×310	1290×380×310	1330×380×310	1540×380×340
Wash size W*H (cm)	200×200	200×200	200×200	200×200	200×200
Power standard	as local	as local	as local	as local	as local
Total power	30KW	30KW	55KW	35KW	60KW
Water supply tube	DN40	DN40	DN40	DN40	DN40
Water consumer	160 L per car	160 L per car	160 L per car	160 L per car	160 L per car
Wash speed	Up to 60 CPH	Up to 60 CPH	Up to 60 CPH	Up to 60 CPH	Up to 60 CPH
Wheel brush				2
Rocker panel brush	2	4	4	4	4
Top brush	1	1	1	1	1
Side brush	2	2	2	2	2
Wrap-A-Round side brush	2	2	2	2	2
Contouring dryer	18KW (4 blowers)	18KW (4 blowers)	18KW (4 blowers)	18KW (4 blowers)	18KW (4 blowers)
Arch dryer			30KW (4 blowers)		30KW (4 blowers)
High pressure	550 psi	550 psi	550 psi	550 psi	550 psi
Water pump	70 psi	70 psi	70 psi	70 psi	70 psi
Foam system ( by dosing pump)	1	1	1	1	1
Wax system ( by dosing pump)	1	1	1	1	1
Signal light	2	2	2	2	2

We can customerize the color according to customer choise :

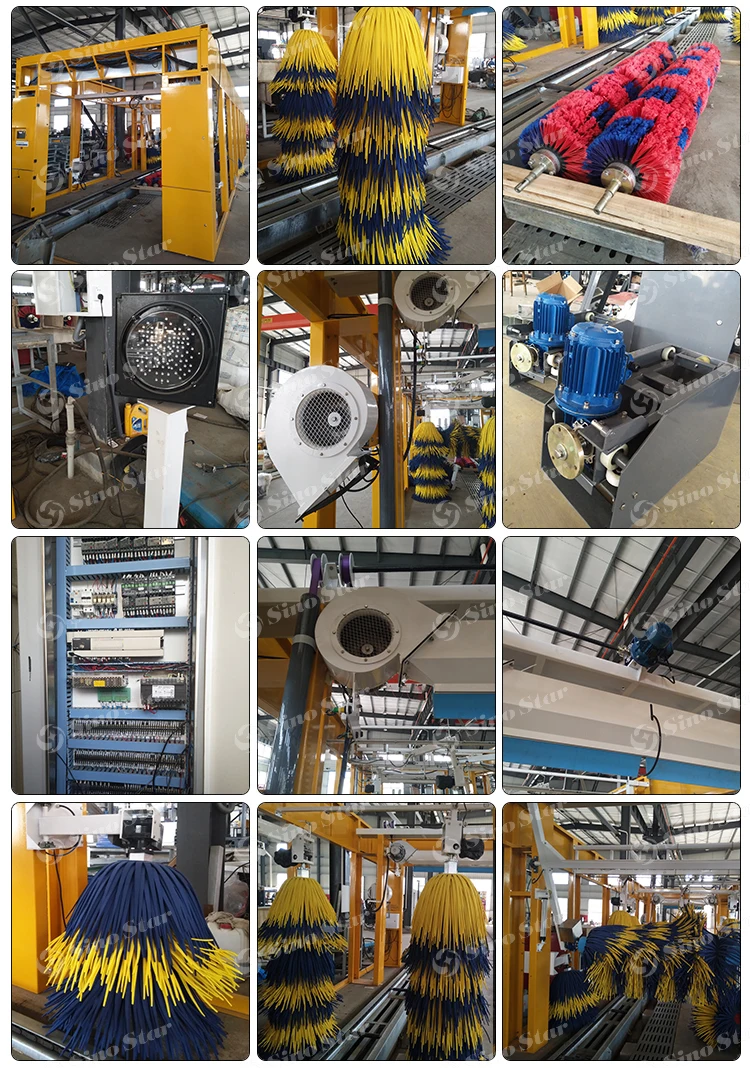

Detail Compnents

* Control system : We use a 10inch bright touch screen , easy to read information in the sun and the language is English, you can control the module of car wash to choose or not by this screen. All records will be writen to database, such as washing for daily, monthly and total. If there’s any problem with the machine, it will show you how to repair step by step.

* Plate correlator: It can move the left and right wheel by plate at the same time to effortlessly align vehicles correctly on the conveyor for a successful wash. It’s different with rolling correlator which moves right wheel by car body. All parts of conveyor system shall be hot dipped galvanized, good anti corrosive and good anti rust.

* Contouring dryer: It has been used for over twenty years. Blowers and vent are one piece designed, profile the body of vehicle easily by three pairs of photo eyes. This means dryers are more efficient at delivering air pressure to the vehicle surface and require fewer dryer motors to do the same work when compared to arch dryer.

Cusotmer need to pay attention:

* If you drive into the car and do not need to turn around so it does not have distance limitation;

* People in and out of the washing machine, if there is a downhill, you need to reserve 4 meters platform in the washing machine Entry and Exit each ;

* I try to set aside at the entrance to the waiting area more than three vehicles, in order to maintain the continuity of the car;

* It has no effect on the exit lane vehicle obstacle traffic, vehicles must not reverse phenomenon at the outlet, so as to avoid a collision;

* If setting cache area, not less than four cars at the same time;

* More attention, please contact our company and business manager Michael (Whatsapp+ 86-15900433721).

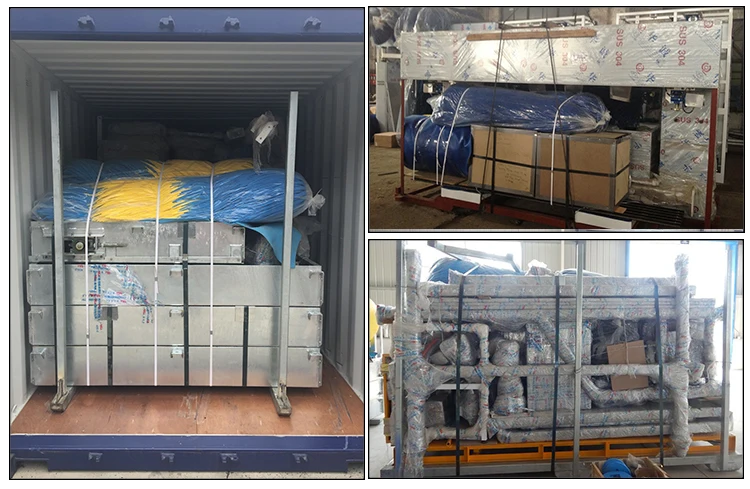

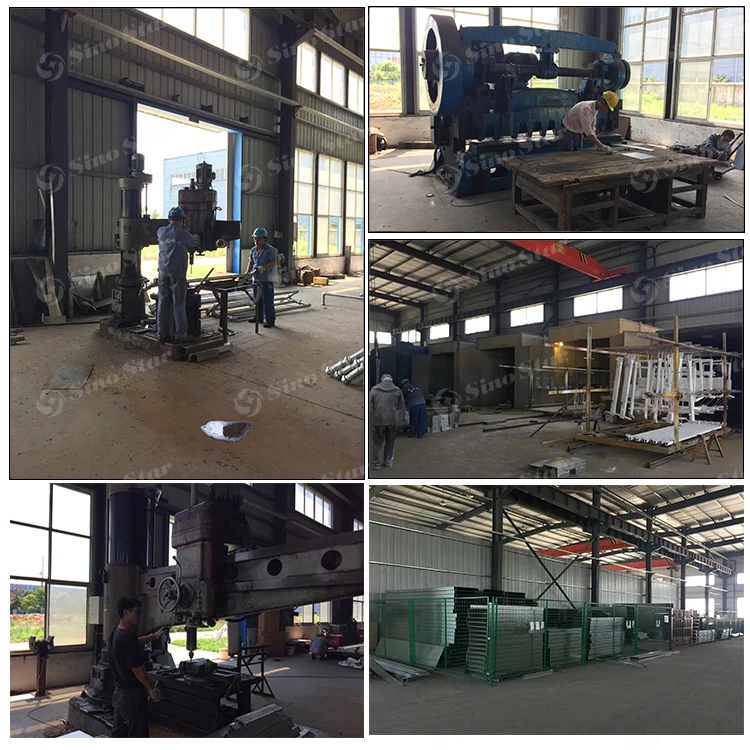

Factory & Packing

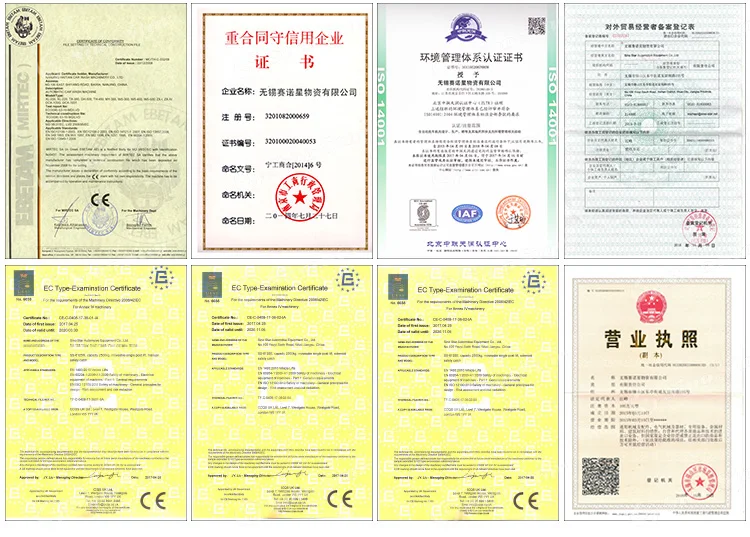

Certifications

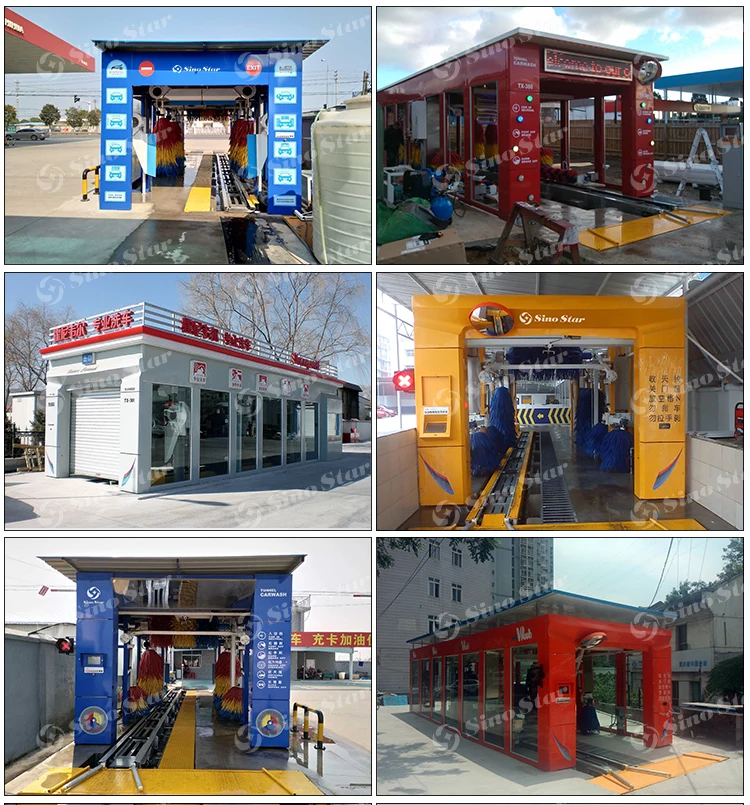

Site Photos

SINOSTAR tunnel car washing machines sell to all over the world and get very good praise!

We can customize our car washing machine system according customer’s request!

FAQ

Q: What's you car washing machine advantages ?

A: SinoStar insist do China high end quality car wash machine for over 10 years, machine use 8 years won't be a problem. Lower rate of fault, high stability, famous brand components, rich experience, brand, precious craft all is the features of machine.

Q: Who will install our car washing machine?

A: We will dispatch 2 rich experience engineers to your site to give instructions of installaing and traing work, but client will need handle the round ticket, visa cost, local accommodation, and allowance $100 per engineer per day. 7-10 days finished project.

Q: What is your terms of payment ? and what's the delivery time?

A: 30% TT in advance, 70% before shipment.

L/C at sight negotiable.

45-50 days after we received the down payment.

Q: What is the warranty of your car washing machine?

A: The equipment warranty become effective when you receive the machines, and the warranty period is 1 year. We provide spare parts to maintain the machine life-long and client need to pay the cost after warranty period.
