Galvanized Steel Pipe Making Machine to Make Square and Round Tubes

Supplier: Foshan YXH Import & Export Co., Ltd.
Region: Guangdong, China
Price: $20300.00 /set
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	20m x 1.1m x 1.4m;	Certification:	ISO9001;
Supply Ability:	30 Set/Sets per Month;	Place of Origin:	Guangdong China;
Pipe Material:	SS,Inox,Carbon Steel,Iron,Erw,GI,Galvanized,STAINLESS STEEL;	After Warranty Service:	Video technical support,Online support,Spare parts,Field maintenance and repair service;
Local Service Location:	INDIA;	Port:	Foshan ,Shenzhen,Guangzhou, at your request;
Voltage:	220/380/415/420/440,220/380/415/420/440V;	Weight:	6-10T,6-10T;
Pipe Diameter:	25.4-76.2mm;	Production Speed:	1-7m/min;
Core Components:	PLC,Bearing,Gearbox;	Packaging Detail:	Export standard Batten and steel wire must be used for fixing the machine to prevent the rough transport;
Marketing Type:	New Product 2020;	Machinery Test Report:	According to the actual situation;
Square Thickness:	0.45-2.0mm;	Round Thickness:	0.4-2.5mm;
Mill Feature:	Precision,stable,easy operation;	Brand Name:	YXH steel pipe making machine;
Condition:	New;	Showroom Location:	INDIA;
Warranty:	1 YEAR;	Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,farms,restaurant,HOME USE,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;
After-sales Service Provided:	Online support,Field installation, commissioning and training,Field maintenance and repair service,Video technical support;	Production Capacity:	1-15m/min;
Power(W):	7.5KW;	Pipe Application:	Furniture,curtains,chimney,handrails,baluster,construction tubes;
Type:	pipe making machine,Pipe Mill;	Video outgoing-inspection:	Provided;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Warranty of core components:	1 YEAR;
Key Selling Points:	Easy to operate;	Application:	Produce stainless steel tubes/pipes;

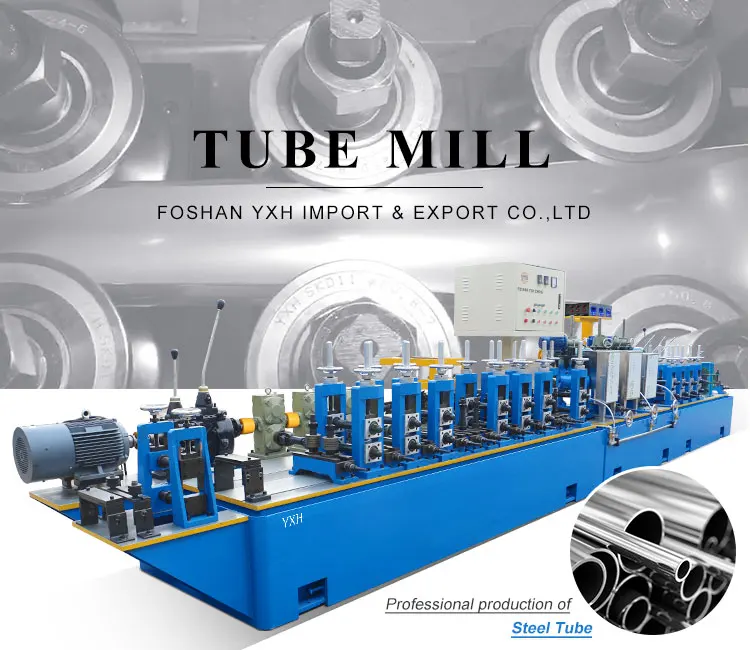

Galvanized steel pipe making machine to make square and round tubes

YXH —— The first foreign office established in the industry

oshan YXH Tube Mill offer different Stainless steel tube mill manufacturing machine, covering range from 6mm to 114mm. (0.24''to4.49''pipe diameter), and thickness is 0.2mm to 6.0mm round pipe,

square pipe, rectangle pipe, oval pipe and other irregular pipe as well.

(1)Steel Pipe Application :Decorative and Ornamental Area: Furniture(office chairs,frames of the chairs and tables, brush handle),

Building construction(balcony, stair, gate, house balcony Hand Railings, stairs, house curtains, curtain rods, bath showers), Public facility(geyser tank assembly)

Industry Area: Water,Heat exchange, Automobile

(2)Pipe Material :Stainless Steel(SS,STS), Carbon steel(cs, ms, iron, erw), Galvanized(Gi, pregalvanzied), Mild Steel(Black pipe)

(3)Grade: ASTM554(Furniture), ASTM312, ASTM249(Heat Exchanger), ASTM269(Boiling pipe) , ASTM270(Sanitary);201, 304, 316 (steel grade 37 kg / cm²)

(4)Pipe shape: Round, Square, Oval, Rectangular, Slotted, Circles, Octangle

(5)Main market: India,Bangladesh, Vietnam, Pakistan, Egypt, Russia,Uzbekistan,more than 33 countries.

(6)Pipe specification:thin-walled,thick-walled

(7)Welding Tape: Tig welded , Seam welding , New Plasma

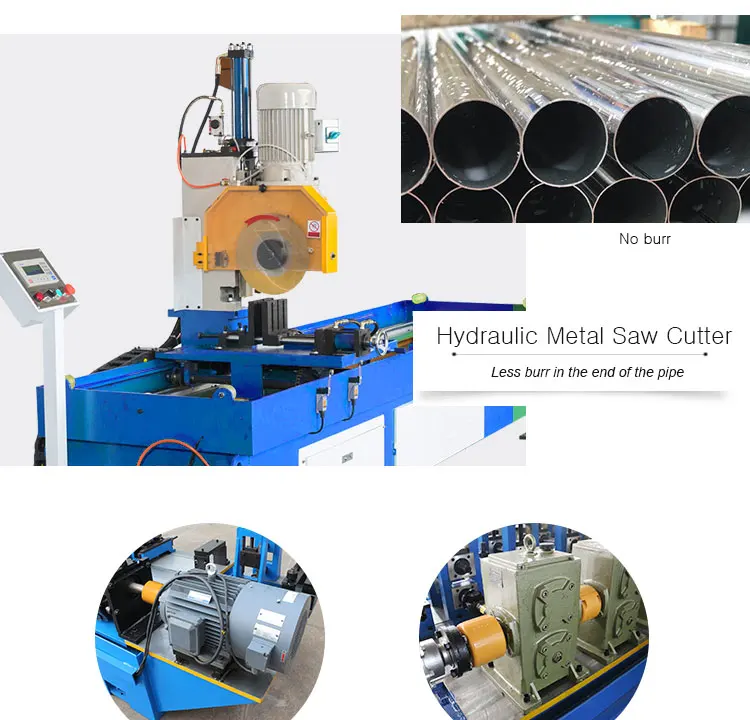

(8)Pipe cutting : Longitudinal cutting of sheet metal, cutting by cold saw or servo motor

(9)Pipe Diameter: Round Pipe Diameter: 6-114mm;1/5inch-5inch( ½”, ¾”,1”, 1 ¼” , 1 ½”, 2”, 3”); Square Pipe Diameter:12*12-100*100mm; Rectangular Pipe Diameter:40*20mm-100*50mm

(10)Pipe Thickness:0.2-3.0mm

(11)Production capacity: It will depend on your require and your choose

(12)Pipe Length: According to customer demand

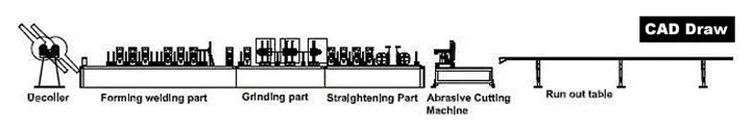

(13)Pipe production line include based device: Strips machine for cutting roll—Decoiler—Marking —Forming Machine —Welding Machine —Cutting machine

(14)Tube roll set Material: Cr12Mov ,SKD 11, D2

(15)Raw material : Stainless Steel coil

(16)Finish/pipe surface: mirror finish, satin finishing , matt finishing

Product Description

Feature:TIg Welding, Seam, 201/304,Round,Square,Oval,Rectangular,Irregular Stainless Steel,Inox,Carbon Steel ,Erw,Iron ,Gi, Galvanized Steel Pipe Making Machine/Tube Mill/Pipe Production line

Pipe Application:Curtains ,chimneys,handrails, baluster,furniture,construction

Parameter

Technical data	GY40	B-GY40	GY50	GY60	GY80	GY100
Pipe Dia.	12.7-50.8	25-63.5	25.4-76.2	38.1-114	50.8-168	133-273
Wall thickness(mm)	0.3-2.0	0.4-2.0	0.5-3.0	0.5-4.0	1-5.0	1.5-8.0

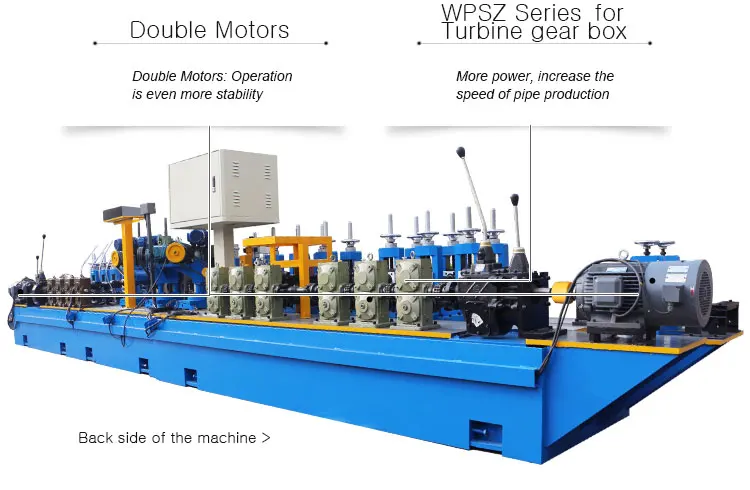

Major motor(kw)	7.5KW×2pcs	7.5KW×2pcs	11KW×2pcs	15KW×2pcs	22KW×2pcs	30KW×2pcs
Polishing motors (kw)	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set	3kw x 3/set	4kw x 4/set
Note	we accept orders with client's designs.

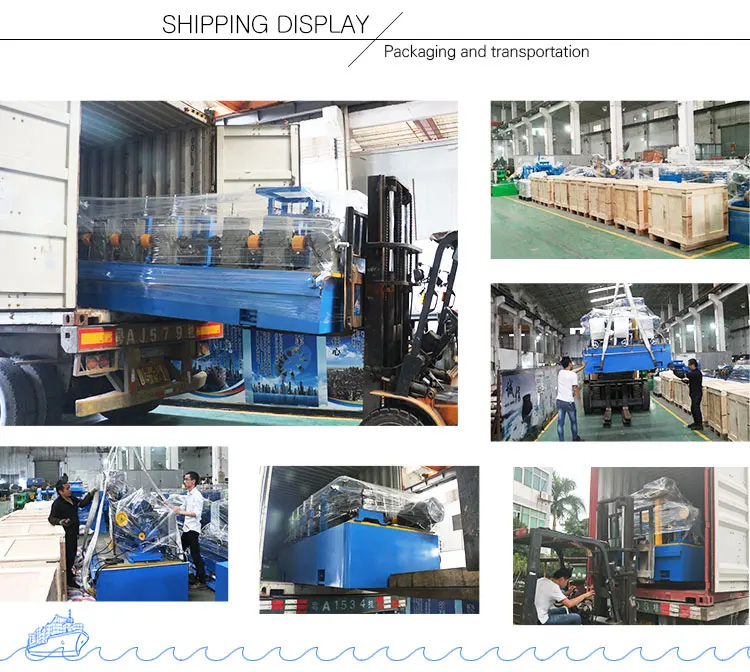

Packaging & Shipping

We use steel wire and wooden frame to fix the pipe making machine;
In addition, used shockproof film to protect the main motors.
We use the container to deliver goods to our customer. Generally speaking, we start at FOSHAN port, but we also can start at other port according to customer's need.
