Product Description

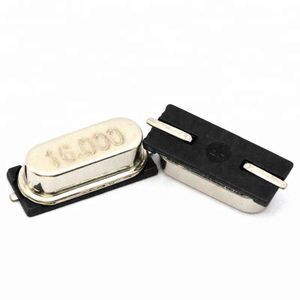

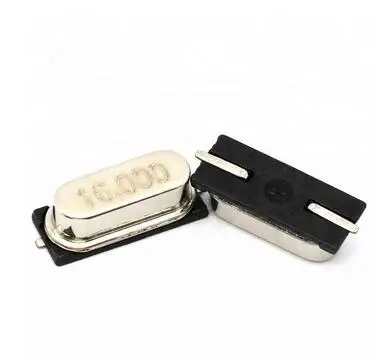

 SMD crystal 16M 2 pin 16MHZ 49SMD quartz crystal passive crystal

Nominal frequency: 3.579545MHz-64MHz
Adjust the frequency difference: ±20PPM (at-20°C-+70°C)
Temperature frequency difference: ±20PPM (at-20°C-+70°C)
Working temperature: -20 ° C -70 ° C
Oscillation mode: FUNDMENTAL fundamental frequency
Static capacitance: 7pf Max
Excitation power: 50UW
Load capacitance: 20PF
Aging rate: 3ppm
Resonance resistance: 409MAX
Insulation resistance: 500MS Min/DC100V

Mechanical and environmental performance:
1. Free fall (impact): Free fall from 75CM to 30MM thick hardwood board, falling three times, in line with technical specifications.
2, sealing: immerse the resonator in alcohol and pressurize 5Kg/cm2 for 5 minutes, take out the insulation between the test pin and the base >500MQ (DC100V)
  3, solderability: from the end of the pin to the bottom 2 ~ 2.5MM into the welding bath of 235 ° C ± 5 ° C, time 2 ± 0.5 seconds, dip tin surface > 90%
4, vibration resistance: vibration frequency 10-55Hz, amplitude 1.5MM, vibration test in the ×, Y, Z direction 2 hours after the test:

1, test conditions: test temperature is 25 ± 3%
2, test equipment: KH-1200 network analysis instrument
