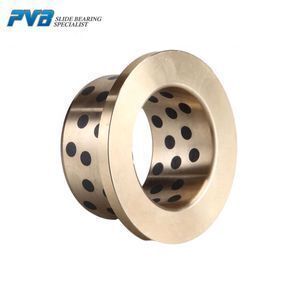

2086.70. oiles bearing,CuZn25AI6Fe3Mn3 bronze graphite bushing,DIN 9834/ISO 9448 oilless guide bush

Supplier: Jiashan PVB Sliding Bearing Co., Ltd.
Region: Zhejiang, China
Contact: Ms Catherine Hu
Price: $1.60 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Lubrication:	Graphite;	Quality:	OEM quality;
Package Preview:	;	Precision Rating:	high;
Standard:	DIN1494,ISO3547,EN Standard,JIS Standard;	Specification:	Standard size, customized;
Brand Name:	PVB;	Type:	Sliding,Sleeve,Flanged,Thrust Washer,Plates,Customized;
Single gross weight:	0.3 KG;	Sales:	90% export,hot sales,good price;
Model Number:	JDB;	Single package size:	36X18X21 cm;
Place of Origin:	Zhejiang China;	Packaging Detail:	1. Clear the plates 2.Pack with plastic paper 3.Pack with foam paper 4.Carton 5.Good quality wood case;
Selling Units:	Single item;	Feature:	Self lubricating,maintenance free;
Lead time:	10-20 days;	Applicable Industries:	Manufacturing Plant,Machinery Repair Shops,Retail,Construction works ,Automotive Industry;
Application:	Die mould, Injection mould;	Base Material:	Bronze, Brass;

2086.70. oiles bearing,CuZn25AI6Fe3Mn3 bronze graphite bushing,DIN 9834/ISO 9448 oilless guide bush

Product Description

Material	CuZn25Al5	CuSn5Pb5Zn5	CuAl10Ni5Fe5	CuSn12	CuZn32Al5Ni3
Density	8	8.9	7.8	8.9	8
HB hardness	>210	>70	>150	>95	>280
Tensile strength N/mm2	>750	>200	>600	>260	>540
Yeild strength N/mm2	>450	>90	>260	>150	>450
Elongation %	>12	>15	>10	>8	>0.3
Coefficient of linear expansion	1.9x10-5/°C	1.8x10-5/°C	1.6x10-5/°C	1.8x10-5/°C	1.8x10-5/°C
Max. temp.	-40~+300	-40~+400	-40~+400	-40~+400	-40~+150
Max. load N/mm2	100	60	50	70	150
Max. speed (Dry) m/min	15	10	20	10	15
Max. PV N/mm2*m/min (Lubrication)	200	60	60	80	200
Compression deformation 300N/mm2	<0.01mm	<0.05mm	<0.04mm	<0.05mm	<0.005mm

1. Q: Are you a factory or trading company?

A: We are professional factory and exporter with more than 15 years experience,we have professional production teams, technical team, QC team and sales team.

2. Q: What is your main products?

A: DU Bush, DX Bush, Bimetal Bearing, Wrapped bronze bearing, Cast bronze bearing, Oiles bearing,Oiles wear plates.

3. Q: How to get a sample?

A: For stocks, sample can be free of charge. If we need to make, it can be negotiated based on different situation.

4. Q:What’s your advantage?

(1) competitive price

(2) continuously stable high quality

(3) professional OEM manufacturer

(4) professional sales and technical team to understand your requirement very well

(5) perfect customer service. Reply your inquiry or email within 6 hours on working time and 12hours on weekends

(6) perfect package to protect your goods during long distance transportation

5. Q:What is your Minimum quantity?

A: Different type of bushes have different MOQ,pls contact us for details.

6. Q: What is your lead time?

A: Lead time depends on bush type and order quantity. Normally, our lead time is 20 days after receiving your down payment. If the items you choose with stocks, we can delivery within 3 working days
