Zoomlion 52m Concrete Mixer Truck Mounted Pumps 52X-6RZ

Supplier: Newindu Construction Engineering (Shanghai) Co., Ltd.
Region: Shanghai, China
Contact: Mr Ken Ye
Price: $320000.00 /unit
Min. Order: 1 unit

Click here to contact

Product details

Weight:	42870kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Packaging Detail:	nude;	After-sales Service Provided:	Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Free spare parts,Online support,Engineers available to service machinery overseas;
Port:	Shanghai Port;	Max. Concrete Output:	183 m3/h;
Power Type:	Diesel;	Condition:	New;
Max. Reach Depth:	37.6m;	Dimension(LWH):	93001197510422 mm;
Certification:	ISO CE;	Max. Reach Horizontal:	48 m;
Supply Ability:	100 Unit/Units per Month;	Hopper Capacity:	600L;
Brand Name:	Zoomlion;	Warranty:	1 YEAR;
Place of Origin:	Hunan China;	Vertical reach:	52m;

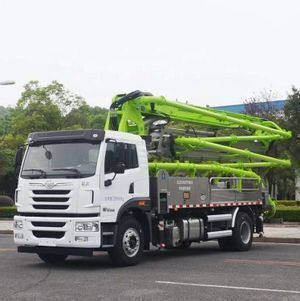

Zoomlion 52m Concrete Mixer Truck Mounted Pumps 52X-6RZZ

Product Description

• Compact in design, 52m pump mounted on a 4-axle truck

• Efficient pump unit, ideal for long time use.

• Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range.
• One side lateral support enables to work in narrow sites.
• Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice.
• Various configurations and high quality components.
• Damping technology boom.
• Boom stabilization control.
• Multilingual man-machine interface system.
• PWM+CAN dual communication mode remote control.• Compact in design, 52m pump mounted on a 4-axle truck. • Efficient pump unit, ideal for long time use. • Agile placing boom with 6 arms with unfolding height 10.9m only, which gives a wide work range. • One side lateral support enables to work in narrow sites. • Controller is designed for heavy duty use, with a monitor which monitors the pump intelligently on working data management, real-time diagnostics, alarm logging, and service interval notice. • Various configurations and high quality components. • Damping technology boom. • Boom stabilization control. • Multilingual man-machine interface system. • PWM+CAN dual communication mode remote control.

Main Parameters

Pump Unit	Max. Output	180 m3/h
	Max. Concrete Output Pressure	9 MPa
	Rated Working Pressure	35 Mpa
	Pumping Frequency	27 min-1
	Hopper Capacity	600 L
	Filling Height	1540 mm
	Hydraulic System Type	Closed Loop
	Distribution Valve	S valve
	Oil Cylinder Dia.*Stroke	ψ130*2100 mm
	Concrete Cylinder Dia.*Stroke	ψ 230*2100 mm
	Hydraulic Oil Cooling	Wind cooling
	Max. Aggregatte Dimension	40 m

Boom Section	Placing Depth	52 m
	Max. Horizontal Distance	48 m
	Max. Placing Depth	37.6 m
	Slewing Angle	±270°
	Boom Number	6
	The Length of Boom Section	10410/9120/8690/9680/6600/3500 mm
	Sections Folding Angle	90°/180°/180°/240°/195°/210°
	Pipe Diameter	125 mm
	End Hose Length	3000 mm
	Min. Height of Opening Placing Boom	10900 mm
	Outriggers Span(frontrearside)	93001197510422 mm
