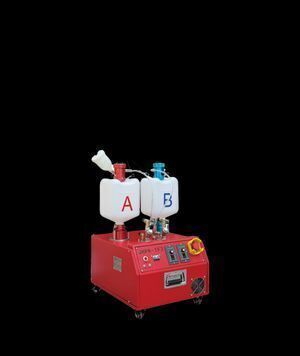

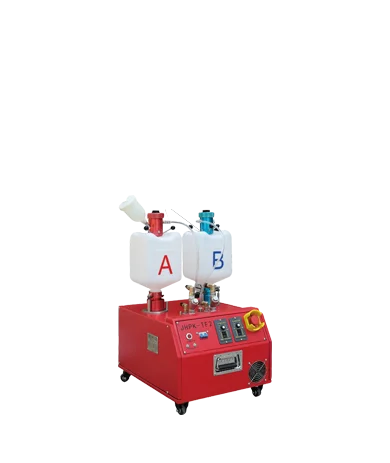

Polyurethane Resin Pultrusion Machine Ratio Measurement Machine System

Supplier: Jinghua Park Handan Machinery Technology Co., Ltd.
Region: Hebei, China
Contact: Mr Will
Price: $4666.00 /set
Min. Order: 1 set

Click here to contact

Product details

Item:	two components electric spray equipment JHPK-DD3;	color:	Red;
Material:	polyol and ISO;	Payment Terms:	T/T;
Product Name:	Hot Sale Polyurethane Resin Pultrusion And Winding Equipment Machine;	After-sales Service Provided:	Overseas third-party support available,Online support;
Application:	Spray Wall or others;	Brand Name:	JHPK;
Place of Origin:	Hebei China;	Supply Ability:	999 Set/Sets per Year;
Warranty:	1 YEAR;	Port:	Tianjin port or any port in China;

Product Description

Description

The newest promoted JHPK-GT10 ratio measurement system with multiple component&muti function has series functional combination models according to the applied fields and raw material features.It can be applied in new type polyurethane profile extruding production line,production of polyurethane resin,production of epoxy resin products,other special material utilization fields and etc.

1.Having the complete independent intellectual property rights in design and production,several key techniques have applied national patent;

2.High accuracy system,the control for flow rate and proportion will be accurate and stable

3.Selecting the special material pump will be suitable for raw material with stuffing or other special physical and chemical properties.

4.Material lacking indication at low pressure and overpressure alarm guarantee the safety operation

5.The protection system for the unique material circulation pump and the closed material feeding type absolutely solves the material crystallization or the utilization of the material which is sensitive to the air

6.Self backflow injection gun,low pressure collision and static mixing ,pneumatic and liquid cleaning method ,no blocking in the gun;

7.The unique design for the raw material anti-sedimentation and the new feeding type with the material pump guarantees the continuous stable operation and enhances the possibility for the highly automated line production

8.The ultra quiet design,no noise pollution,220V power source for the normal operation,energy saving and environmental protection;

9.The reasonable system layout and compact structure design greatly reduce the system space occupation;

10.The design for the full degital intelligent control system makes the system operation more simple and convenient;

11.Multiple modular combination design can meet the different requirements of the customers and has strong practicability.

Standard Configuration:

Main system(two-components)	1 set Including material pump system,cleaning pump system,two-components material feeding system,control system and etc.,
Ancillary injection gun	1 pics
Ancillary perfusion gun	1 piece
Operation panel for gun	1 piece
Insulated pipe	1 pics
Auxiliary piping and joints	1 set
Optional functions	1.Other type material feeding method 2.Raw material heating system for one component 3.Muti-function applications for those over two-components 4.Piping and piping heating system 5.Special function material pump(anti-corrosion,acid/alkali-resistant,feeding raw material with solid stuffing,and etc.)

Technical parameters:

Range of flow rate	60ml/min~ 5000ml/min
Range of ratio	1:1~1:50 adjustments
Range of raw material viscosity	200~1000CPS(under operating temperature)
Air pressure	0.5~0.8Mpa(70~120psi)≥0.2m3/min
Power requirement	single phase 220V 50HZ 2KW
Length for Insulated pipe	8m or optional
Pressure for system raw material	≤2.9Mpa(400psi)
Pressure for cleaning pump system	≤0.8Mpa(120psi)
Features of perfusion gun	pneumatic, on-off controlled by handle, automatic back flow when gun off
Mixing mode for perfusion gun	initial collision + static mixer
Air inlet pressure for perfusion gun	0.5~0.8Mpa(70~120psi)
Air pipe size	φ8×1
Working flow rate for perfusion gun	0~12Kg/min
Cleaning method for perfusion gun	sequential combination with fluid cleaning + air cleaning (or select single cleaning method)

Shipping Data:
Main system (including two-components material feeding system):800*800*1500mm
Operating panel for gun:500*500*800mm(excluding the gun supporting part)

Our company

Hot sales

Certifications

Packing

FAQ

Q: Are You the factory or trade company?

A:We are the factory,found in 2003, we have worked on alibaba export for 7 years.

Q: what’s the machine voltage?can it suitable for my local place?

A: the Standard machine is 3 phase ,380V,50HZ .We can change the electrical wire for your local place.

Q:Do you have any training videos on how to operate and maintain the machine?

A:We offer Free video training and maintenance.

24 hours online sevices (Skype, WhatsApp, WeChat, Telphone).

If you come to China,We have two days free training in the factory.

Engineers on-site service (some countries and regions),but the fee is charged.

Q: What’s the warranty period?

A: our machine warranty period is 12 month, and support lifelong consultantservice.

Q: What’s the delivery time?

A: Generally speaking ,we can send the machines 2~3 days after we get the payment if you don’t need to change the wire.Pls ask the salesmans about the details.
Q:What’s the shpping way?How to get the spare parts if the machines are broken?

A:We can send the machines by sea,by air or by railway.It depends on your choose.

We can send the spare parts through DHL ,FedEx,UPS,TNT internation Express,very fast.
