Color: | black; | Single gross weight: | 0.65 KG; |
Packing: | Color Box; | Place of Origin: | Guangdong China; |
power IC: | 7388; | Selling Units: | Single item; |
Battery Life: | > 20 hours; | Audio Format Support: | MP3, WMA, WAV, MP1, MP2; |
Function: | bluetooth; | Screen: | YES; |

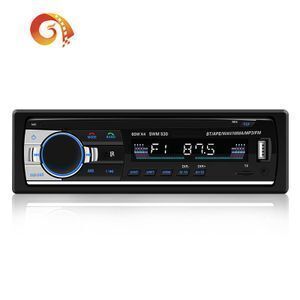

Product name: | car mp3 player; | Brand Name: | jiayitong; |
Single package size: | 21X14.4X8.4 cm; | Model Number: | JSD520; |
Style: | card; |
Features: Bluetooth Specification: V3.0 Supports advanced audio distribution profile Off time display
function Digital high-quality FM stereo radio Preset 18 stations
( frequency: 87.5-108 MHz ) Support USB / SD / MMC card reader
Support Audio: MP3 / WMA / FLAC / WAV etc. Support folder function
Support breakpoints and ID3 Play Support remote control Rotary
volume control MP3 randomized, 10 track up / down playback
Electronic control volume treble, bass, balance and fader
Multiple EQ scene selection: Jazz, rock, pop, classical, etc.
Mute and loud control L / R RCA audio output jacks 4-chan
nel high power output ( 4 loud speaker )
Support modes: BT / WAV / WMA / MP3 / FM The remote control battery (not included ): CR2025 3V FM Radio Tuning Range: 87.5 - 108.0MHz Sensitivity: Less than 20db Stereo Separation: More than 25db
SNR: More than 60db Some Playback Music
format support: MP3 / WMA Display
format: ID3 display
Distortion: Less than 0.3 percents Power Supply 12V Machine: 11 - 16V Note:
This machine is 12V machine, not according to the 24V power supply Audio
Operating temperature: -20 - 60 deg.C Quiescent current speaker
impedance: 4 ohm Frequency Response: 20 - 20000Hz Type: Car MP3 Player Special Function :
FM Radio, Bluetooth, Hands-free calls, MP3 Player, USB flash disk Output Power :
4 x 60W Voltage : 12V Music Source: SD card, 3.5mm stereo headphone jack,
Cellphone, Flash drive Built-in EQ: Rock, Classic, Pops, Jazz SNR (dB): ≥60db
Degree of Distortion (%): ≤0.3% FM Channel: 87.5 - 108.0MHz Bluetooth V
ersion: 2.0 Media Format : WAV, WMA, Mp3 APE Package weight: 0.614 kg
Package Size (L x W x H) : 22.00 x 10.50 x 8.00 cm Package
Contents: 1 x JSD - 520 FM Radio , 1 x Remote Control(no battery), 1 x Wire, 1 x Installation Tool Set,
1 x User Manual Important notice before installation: Please read carefully!!!
Yellow line (for memory wire) connected to the battery constant current positive,
the machine will have memory function. Red line pick the key to the ACC line,
this line is also positive, control power switch. Black wire connected to
the negative power supply. Blue line connected lift the antenna or subwoofer
REM control line, if not have do not connected, wrapped up with rubberized fabric.
The remaining eight wires(gray white green purple) are speaker line, a group
of colors corresponding to a pair of speaker lines (positive and negative).
Please pay attention to check whether the original car speaker cable
if contact iron (the original car speaker wire welding to the metal, or a speaker
only a line thow out, called contact iron). contact iron will cause
our high-power machine without sound, please test it with a multimeter before install,
if contact iron, please disconnect and then install. The following conditions
may cause the machine to burned: 1. Can not use the original car
plug directly connected to our new machine, do not match will lead to the machine
burned, part of the machine can be shared please consult customer service.
2. If you buy a 12V voltage product do not install to 24V voltage models,
otherwise it will cause the machine burned. 3. When wiring,
speaker cable and power cord together, will cause a short circuit, lead the machine burned/unable to
boot or machine without sound.
