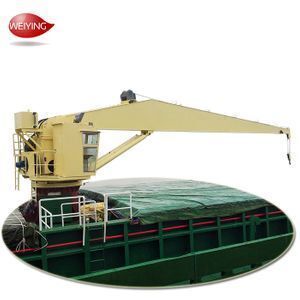

Marine Ship Deck Hydraulic Jib Crane

Supplier: Xinxiang Weiying Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Karida Cao
Price: $9000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Design:	Drawing for client;	driven mode:	hydraulic system;
Port:	QINGDAO,SHANGHAI,TIANJIN;	Warranty:	12 month;

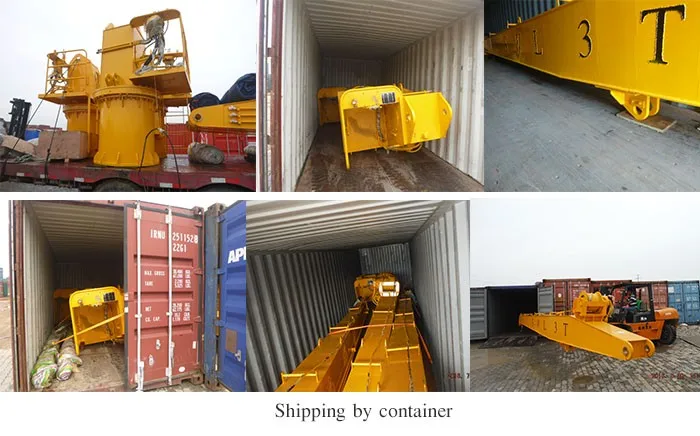

Feature:	Other;	Packaging Detail:	main parts packing by plastic film ,electrical equipment packing by wooden case for Marine Ship Deck Hydraulic Jib Crane;
If can customized:	Yes ,can;	Condition:	New;
After-sales Service Provided:	Video technical support,Online support;	After-sales Service Provided:	Engineers available to service machinery overseas;
Slewing angle:	360 degree;	voltage:	380V.400V.440 V;
Rated Loading Capacity:	as your requirement;	product name:	Marine Ship Deck Hydraulic Jib Crane;
Place of Origin:	Henan China (Mainland);	Certification:	CE,ISO,CCS,BV;
Application:	ship,boat,flat deck,;	Brand Name:	weiying;
Control:	Platform operation, cabin, or remote control;	Span:	8-30 meter;
Woring radius:	4-35m;	Rated Lifting Moment:	200 kn;
Max. Lifting Height:	100 meter;	Usage:	On deck or ship;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Supply Ability:	100 Set/Sets per Quarter deck crane;

Marine Ship Deck Hydraulic Jib Crane

Product Description

Marine Ship Deck Hydraulic Jib Crane introduction

The crane is a hydraulic slewing and luffing crane ,for lifting a variety of marine debris and marine life,loading and unloading cargo or other special purposes.

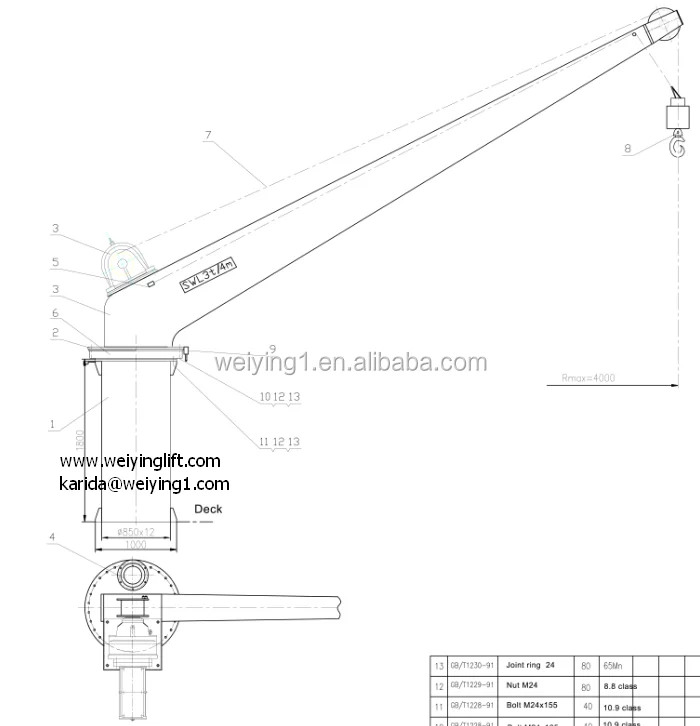

Marine Hydraulic Slewing crane is composed by the cylinder , the fuel tank,crane hoisting mechanism and jib luffing mechanism . And lifting ,rotating,jib luffing are driven by hydraulic system.

Marine Ship Deck Hydraulic Jib Crane Advantage

Flexible and reliable action
Easy to operate
Uses a wide range of characteristics .
Suitable for operations at sea .

Marine Ship Deck Hydraulic Jib Crane Specification

Type	Rated load (SWL)	Max.working radius	Lifting speed M/min	Swing speed (r/min)	Amplitude time (m)	Lifing height (m)	Rotary range (°)	Allowing inclination (trim.heel)	Power (KW)
YQ	0.5	5-12	15	1	60	30	360°	2°/5°	7.5
	1	6-12	15	1	60	30	360°	2°/5°	11
	1.5	6-14	15	1	60	30	360°	2°/5°	11
	2	8-16	15	1	60	30	360°	2°/5°	15
	3	8-18	13-15	0.8	70	30	360°	2°/5°	22
	5	10-20	12-15	0.75	80	30	360°	2°/5°	37
	8	12-20	10-15	0.75	100	35	360°	2°/5°	55
	10	12-20	10-15	0.7	100	35	360°	2°/5°	75
	15	12-22	10-15	0.6	110	35	360°	2°/5°	90
	20	16-25	10-15	0.6	120	40	360°	2°/5°	125
