Cage: | Brass; | Material: | Chrome Steel; |
Seals Type: | Open; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,PAL.ETC; |
Lubrication: | Oil; | Delivery Detail: | 1-3 days after deposit; |
Brand Name: | OEM TFN SEMRI; | Type: | roller; |
Certification: | ISO9001:2008; | Vibration: | V1 V2 V3 V4; |
Precision Rating: | P0 P6 P5 P4 P2; | Service: | OEM Customized Services; |
Feature: | Long Life; | Packaging Detail: | 1. Industrial packaging: Plastic tube (10pcs in one tube)+ carton + plywood pallets; plastic bag + kraft paper + carton + plywood pallets; 2.Commercial packing: 1pc/plastic bag+ single color box+ carton + plywood pallets; 3.According to customer's requirements; |
Number of Row: | DOUBLE ROW; | Structure: | Thrust; |
Port: | Qingdao Port; | CLEARANCE: | C0 C2 C3 C4 C5; |
Model Number: | 81102; | Application: | Machinery; |
Bore Size: | 15 - 15.01 mm; | Outside Diameter: | 28 - 28.01 mm; |
Stock: | Large; | Supply Ability: | 99999 Piece/Pieces per Year; |
Place of Origin: | Shandong China; |

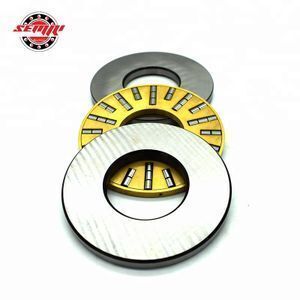

81100 Series Roller Bearing 81102 Thrust Roller Bearing Size15*28*9
Product Name | 81100 Series Roller Bearing 81102 Thrust Roller Bearing Size15*28*9 |
Brand | TFN / SEMRI / OEM |
Model Number | 81102 |
Dimension | 15*28*9mm |
Ring Material | Gcr15/ Carbon Steel/ Stainless Steel/ Si3N4/ ZrO2 |
Cage Material | Steel/ Brass/ Nylon/ Custom |
Precision | P0, P6, P5, or as requested |
Vibration | ZV1, ZV2, ZV3, or as requested |
Clearance | C0,C2,C3, or as requested |
Quality standard | ISO9001:2000/ SGS |
Quality Control Process | 1.Assembly |
2.Windage test | |
3.Cleaning | |
4.Rotary test | |
5.Greasing and gland | |
6.Noise inspection | |
7.Appearance inspection | |
8.Rust prevention | |
9.Product packaging | |
Application | large and medium-sized motor,locomotives,machine tool spindle,gas turbines,reducer,vibrating screen and etc. |
Bearing Number | Boundary dimensions(mm) | Basic load ratings(kN) | Limiting speeds(rpm) | Mass(Kg) | |||||||||
d | D | d1s | D1s | T | Dw | B | rs | Cr | Cor | Grease | Oil | (Approx.) | |
max | min | min | |||||||||||
89306 | 30 | 60 | 60 | 32 | 18 | 5.5 | 6.25 | 1 | 54 | 166 | 1300 | 5000 | 0.25 |
89307 | 35 | 68 | 68 | 37 | 20 | 6 | 7 | 1 | 66 | 214 | 1200 | 4600 | 0.36 |
89308 | 40 | 78 | 78 | 42 | 22 | 7 | 7.5 | 1 | 85 | 277 | 1000 | 4000 | 0.52 |
89309 | 45 | 85 | 85 | 47 | 24 | 7.5 | 8.25 | 1 | 102 | 345 | 900 | 3600 | 0.67 |
89310 | 50 | 95 | 95 | 52 | 27 | 8 | 9.5 | 1.1 | 125 | 445 | 800 | 3200 | 0.94 |
89311 | 55 | 105 | 105 | 57 | 30 | 9 | 10.5 | 1.1 | 158 | 570 | 730 | 2900 | 1.27 |
89312 | 60 | 110 | 110 | 62 | 30 | 9 | 10.5 | 1.1 | 162 | 600 | 680 | 2700 | 1.35 |
89313 | 65 | 115 | 115 | 67 | 30 | 9 | 10.5 | 1.1 | 166 | 635 | 650 | 2600 | 1.43 |
89314 | 70 | 125 | 125 | 72 | 34 | 10 | 12 | 1.1 | 205 | 790 | 600 | 2400 | 1.93 |
89315 | 75 | 135 | 135 | 77 | 36 | 11 | 12.5 | 1.5 | 239 | 920 | 550 | 2200 | 2.41 |
89316 | 80 | 140 | 140 | 82 | 36 | 11 | 12.5 | 1.5 | 246 | 970 | 530 | 2100 | 2.53 |
89317 | 85 | 150 | 150 | 88 | 39 | 12 | 13.5 | 1.5 | 281 | 1100 | 500 | 2000 | 3.14 |
89318 | 90 | 155 | 155 | 93 | 39 | 12 | 13.5 | 1.5 | 289 | 1160 | 480 | 1900 | 3.28 |
89320 | 100 | 170 | 170 | 103 | 42 | 13 | 14.5 | 1.5 | 335 | 1370 | 430 | 1700 | 4.19 |
89322 | 110 | 190 | 190 | 113 | 48 | 15 | 16.5 | 2 | 430 | 177 | 400 | 1600 | 6.03 |
1.Q:Are you a factory or trading company?
A:SEMRI Bearing is specialized in manufacturing and exporting bearings.
SEMRI Bearing have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, SEMRI Bearing are honored to offer you samples.Can you buy a ticket ?
3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
A: SEMRI Bearing MOQ is 1 pc
5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
6.Q:Do you have other products besides thrust roller bearing 81102?
A:thrust roller bearing 81102,thrust roller bearing 81124,thrust roller bearing 29434 Etc.
