Output status: | Normally open; | Material: | Metal; |
Working environment temperature: | -25~+70℃; | Place of Origin: | Shanghai China; |
Port: | shanghai or ningbo; | Packaging Detail: | 100 pieces per carton; |
Brand Name: | qwifm; | Output: | Analog SENSOR; |
Size: | M18; | Insulation resistance: | ≥50 mΩ; |
Theory: | Inductance Sensor; | Description: | Proximity Switch; |
Model Number: | IM18-D1NA08; | Protection grade: | IP67/IP68/IP69; |
Supply Ability: | 100000 Piece/Pieces per Month; | Sensing distance: | 8mm; |
Package Preview: | ; | Payment Terms: | L/C,D/P,T/T,PAYPAL; |
Application: | Industrial Automation; | Warranty: | 1 Year; |
Output way: | NPN; | Usage: | Position Sensor; |
Supply voltage: | 10-30V DC; |

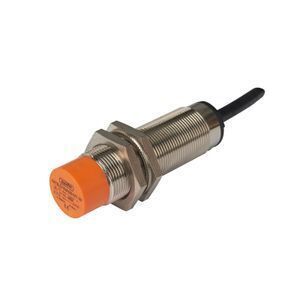

Product model | IM18-D1NA08 |
Sensing distance | 8mm |
Control output | NPN |
Output current | DC, ≤150mA |
Output voltage drop DC/AC | DC(NPN, PNP): Max. 1.5V, 2-wire: Max. 3.9V |
Consumption current | Max. 10mA |
Standard sensing object | 12*12*1(A3 Iron) |
Repeated precision | 0.01 |
Response frequency | Flush: 600Hz, Non-flush: 500Hz |
Working Ambient temperature | `-25℃ ~ +70℃ |
Insulation resistance | ≥50M Ω |
Housing Material | Metal |
Protection grade | IP67 |
Current short-circuit protection | 220mA(Excluding AC output product) |
