Involute Gear Hob Cutter

Supplier: DEDICATED IMPEX COMPANY
Region: Punjab, India
Contact: Mr. Nitin Nath Mittal
Price: $5.00 / >=30 pieces
Min. Order: 30 pieces

Click here to contact

Product details

Port:	NEW DELHI;	Packaging Detail:	Packaging Details: The packaging details are as under : 1. All the HSS Tools are firstly cleaned by oil. 2. Then anti-rust oil is applied to prevent any kind of rust. 3. Afterward, it is wrapped in a PVC Sheet. 4. Then final packaging is done in the Corrugated boxes or Wooden Boxes.;
Model Number:	InvoluteHobCutter320;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram,PayPal;
Brand Name:	DIC TOOLS;	Material:	HSS;
Place of Origin:	Punjab India;	Module:	M0.8-M22;
Supply Ability:	3000 Piece/Pieces per Month;	Usage:	Gear Hob;

Product Description

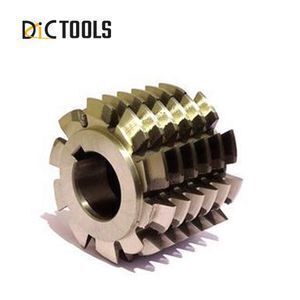

HSS Involute Gear Hob Cutter

1. For spur and helical gears to module pitch

2. 20°pressure angle

3. Basic profile 2 to DIN3972

4. Quality grade A to DIN3968

5. Single start right-handed

6. With keyway

7. HSS Co 5%

Specification:

Module	Outside dia.	Cutting edge length	Total length	Bore dia.	No. of gashes
0.5	50	16	22	22	14
0.75	50	16	22	22	14
1	50	25	31	22	14
1.25	50	25	31	22	14
1.5	56	32	38	22	12
1.75	56	32	38	22	12
2	63	40	46	27	12
2.25	70	50	56	27	12
2.5	70	50	56	27	12
2.75	70	50	56	27	12
3	80	63	69	32	12
3.25	80	63	69	32	12
3.5	80	63	69	32	12
3.75	90	70	78	32	12
4	90	70	78	32	12
4.5	90	70	78	32	10
5	100	80	88	32	10
5.5	100	80	88	32	10
6	115	100	108	32	10
6.5	115	100	108	40	10
7	115	100	108	40	10
8	125	130	138	40	10
9	125	130	138	40	10
10	140	160	170	40	10

Packaging & Shipping

Packaging Details: The packaging details are as under :
1. All the Gear Cutting Tools are firstly cleaned by oil.
2. Then anti-rust oil is applied to prevent any kind of rust.
3. Afterward, it is wrapped in a PVC Sheet.
4. Then final packaging is done in the Corrugated boxes or Wooden Boxes.

Company Information

Dedicated Impex Company is well-reputed manufacturer and exporter of HSS & Carbide Cutting Tools. Our products are manufactured by using best material and modern techniques, which make them extremely up to the standard in this challenging domain. The offered products are highly appreciated among customers due to their corrosion resistance, robust design, optimum finish and high tensile strength. Also, these are available in various sizes, dimensions and patterns in order to meet the requirements of customers.

DIC TOOLS consider quality as an integral aspect of our process as it's not only for satisfies customers but also imparts us with a feeling of contentment. Quality is our mission. We maintain a strict quality management policy, which is religiously practiced within the organization.

FAQ

Q1: Are you manufacturer & exporter??

A1: Yes, we are manufacturer & exporter.

Q2: What is your Core Products?

A2: Our Main Product is HSS & Carbide Cutting Tools.

Q3: What’s Warranty of your product?

A3: One year Warranty for all products

Q4: How long is your delivery time??

A4: 15days to 20 days for normal order, Delivery time depends on order qty.

Q5: free of cost sample?

A5: Depending on your order quantity, after confirmed order.
