KLS micro 2-12 pin SPST Standary Slide type Half Gold/Sn dip switch

Supplier: Ningbo KLS Electronic Co., Ltd.
Region: Zhejiang, China
Contact: Ms Doris Chen
Price: $0.01 / >=100 pieces
Min. Order: 100 pieces

Click here to contact

Product details

Max. Current:	standard;	Supply Ability:	999999 Piece/Pieces per Week;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	1000 pcs;
Brand Name:	KLS;	Max. Voltage:	standard;
Place of Origin:	Zhejiang China;	Model Number:	KLS7-DST;
Certificate:	CE ROHS;	Port:	Shanghai & Ningbo port;

Dear valued customer:

KLS ELECTRONIC is a wholesale manufacture and full range components supplier. we

cooperate with many big distributors in many countries. sorry, our order have limit for

USD500/order,or will add extra documents cost. sample order welcome.Thank you!

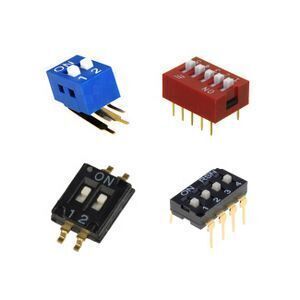

KLS7-DST dip switch

Material:
Cover: PBT plastic (red or blue)
Base: PBT plastic (black)
Operator: POM plastic (white)
Stock: epoxy resin potting
Terminal: tin plated phosphor bronze, contact gold plated 3u"
Sealing tape: polyimide KAPTON
Switching Characteristics:
Switch Capacity: 25mA at 24VDC
Insulation Resistance:100MΩ at 250VDC
Contact Resistance: 50mΩ max.
Insulation strength: 500VAC / 1min
Operation Force : 1000gf max.
Electrical life: 2000 times
Operation Temp:-20ºC~+70ºC
Welding requirements:
Manual welding: 320 degrees C no more than 2 seconds. (30 watt iron max.)
Wave soldering: 260 degrees C no more than 5 seconds, in the welding and cleaning process switch is open state.
