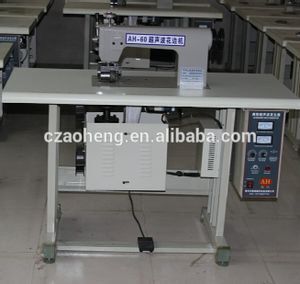

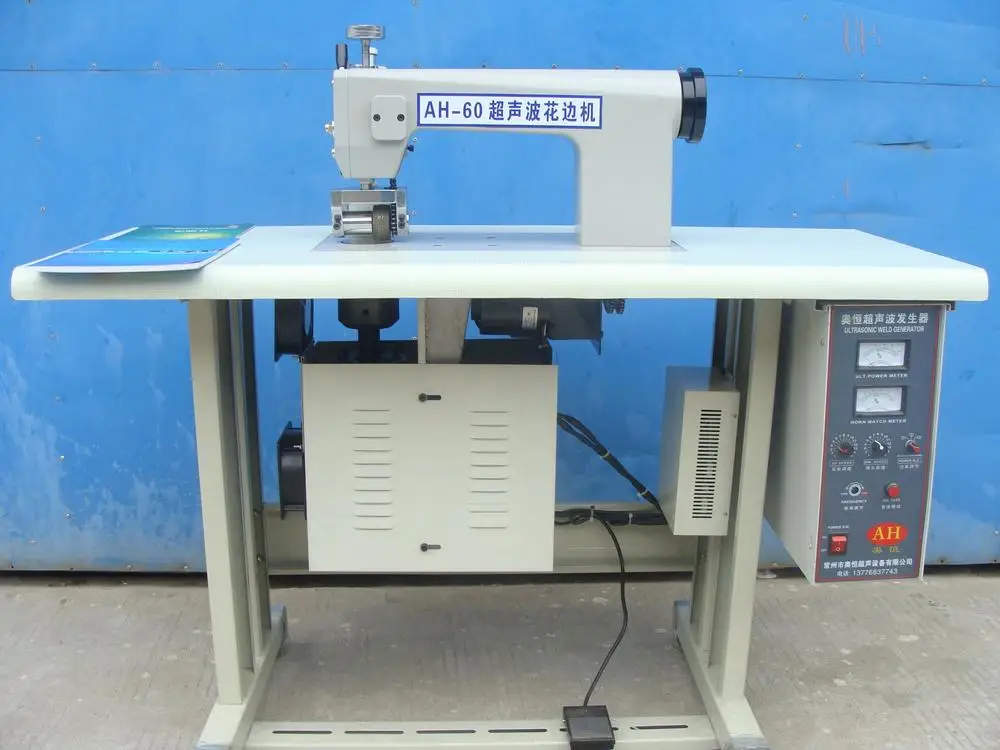

ultrasonic lace machine

Product details
Weight:90kgs;color:silver;
Certification:ISO;Delivery Detail:within 7days;
Condition:New;characteristic:ultrasonic sewing;
Power:2000W;Max Sewing Speed:25m/min;
Place of Origin:Jiangsu China;Port:Shanghai;
Dimension(L*W*H):1200X600X1200 mm;Model Number:AH-60S;
Warranty:1 Year;Automatic Grade:Semi-automatic;
Supply Ability:30 Set/Sets per Day;Payment Terms:L/C,T/T;
Packaging Detail:wooden case or follow the requirements of customer;Voltage:220V;
Max Sewing Thickness:3cm;After-sales Service Provided:Overseas third-party support available;
Brand Name:AoHeng;



Basic components
1. New type PC intellectual ultrasonic generator;
2. 20KHz ultrasonic transducer unit;
3. Bottom mould fixed suspension structure;
4. Single-motor speed adjustment system;
5. Manual roller lifting system;


Characteristics
1. Built-in PC chips, multi-circuit ultrasonic protection system to make the machine run safely;
2. Strong ultrasonic power with three adjustable gears (maximum, medium and minimum), meets the welding requirements of different materials andthicknesses;
3. The performance of the machine reaches international level with automatic frequency tracking system and ultrasonic soft-starting technology;
4. Variety of roller patterns, other roller designs available according to customer requirements;
5. Four times faster than sewing machines, minimal operator training required.


Functions
1. Trimming: Straight or curvilinear edge cutting  and edge treatment for melting,so smooth, no rough edges;
2. Sealing: Two or more layers of fabric stitched together without thread replacing the sewing needles, good welding strength;
3. Hole making: Cut out the various patterns of holes, and treatment of side melting;
4. Slitting: Single or more cutting of the material at the same time, and treatment of side melting without burr;
5. Forming: Simultaneous cutting,sealing and embossing to make production in one time.





Suitable material:



All kinds of artificial leather and fabric, nonwoven fabric, spun-bonded cotton, thermoplastic film, chemical plastic piece. such as nylon, polyster, ABC, PC, PU, PE, PP, PS, etc.





Technical specification

Commodity

Ultrasonic lace machine

Specification

AH-60S

Output(W)

2000W

Frequency(KHz)

20KHz

Voltage(V)

220V

Mould size

Width:0-60mm; Diameter:50-60mm

Working speed

0-25m/min

Welding area (mm)

Ø60mm

Dimension(L×W×H)

1200*600*1200mm

N.W (kg)

90kgs



Application:

The ultrasonic lace machine is easy to be maintained and repaired. It's econonmy. It can be used to make many things such as lace clothing, table napkin, table cloth, non-woven fabric bags(shopping bags), etc
