Protection: | Overload; | Coil Structure: | TOROIDAL; |
Display: | LCD Display; | Port: | Ningbo or Shanghai; |
Model Number: | TC-3000; | Rated Frequency: | 50/60Hz; |
Rated Voltage: | 220V; | Type: | TC-3000; |
Usage: | Power; | Coil Number: | AUTOTRANSFORMER; |
Packaging Detail: | Normal export packing; | Supply Ability: | 5000 Piece/Pieces per Month voltage converter step down transformer 110v 220v TC-3000; |
Application: | Home; | Payment Terms: | L/C,D/A,D/P,T/T,MoneyGram; |
Place of Origin: | Zhejiang China; | Warranty: | 12Months; |
Color: | Black/White; | Phase: | Single; |
Product: | Step down transformer 110v 220v; | Brand Name: | AISO/OEM; |
Item: | Transformer; |

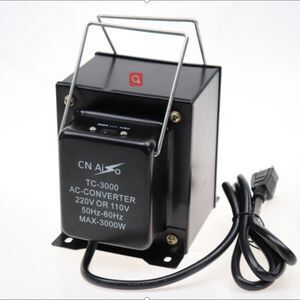

TC-3000 220V to 110V Step Down Voltage Transformer Converter
Quick Reply Professional Consultation Continued Cooperation
ST /TC type step up & down transformer / toroidal transformer/220v power transformer is specially designed for such electronic equipment whose rated AC voltage different from that of the local net voltage. They are safe for use within the rated voltage range.
1. Feature
This series step-up & step-down transformer is an AC voltage converting device.
Using it is to convert the multi-kind net voltages into a general output voltage
under which all the electronic units are
safe for use within the rated power range.
2. Main Technical Data
Phase no.: Single-phase
Input voltage: AC110V or 200V or 220V or 240V
Output voltage: AC110V & 220V.
With fuse protector or with over current protector
Main features:
1. Heavy duty suitable for continuous use.
2. Terminal connection or plug & socket connection.
3. Various types of plug & socket, US, European, Schuko, VDE, UK, Asian, Australian, or as request.
4. Output up to 3 sockets.
5. Input voltage range: 110V/117V/120V/220V/230V/240V
6. Output voltage range: 220V/230V/240V/110V/117V/120V
7. Typical capacity: 100/200/300/500/800/1000/1500/2000/3000/5000/8000/10000VA, or customized
8. Frequency: 50/60HZ
9. Protection : fuse protector or over current protector.
Technical parameters:
Type | Product size(cm) | Package size(cm) | G.W(kg) | QTY |
TC-100VA | 10*6.9*8.2 | 27*27*19 | 14.6 | 12 |
TC-200VA | 11*6.9*8.2 | 27*27*19 | 16.6 | 12 |
TC-300VA | 12.3*6.9*8.2 | 27*27*19 | 20.1 | 12 |
TC-500VA | 12.7*8.5*10.1 | 30.5*22.5*23 | 22.6 | 8 |
TC-800VA | 13.7*8.5*10.1 | 30.5*22.5*23 | 26.25 | 8 |
TC-1000VA | 14.7*8.5*10.1 | 30.5*22.5*23 | 30.6 | 8 |
TC-1500VA | 15*13*15.5 | 31.5*17.5*18 | 27.2 | 4 |
TC-2000VA | 16.5*13*15.5 | 31.5*17.5*18 | 35.7 | 4 |
TC-3000VA | 19*13*15.5 | 29.8*24*20.5 | 24.2 | 2 |
TC-5000VA | 22*13*15.5 | 29.8*24*20.5 | 32.6 | 2 |
1.We can make the products as different’s special require.
2.Flexible lead time
3.We can offer products at different prices
4.We have our own workflow (AISO process)
5.Any way, any time, your problems will be timely reply
FAQ
"Do you have a catalogue? Can you send me the catalogue to have a check of all your products?"
Yes , We have product catalogue.Please contact us on line or send an Email to sending the catalogue.
"Whether can produce as my require?"
"Yes,we can make the products as different’s special require."
"How long the product warranty?"
"Normally, the warranty for the product is 18 months , warmly reception with the calling, visiting and letters, and give the best answers and solution in time from the customers for the technical problem."
"What kind of payment do you accept ? Can I pay RMB ?"
"We accept T/T(Wire transfer),Western Union and Paypal. And you can pay money In RMB. No problem."
"Any requirements or question,welcome to ""Send"" us an e-mail Now!!!
It's our great honor to do services for you! "
