Condition: | New; | Warranty: | 1 Year; |
After-sales Service Provided: | Free spare parts; | Applicable Industries: | Hotels,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Retail,Food & Beverage Shops; |
Showroom Location: | None; | Power: | 1.1KW; |
Weight: | 45; | Product name: | oil filter machinery; |
Color: | Clients' Requirement; | Number of filter frames: | 6; |
Certification: | ce; | After Warranty Service: | Video technical support; |
Productivity: | 40kg/time; | Features: | High Efficiency Low Cost; |
Model: | 6YTP-24; | Operating Voltage: | 220/380V; |
Usage: | rough and fine filtration of oil; | Packaging Detail: | wooden box pack and steel box; |
Local Service Location: | None; | Brand Name: | Canfo; |
Package Preview: | ; | Place of Origin: | Hunan China; |
Dimension(L*W*H): | 50*32*72cm; |
china oil filter machinery used for rough and fine filtration of oil in vegetable oil processors

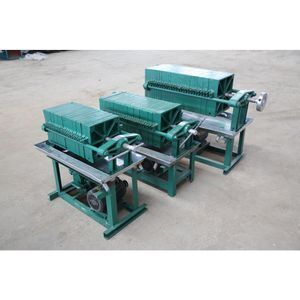

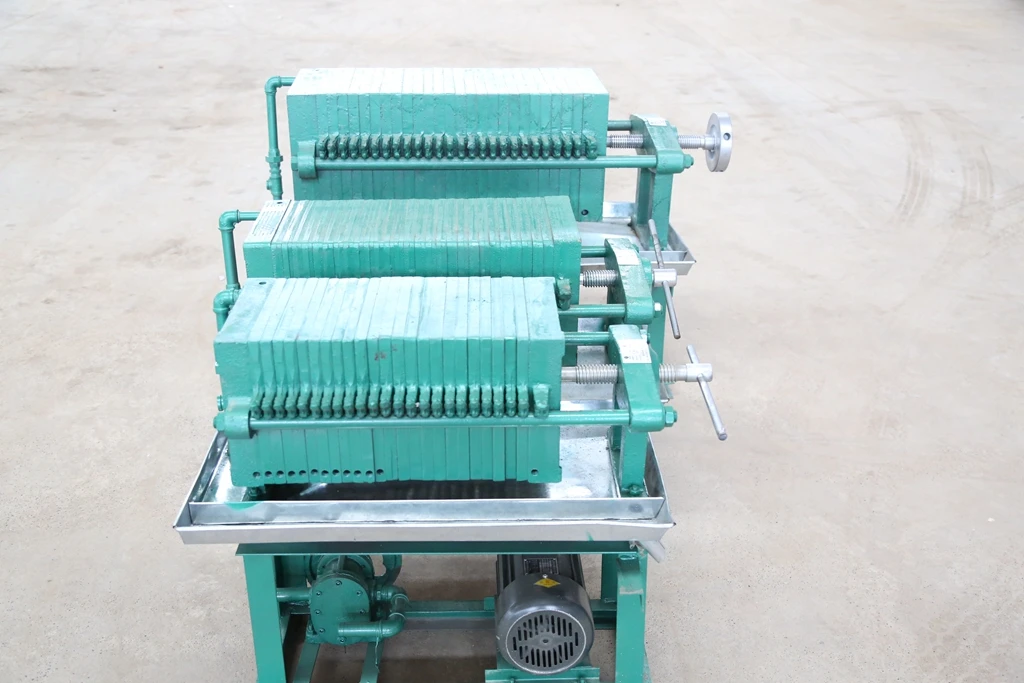

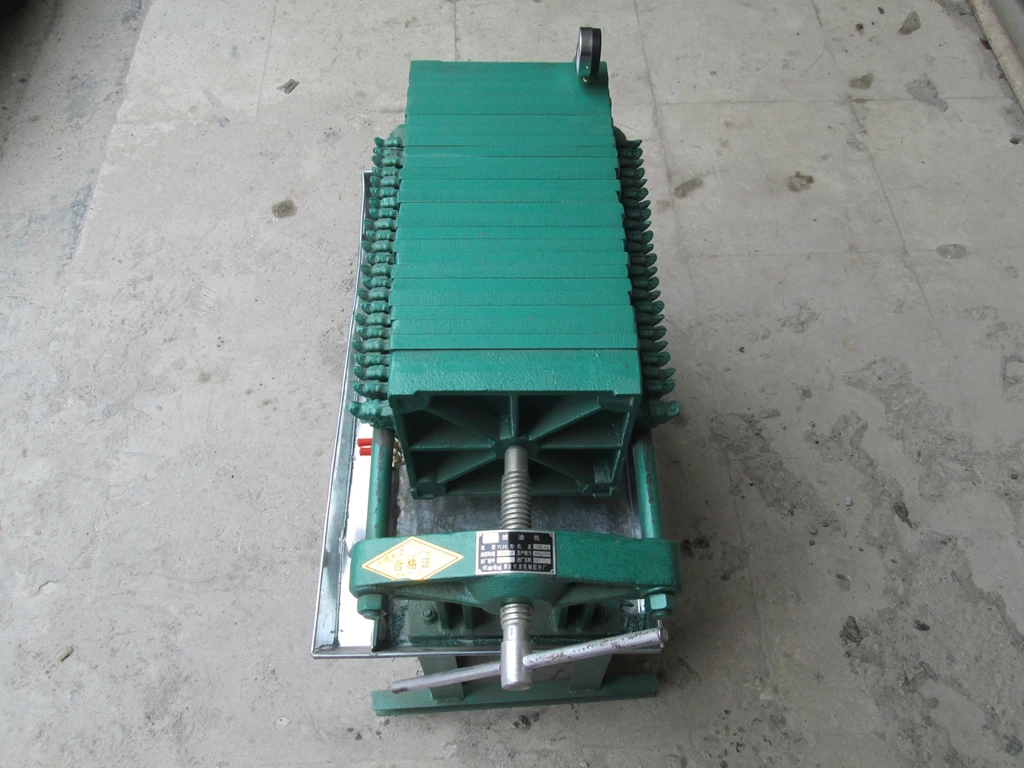

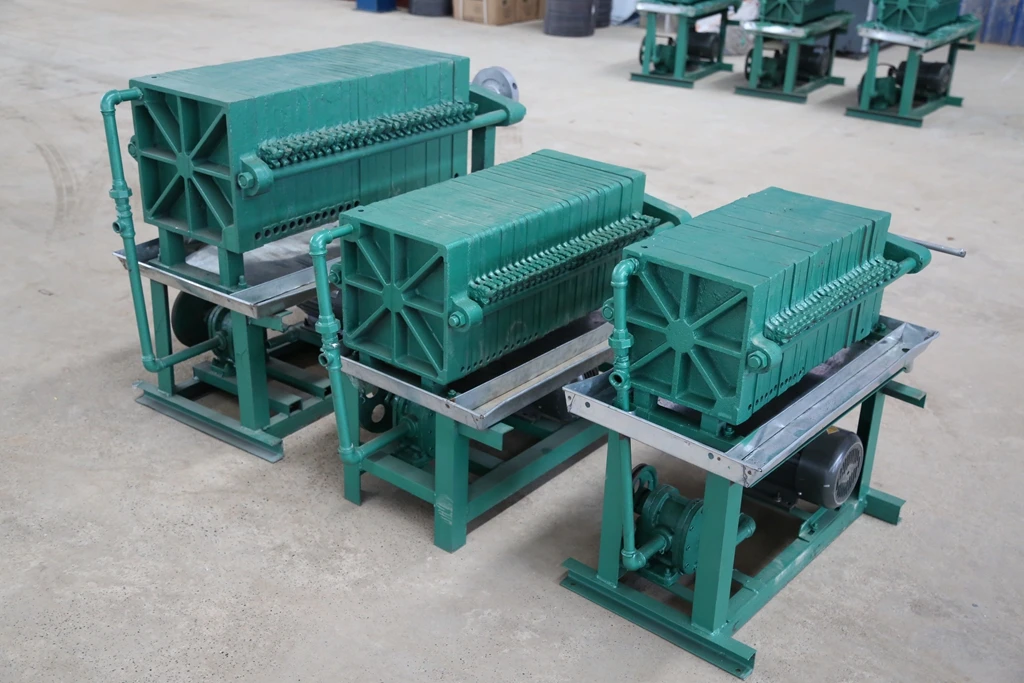

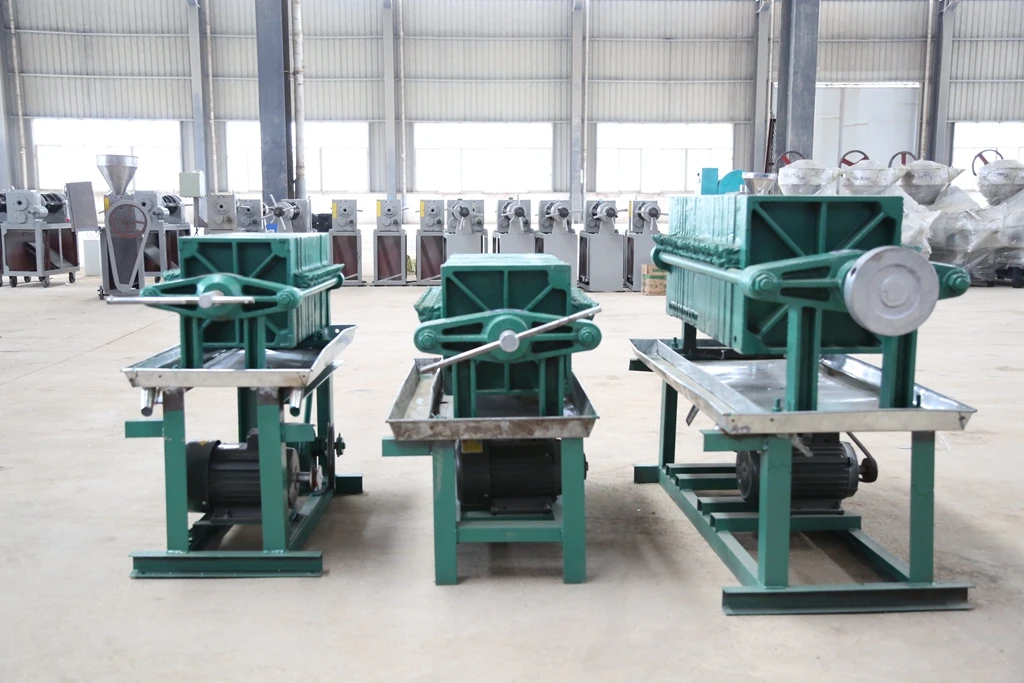

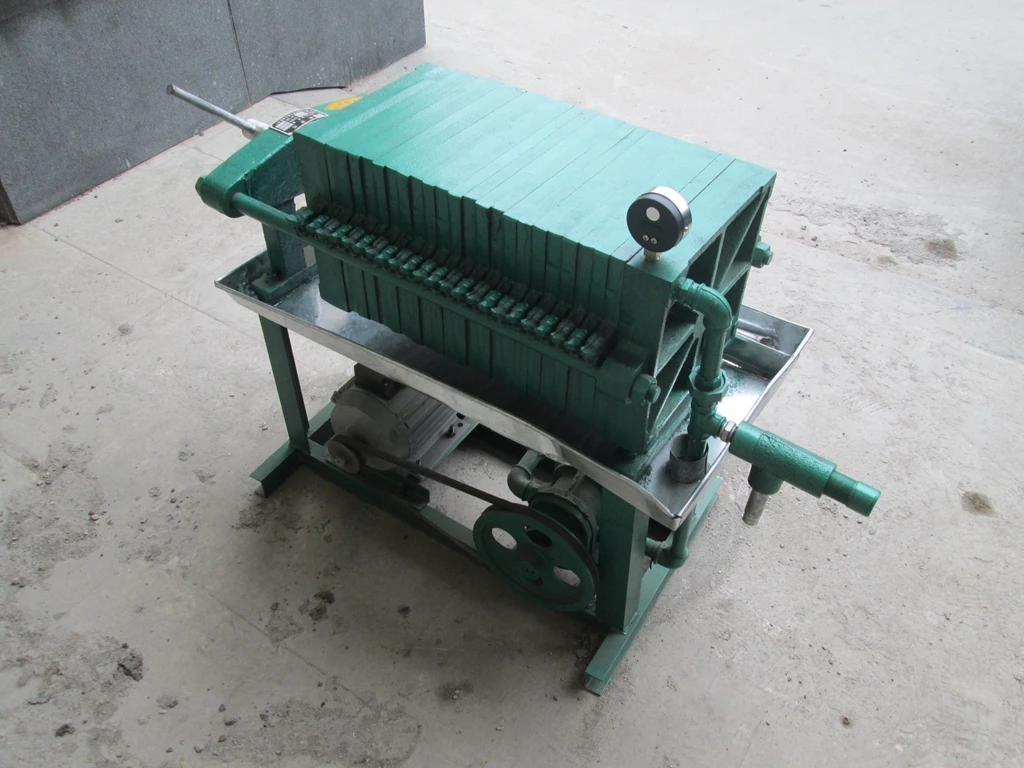

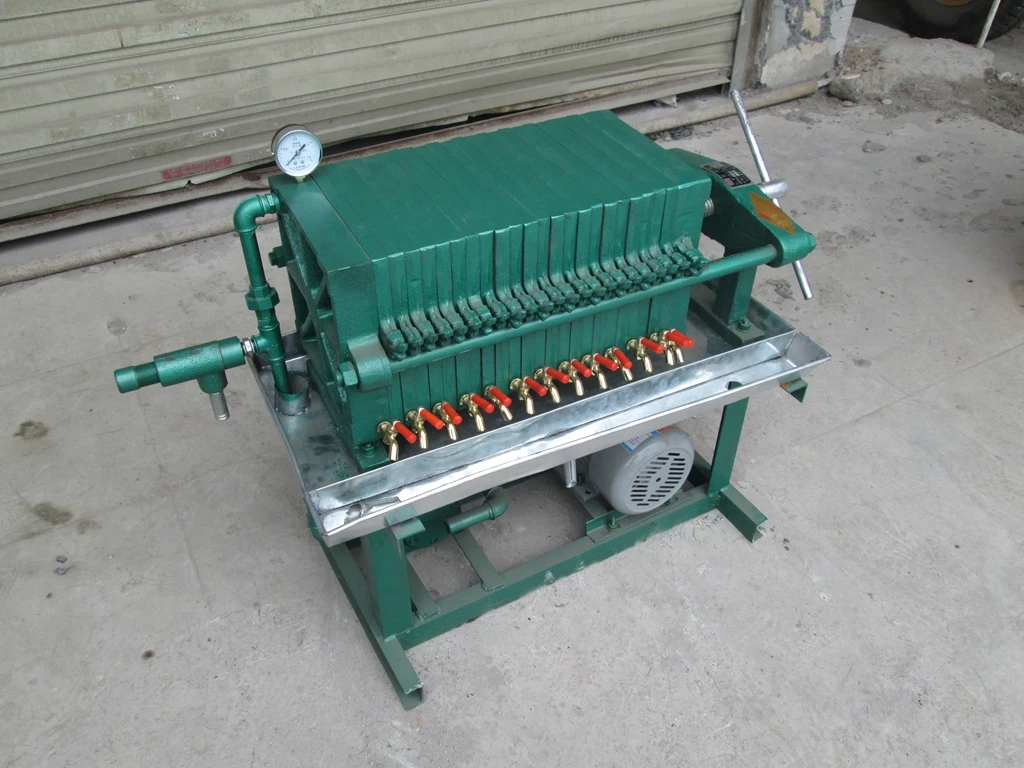

6YTP series plate and frame oil filter is mainly used for oil and slag separation of hair oil. It is suitable for the filtration of oil from various oils such as rapeseed, tea seed, peanut, sesame, soybean and oil sunflower. It can also be used to filter other oils or turbid liquids containing solid impurities. The filter oil is good and the operation is simple. Compared with the previous design, the gear pump process is used, the pressure is higher, and the failure rate is lower. It is an ideal equipment for the filtration production of various types of grease.
Performance parameter:
Product number | 6YTP-24 | 6YTP-26 | 6YTP-30 | 6YTP-35 | 6YTP-40 |
Dimensions (mm) | 500×320×720 | 800×400×780 | 950×400×800 | 1250×470×880 | 1500×560×930 |
Product weight (kg) | 45 | 180 | 260 | 380 | 580 |
Packing size (mm) | 650×440×850 | 950×520×810 | 1100×520×930 | 1410×610×1100 | 1660×700×1150 |
Number of filter frames | 6 | 13 | 14 | 14 | 20 |
Filter frame size (mm) | 240 | 260 | 300 | 350 | 400 |
Motor power (kW) | 1.1 | 1.5 | 1.5 | 1.5 | 1.5 |
Production efficiency (Kg/h) | 40 | 100 | 140 | 200 | 300 |
Working voltage (V) | 220/380 | 380 | 380 | 380 | 380 |
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos, the raw material, good material (which is you want) ,bad material (which is you want to discard).we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C, T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc
