Condition: | Used; | Brand Name: | Guoan; |
Bale weight: | 15-20kgs; | Packaging Detail: | Iron Crate with Film Covering; |
Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,Trade Assurance; | Delivery Detail: | Within 15 working days; |
Color: | Green Red Yellow; | Weight: | 400; |
Match power: | 25-50 HP; | Operating Speed: | 2-5km/h; |
Capacity: | 60-90 Bales/Hour; | Type: | Round Baler; |
Application: | Bale Hay Rice Wheat Straw; | Certification: | CE ISO; |
Machine Weight: | 400kg; | Model Number: | 850; |
Port: | Qingdao; | Delivery time: | 15 days; |
Bale size: | 50*70cm; | Place of Origin: | Shandong China; |
Dimension(L*W*H): | 115*130*120cm; | Supply Ability: | 500 Set/Sets per Month; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Warranty: | 1 Year,12 month; |
Pickup width: | 700mm; | Packaging: | 115*115*116cm; |
Year: | 2016; |

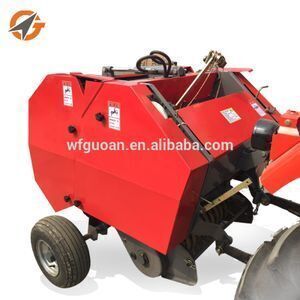

Silage packing machine mini baler baling machine
The mini round baler is mainly used to collect and pack wheat, corn and rice straw that can be used for breeding industry and biomass power generation. Mechanization requirements can be met in the plains and half slope. More than 95% of the machine parts are produced by our own factory, so we can completely control the quality of the product.
Model | 9YKD-50 | 9YKD-60 | 9YKD-70 | 9YKD-90 |
Model Number | 850 | 870/870F | 1070/1070F | 1090/1090F |
Bale size(dia.*width) | 50*70cm | 60*70cm | 62*95cm | 82*95cm |
Machine Dimension (L*W*H) | 115*130*120cm | 131*146*138cm | 131*167*156cm | 157*167*170cm |
Bale weight | 15-20kg | 20-30kg | 30kg | 50kg |
Pickup width | 700mm | 800mm | 950mm | 950mm |
Drum speed | 200r/m | 200r/m | 200r/m | 200r/m |
Math power | 25-50hp | 25-50hp | 25-50hp | 25-50hp |
PTO speed | 540r/m | 540r/m | 540r/m | 540r/m |
Efficiency | 2-5km/h | 2-5km/h | 3-8km/h | 3-8km/h |
Productivity | 1500-3000Kg/h | 1500-3000Kg/h | 1950-3900Kg/h | 2500-5100Kg/h |
Density | ≥115Kg/m3 | ≥115Kg/m3 | ≥115Kg/m3 | ≥115Kg/m3 |
Force Feeding | / | 870F have | 1070F have | 1090F have |
OUR ADVANTAGE
Contrast | Common baler | Our GUOBAN baler |
Pickup system | When common pickup system pick the wet corn stalk, it can lead to plugging | Our new Force Feeding model solve this problem |
Molding roller | Common machine roller is made of welding, welding parts easy to fall off when it working ,the equipment and the operator has hidden a huge safety trouble. |
Our equipment is made of a stamping forming technology, is not easy to wear and tear, no hidden dangers.
|
Automatic solenoid valve | Common machine is semiautomatic to release the bale, solenoid valve also will rust,etc | Our latest automatic solenoid valve can automatically put the bale, and the main material is aluminum alloy, not easy to rust. |
Sealed bearing | Common equipment use no seal or single sealed bearing, poor sealing effect, easy to dust, life is short, and easily damaged. | All parts are made of double sealed bearing, bearing using time is longer, equipment operation effect is better. |
High strength chain | Common chain is rough and thinner, not wear-resisting, easy to fracture. | Our chain adopt high quality alloy, it is not easy to fracture, long life, good transmission effect. |
OUR INNOVATION
1.adopt the 20-50hp tractor as traction, more flexible and convenient;
2.the pick up device adopt FORCE FEEDING, with a good collecting and low loss rate; our machine can pick up the straw smoothly without disturbing the grass to avoid rubbing the straw;
3.the side protecting plate of pick up device is in favor of gathering the straw;
4.the driving device symmetrically arranged on axial, with lower center of gravity and good stability.
|
We are scrupulous about every detail,Professional QC and strict checking procedure ensure our work and ganrantee each piece of product which is in its best presentation.
Weifang Guoan Engineering Machinery Co., Ltd., founded in 2006, is a comprehensive technology company integrating scientific research, production, sales and services. Our company is formerly known as Weifang Anguo Fine Casting Factory, established in 1996, produced mainly the agricultural equipment for Foton Lovol. 20 years of experience of mechanical development and production guarantee strongly the quality of production. Since 2012, our company independently developed and produced 9YKD-60 series round baler, rice chopper and other products.
We have the first class quality and service, welcome all the new and old customers to visit our factory and negotiate the cooperation.
Our products have CE certification, at the same time we passed the ISO9001 quality system certification by ZJQC every year. Our product quality is higher than the market standard, won the customer's praise.
Packing&delivery | ||
MODEL | 850/850F | 870/870F |
20FT | 20units | 16units |
40FT | 40units | 36units |
HOW TO PACKING
| By iron crate with film cover |
1.Delivery time: Within 15days after receiving clients' payment
2.Payment Terms :T/T/paypal /trade assurance
3.Quality Gurantee: Quality gurantee term is for 1 years, Malfunctions which are caused by operation mistakely will be reponsible for customers
1)1. Which machines can be used to move your round-balers?
Our round-balers can be adapted to any brand and model, towed by 20-50 horse power tractors.
2. Are your machines suited to any type of ground?
Yes, our machines can work on any ground, on flat and hilly ground.
3.I have a meadow area that requires grass and leaves to be collected, can your machines help me?
Yes, our machines also can collect leaves and grass.
4.Which solutions do you bind the bales?
We are able to bind the bales by hemp rope. The binding operation is completely automatic.
5.Where can we buy the machine's parts?
Our company can provide machines for your any time
