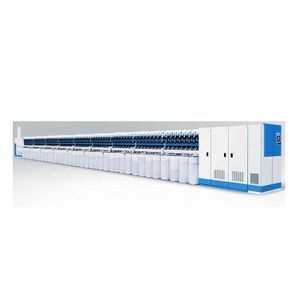

2020 Hot Design Heavy Duty High Speed Rotor Spinning Machine Series

Product details
Operating height (mm):1560;Yarn guiding speed m/min:40-160;
Packaging Detail:1.Export standard containerized 2.Nuded packing 3.Container.;Port:Shanghai; Ningbo;
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Head space (mm):230;
Showroom Location:None;Brand Name:JINGDA;
Automatic:Yes;Applicable Industries:Manufacturing Plant;
Place of Origin:Zhejiang China;Twisting degree:220-2250;
Certification:CE; ISO 9001,CE; ISO 9001;Production Capacity:100000r/min;
Pneumatic moto purging volume (m3/h):5500;Type:Spinning Production Line;
Dimension(L*W*H):Inquire us;Suitable fiber length (mm):<40;
Power:64KW;Spinning Method:Rotor Spinning;
After Warranty Service:Video technical support,Online support,Field maintenance and repair service;Weight:Inquire us;
Supply Ability:100 Set/Sets per Month Spinning Machine;Splitting roll seppd:5500-9000;
Warranty:1 Year;After-sales Service Provided:Video technical support,Field installation, commissioning and training,Field maintenance and repair service,Engineers available to service machinery overseas;
Yarn feeding bobbin: outer dia:400x914;Condition:New;
Local Service Location:None;Application:Spinning Line;

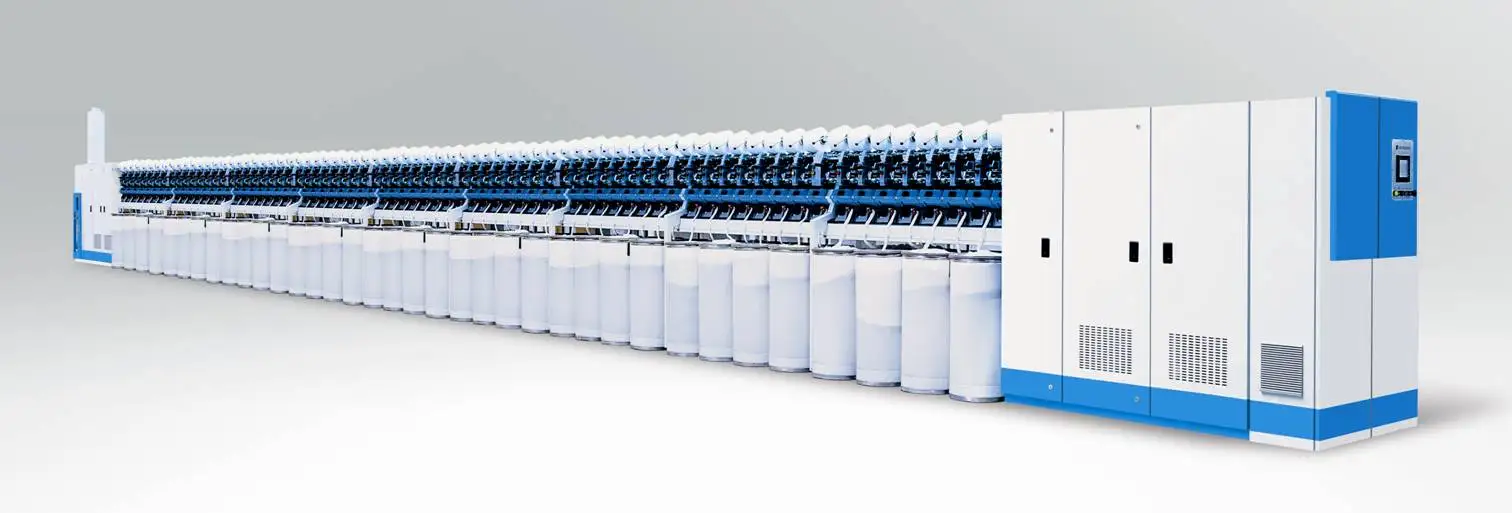

2020 Hot Design Heavy Duty High Speed Rotor Spinning Machine Series

Introduction:Technical specification

1. The minimum and max. tex: 120-150 (5s-36s)

2. Suitable tex: 83.2-28 (7s-21s)

3. Cotton to be fed: 2500-5000

4. Rotor speed (r/min): 100000

5. Yarn guiding speed m/min: 40-160

6. Splitting roll seppd: 5500-9000

7. Twisting degree: 220-2250

8. Pneumatic moto purging volume (m3/h): 5500

9. Suitable fiber length (mm): < 40

10.Operating height (mm): 1560

11. Yarn feeding bobbin: outer dia: Φ400x914

12. Head space (mm): 230

13. Rotor diameter (mm): Φ400 or Φ40

14.Head number: 192 or 240

15.bobbin specs (outer diameter*height)(mm): Φ54x170

16.take-up specs (diameter*height): Φ300*150

17. Loaded weight(kg): 3

18.Crossing angle: 300,330,390,420

19. Yarn breaking (Filament per 1000 filament per hour):<=50

20. Purification efficiency: 60-80

21. Pressure in rotor intracavity: >=5

22. Mcchanical stretching times: 32-220

23. Tension stretching times: 0.93-1.06

24. Total power: 64kw







  1. Does one machine can only produce one size?
    Not exactly, it depends on the machine.
  2. Do you have after sales support?
    Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
  3. How to visit your company?
    We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
  4. What can you do if the machine broken?
    Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
  5. Can you be responsible for transport?
    Yes, please tell us the destination port or address. we have rich experience in transport.
  6. You are trade company or factory?
    We are Manufacturer.
  7. Why your price is higher than others?
    As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
  8. Do you have overseas engineers?
    Yes, we not only provide overseas engineers, but also provide technical training.
  9. Do you provide customized?
    Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
