NSK Bearing 1207K Self aligning Ball Bearing NSK

Product details
Country of origin:Japan;Single package size:7.5X4.8X2 cm;
Place of Origin:Japan;Bearing brand:NSK;
Clearance:C0, C3;Sample:Avaliable;
Precision Rating:P0 P6 P5 P4 P2;Application:For machinery;
Model Number:1207 K;Package Preview:;
Number of Row:DOUBLE ROW;Applicable Industries:Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Farms,Retail,Energy & Mining,Car, motorcycle, machinery;
Packaging Detail:Single box or according to buyers requirement;Bearing model:1207K;
Seals Type:Open;Service:OEM;
Type:BALL;Cage:Brass cage, steel cage;
Single gross weight:0.32 KG;Selling Units:Single item;
Brand Name:NSK;Structure:Self-Aligning;
Material:Chorme Steel;Feature:Stable Performance&low Voice;

High Quality NSK brand Self aligning Ball Bearing 1207K



Specifications



Brief Info:

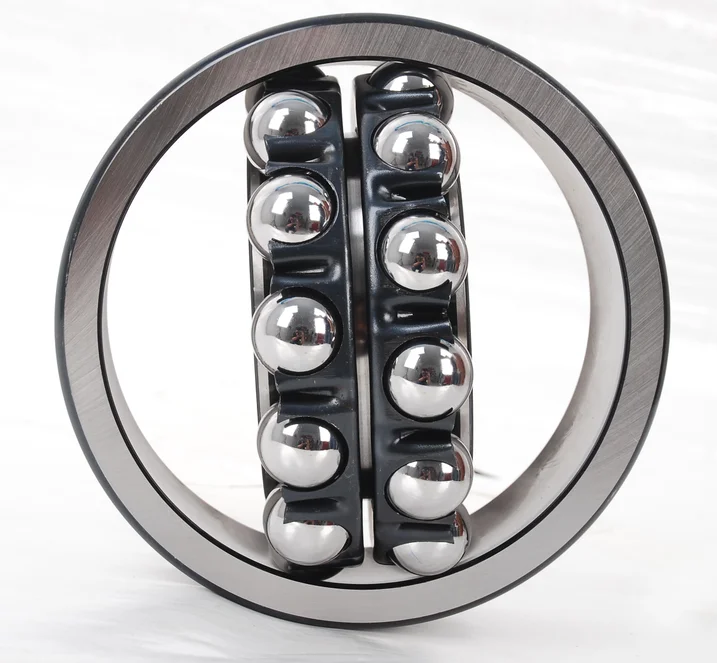

The components of the self aligning ball bearing include two rows of balls, a cage, an inner ring, and an outer ring with a common concave sphered raceway.This type of bearings is self-aligning and insensitive to angular misalignments of the shaft relative to the housing. The bearings are produced in several design: open bearings with the basic design, sealed bearings, open bearings with an extended inner ring.The self alignning ball bearings have the lowest friction of all rolling bearings.The bearings are available with a cylindrical bore or with a tapered bore in certain size ranges. Self-aligning ball bearings have two rows of balls and a common concave sphered raceway in the outer ring. The bearing is consequently self-aligning and insensitive to angular misalignments of the shaft relative to the housing. It is particularly suitable for applications where considerable shaft deflections or misalignment are to be expected. Additionally, the self-aligning ball bearing has the lowest friction of all rolling bearings, which enables it to run cooler even at high speeds.

Features:
When shaft shell deflection occurs, they can be automatically adjusted without increasing the burden on the bearings. They can withstand higher radial load, but also bear certain axial load. This kind of bearing's outer ring raceway is spherical, aligning it with the performance, when the bend or tilt axis force leaves the center line of the inner and outer rings relative to the center line of slope less than 1 ° to 2.5 °, the bearings can still work.With two structures of bore cylindrical or tapered and retainers made of steel sheet or synthetic resins, the bearings' spherically formed outer ring raceways allowes for misalignment within 3 degree deflection between inner ring and outer ring so as to compensate concentricity and deflection errors.

Product line:


Mini-series: 10x, 12x, 13x
General Series: 12xx, 13xx, 22xx 23xx

Typical applications:
Aligning ball bearings are widely applied to heavy loads and shock load, precision instruments, low noise motors, automobiles, motorcycles, metallurgy, mill, mining, petroleum, paper, cement, squeezed sugar industry and general machinery.



Suffix definitions of Self-aligning ball bearings:
C3: radial clearance than ordinary clearance
K: 1/12 taper tapered bore
K30: 1/30 taper tapered bore
M: Ball guided machined brass cage
2RS: with both ends of closures
TV: ball guide glass fiber reinforced polyamide (nylon) solid cage

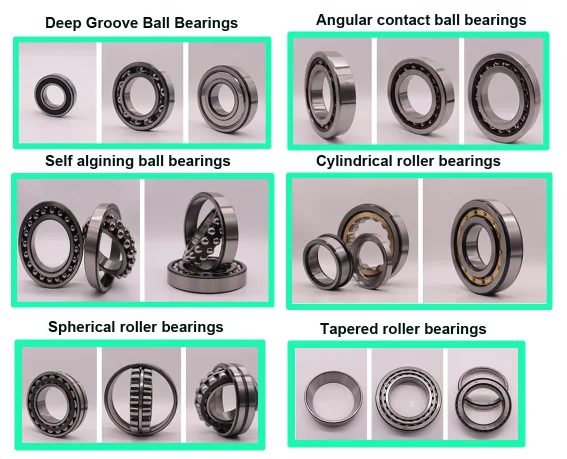

Bearings Pictures
