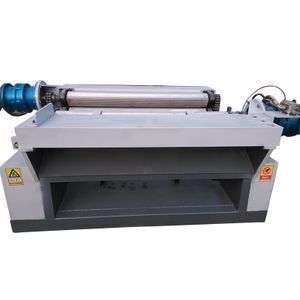

Factory supplier wood log debarker plywood veneer debarking machine

Supplier: Linyi Shunkai International Trade Co., Ltd.
Region: Shandong, China
Contact: Mr Gavin Zhang
Price: $8000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Shandong China (Mainland);	Voltage:	380/400/415V;
Materials:	Stainless Steel;	Certification:	CE ISO;
Weight:	4500kg;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Peeling Rate:	98%;	After-sales Service Provided:	Engineers available to service machinery overseas;
Production Line:	Design and Supply;	Spindle Speed:	52m/min;
Condition:	New;	Wood Diameter Range:	150-500mm;
Wood Loss Rate:	<1%;	OEM:	Accept;
Dimension(LWH):	310020501600mm;	Power(W):	20.5kw;
Colour:	Green or as Clients Requirements;	Supply Ability:	10 Set/Sets per Year;
Wood Length Range:	1400mm , 2700mm;	Brand Name:	SK;
Port:	Qingdao port;	Functions:	Remove the bark of logs;
Packaging Detail:	Nude packing by container or Customized packaging type. Factory supplier wood log debarker plywood veneer debarking machine;	Warranty:	1 Year;
Motor:	Siemens or ordinary;

Product Description

Factory supplier wood log debarker plywood veneer debarking machine

1. Product Description

Log Debarker Machine are widely used in the all types of plywood (panel), veneer making and woodworking industries for log bark discharger, wood discharger. This machine is hydraulically operated and can work continuously in whole process. In conventional

method log bark used to discharge by man power result low production and costly, so for prevent this problem we discovered a new technology machine for discharge (remove) bark of wood log. This is the new generation wood debarking machine, this machine

method is very better as compare to conventional method.

2. Features:

1.After the bark peeling could protect peeling knife in veneer peeling step, improve veneer grade.

2.Adopts rotary cutting principle of non-chuck rotary lathe.

3.Hydraulic pressure drive into the constructions, can quickly and effectively remove bark and complete log the round work.

4.One debarker machine can supply with two rotary lathe, save about five or six people.

5.Hydraulic feeding, can debarking and roundup small size raw log.

6.Competitive price and quality.

3. Parameters

Parameters Hydraulic style wood bark peeling machine

Name	Wood log debarker
Model	RF-LD-1400	RF-LD-2700
Usage	Tree bark peeling	Tree bark peeling
Workable wood log diameter	150mm-500mm	150mm-500mm
Workable wood log length	1400mm	2700mm
Wood loss	No more than 2%	No more than 2%
Debarking rate	More than 95%	More than 95%
Rotary speed	160r/s	160r/s
Debarking speed	45m/min	45m/min
Voltage	380V	380V
Motor power	20.5kw	30kw
Size	310020501600mm	450024001600mm
Weight	4500kgs	7500kgs

4. Main advantages

1). It can be customized by capacity, budget, factory size, Raw material size etc, design all project.

2). Our Log Debarker Machine is high efficiency and durable.

3). Our Log Debarker Machine is designed by 25 years experience engineer, rich experience and high technology.

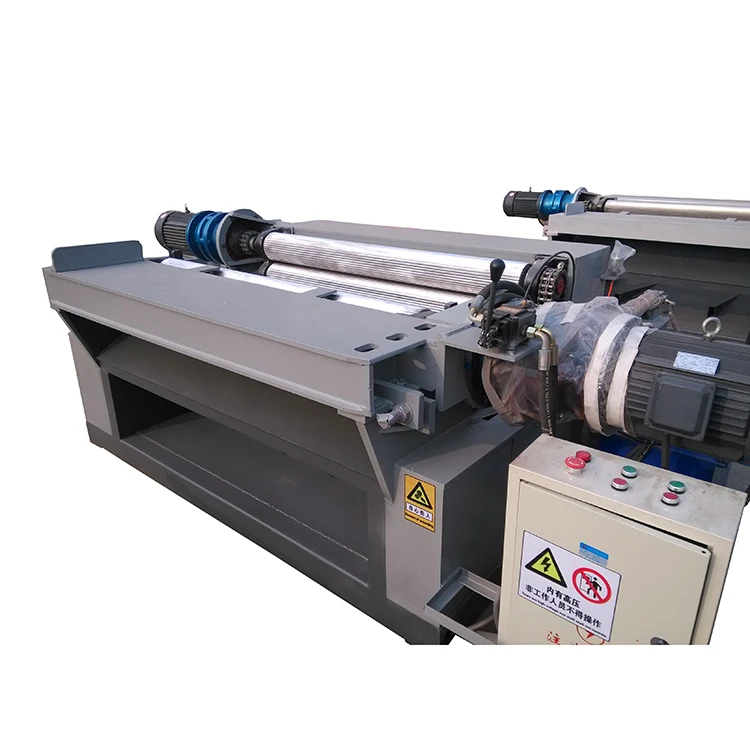

5. Product Show

5. Packing and Delivery

1.Nude packing by container or Customized packaging type.

Port of shipment: Qingdao port or according to the client request.
