20ft 40ft Standard used ISO tank container

Product details
Insulation:Multi-Layer super vacuum insulation;Capacity:20Ft;
Length (feet):20';Port:Tianjin, Qindao, Shanghai port;
Certification:ISO9001;Packaging Detail:20ft 40ft Standard used ISO tank container:Nude Package or According to Customer's Requirements;
Medium:LOX ,LIN, LAr , LCO2;Max Loading Weight:34000KGS;
Type:Tank Container;Supply Ability:50 Set/Sets per Month;
Internal Dimensions(l x W x H)(mm):5898*2352*2352mm;Name:20ft 40ft Standard used ISO tank container;
Type:Tank Container;External Dimensions(l x W x H)(mm):6058*2438*2591mm;
Length (feet):20;Brand Name:chengde;
Dimension(L*W*H):Customer'demand;Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Designed pressure:1.76MPA;Place of Origin:Henan China (Mainland);
Certification:ISO9001,CE,ASME;Warranty:One Year;
Product Description

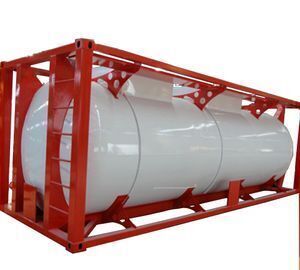

20ft 40ft Standard used ISO tank container
Tank container is a stainless steel pressure vessel installation the fastening external framework. the tank liner mostly adopted 316 stainless steel . the majority of tank are with steam or electric heating device, inert gas protection device.

Product parameter
NameParameter
Model 20Ft
Working Pressure(Inner Tank)1.76MPa
Design Temp(Inner Tank)-196°C
Inner Material16MnDR
Outer MaterialQ345R
Insulation TypeHigh Vacuum multilayer
Inner tank wall thickness20mm
Outer tank wall thickness6mm
Loading medium

LO2,LN2,LAr,LNG

Design standard

a.GB150

b.GB/T 18442< Cryogenic >Insulation Pressure Vessels>



c.TSGR0004

d ASME CE CU-TR if Special requirements

We can customize the cryogenic tank of special capacity and pressure with different design standard or certificate(GB ASME CE CU-TR INMETRO etc)















































































Design proposal for the 20feet ISO tank container:
1,Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mm baffle;
2,Two feed inlets,bigger manhole covers, 2 NOS. pressure vent valves( breather valve) , at the end of the bottom , DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
3,Framework is made of High quality steel, each one ladder at back and forth. With two acid resistant tube, two 4kg fire extinguishers.



Our Products



ModelInsulation TypeWorking pressure(Mpa)Design Temp(°C )Loading medium
10FtHigh vacuum multilayer0.9-196°C LIN,LOX,LAr,LNG
20Ft1.76-196°C LIN,LOX,LAr,LNG
1.8-196°CLIN,LOX,LAr,LNG
2.1-196°CLIN,LOX,LAr,LCo2,LNG
2.14-40°CLCo2
40Ft0.7-196°CLNG
20FtSunshade-plate2.1-40°CLPG

Our certificate



Company Information









Related Products

 Our company also produces

 Cryogenic LOX/LN2/LAr storage tank,

 Aerated barge (water stations),vaporizer,Large cryogenic liquid storage tank,

 LNG Refueling Station,LNG filling station pump skid,

Oxygen, argon, nitrogen cryogenic liquid filling bottles of pump,

liquid carbon dioxide pump,centrifugal cryogenic liquid pump,

liquidnature gas pump for pump system,High-pressure liquid natural gas pump,

cryogenic liquid flow pump,Steam heated water bath vaporizer,

Electric heating bath type evaporator,Self-operated pressure regulating equipment,

Natural gas pressure regulator,Gas filling bar,omnibus bar.
