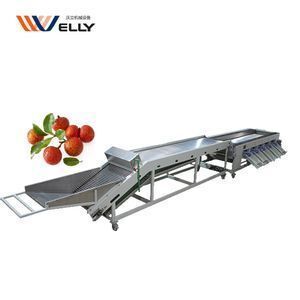

litchi lychee grading machine/ cherry tomato sorting grading machine/ fruits classifying sorter machine

Supplier: Henan Welly Machinery Equipment Co., Ltd.
Region: Henan, China
Contact: Ms Berry Yang
Price: $6500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Local Service Location:	None;	Suitable for:	Round Shapes;
Weight:	1000kg;	Warranty:	2 years;
MOQ:	1set;	Power:	1.65kw;
Grade level:	3-8 Levels (customize );	Machinery Function:	grading,sorting,classifying;
Application fields:	Snack food factory,Fruit processing plant,Cooking oil factory,Vegetable processing plant,Seasoning plant,Frozen food Factory;	After-sales Service Provided:	Video technical support;
Showroom Location:	None;	Place of Origin:	Henan China;
Payment Terms:	L/C,T/T,Western Union,MoneyGram;	Raw material:	Fruit,Vegetables,Nuts;
Voltage:	customizable;	Port:	Any port in china;
Output product name:	litchi lychee grading machine;	Model Number:	WYFL-4A,WYFL-5A;
Dimension(LWH):	8700-1400*1000 mm;	Condition:	New;
Certification:	CE;	Usage:	Fruit Sorter;

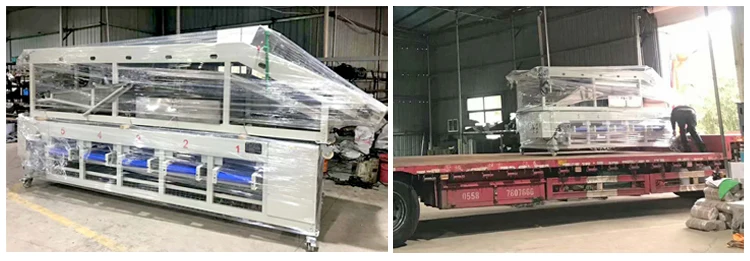

Package:	Standard Wooden Packaging;	Packaging Detail:	20 feet cabinet or 40 feet cabinet, singe machine is packed in wooden cases;
Name:	litchi lychee grading machine;	Advantage:	Save Labor;
Color:	Grey(Could;	Brand Name:	WELLY;
Applicable Industries:	Hotels,Food & Beverage Factory,Farms,Restaurant,Food Shop,Food & Beverage Shops;	Key Selling Points:	Long Service Life;
Material:	SUS 304 / Carbon Steel;	Sorting Way:	Fruit Size;
After Warranty Service:	Video technical support;	Supply Ability:	50 Set/Sets per Month;

litchi lychee grading machine/ cherry tomato sorting grading machine/ fruits classifying sorter machine

Product Description

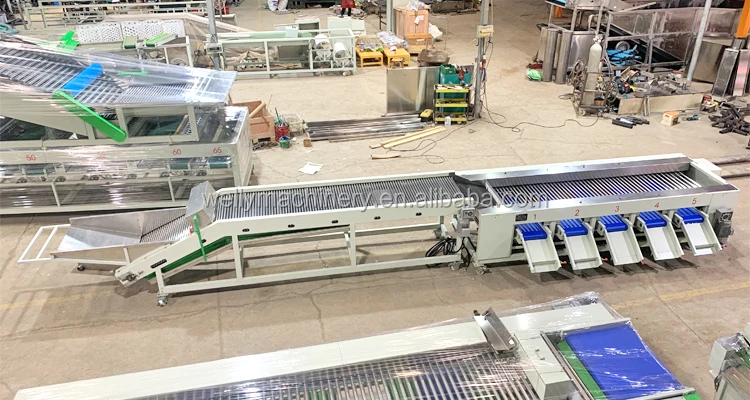

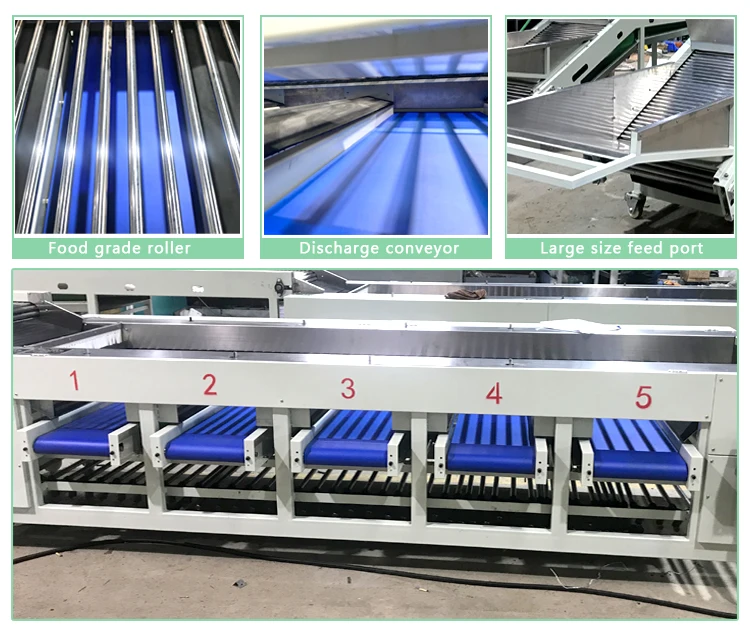

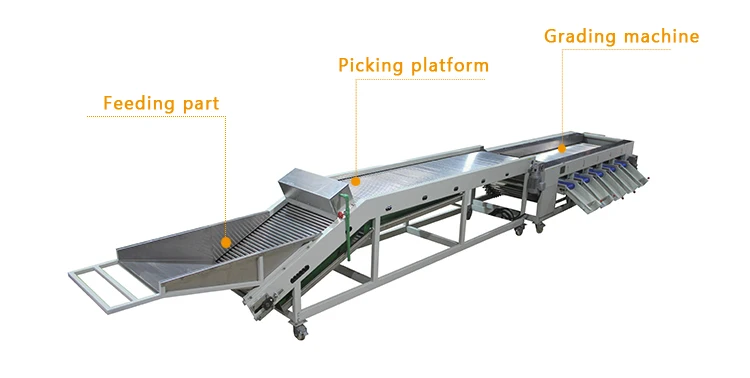

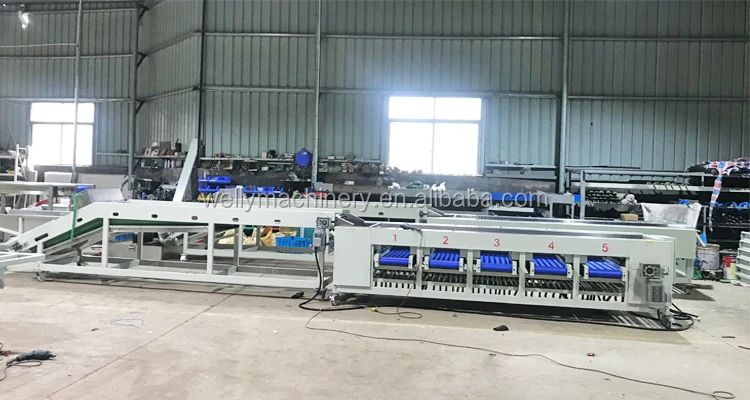

1. The elevator can elevate lychee automatically and uniformly through rollers’ auto-rotation, there is 3m length picking table for workers to pick out unqualified lychee, the sorting machine is through bearings to rotate and drive the rollers move forward parallelly, and gradually increase the interval between rollers, so as to realize the corresponding sorting size for lychee, the sorted lychee will be drop onto the outlet conveyor and conveying into collection basket. The sorting size can be adjusted freely.

There is buffer cushion below the rollers, so it will not damage the lychee when drop down.

2. The machine frame host materials adopts laser cutting, attractive and durable.

3. The machine appearance adopts static electricity spraying plastics, good rust prevention performance.

4. The motor adopts JMC gear reduction motor, high pulling torque, not easy to be hot.

5. The sorting motor, elevator motor, and frequency converter are independent control, small electrical loading.

6. The control switch adopts Siemens brand, breaker adopts Schneider brand, frequency converter adopts Gtake brand, high quality.

7. We can customize this machine into 4 sorting levels based on your lychee size: 12mm-50mm.

8. Good performance, stable running, long service life.

Parameters

Model	Sorting level	Power	Capacity	Machine size
WYFL-4A	4 levels	1.65kw	2~3ton/h	8000×1400×1100mm
WYFL-5A	5 levels	1.65kw	2~3ton/h	8700×1400×1100mm
