After-sales Service Provided: | Free spare parts; | Material: | SS 304,SS 316,Carbon Steel; |
Type: | Backwashing filter; | Packaging Detail: | One set per plywood box; |
Voltage: | 380 or 440V; | Brand Name: | ECOFINE; |
Inner housing: | epoxy coating if carbon steel material; | Weight: | 300-5000KGS; |
Controller: | Touch Panel or Switch Panel; | Condition: | New; |
Element Typical: | Cylinder or Conical one; | Place of Origin: | Zhejiang China (Mainland); |
After-sales Service Provided: | No overseas service provided; | Payment Terms: | L/C,T/T; |
Certification: | Non; | Medium Material: | CS or Stainless Steel; |
Voltage: | 380V; | Flow: | from 50 to 2200 m3/h; |
Warranty: | 1 Year; | Micron Rating: | from 200 to 3000um; |
Diameter of housing: | 300-2000cm; | Port: | Ningbo or Shanghai port; |
Power(W): | 0.15-0.37KW; | Supply Ability: | 20 Set/Sets per Month; |
element material: | SS 304 or SS 316; |
20000m3/h Automatic backwashing Filters ,Automatic Self cleaning filter /strainer for filtering high-volume, high-speed, low-viscosity fluid particles. EFT automatic filter for the mechanical and electrical integration products, with reasonable design, high filtration efficiency, low operation cost, the process can still continuous backwash filter, etc., are widely used in metallurgy, chemical industry,electric power, oil field injection water, environmental protection, water, etc.
Automatic backwashing Filters ,Automatic Self cleaning filters/strainers/ Automatic Bernoulli Filter/ Autmatic Backwashing Cleaning Filter
features:
1).Filtration equipment uses proprietary technologies to the internal mechanical structure, to achieve a true sense of the high-pressure backwash function, can be easily and thoroughly remove impurities interception filter, cleaning without dead ends, the flux without attenuation, to protect the filtration efficiency and long service life.
2).Filtration equipment used 304,316 L stainless steel wedge-shaped filters, high strength, high precision, corrosion resistance, high filtration precision of up to 25 microns
3).Filtration equipment through its own search and response functions, automatic backwashing can respond to unstable fluctuations in water quality, without manual intervention
4).Filter device less wearing parts, no consumables, operation and maintenance, low cost, simple operation and management.
5).Filtration equipment control system responsive, running accuracy, according to different sources of water and filter backwash pressure accuracy and flexibility to adjust the time and time settings.
6).Filtration equipment backwash process, the individual (group) filter followed by an anti-flushing operation; to ensure the filters safe, efficient cleaning, while other filters are not affected and continue to filter.
7).Sewage filtration equipment using pneumatic valve, backwash duration is short, less backwash water, environmental protection and economic
8).Filtration equipment compact and reasonable structure design, small footprint, flexible and convenient installation of mobile
9).Filtration equipment electrical system uses the integrated control mode, remote control can be achieved.
Applicant:
Steel Works
Power Generator Plant
Water Treatment
Chemical Treatment
Petro Treatment
Model | Pressure (bar) | Inlet/Outlet | Backwash Line (PN16) | Weight (Kg) | Volume (l) | Filter Element | Filter Specification | Filter Area (cm2) | Consumptions of liquid Backwashing (L) | Flow(200μM) (m3/h) |
EFT300 | 10 | DN100 | DN50 | 120 | 62 | 8 | φ57*650 | 8164 | 27 | 70 |
EFT 400 | 10 | DN150 | DN80 | 200 | 112 | 12 | φ57*650 | 12246 | 39 | 150 |
EFT 500 | 10 | DN200 | DN80 | 350 | 174 | 22 | φ57*650 | 22451 | 60 | 250 |
EFT 600 | 10 | DN250 | DN80 | 480 | 254 | 30 | φ57*650 | 30615 | 80 | 440 |
EFT 700 | 10 | DN300 | DN100 | 630 | 397 | 30 | φ70*650 | 39800 | 125 | 600 |
EFT 800 | 6 | DN350 | DN100 | 780 | 535 | 38 | φ70*650 | 50413 | 141 | 800 |
EFT 1000 | 6 | DN400 | DN100 | 1000 | 895 | 52 | φ85*800 | 104500 | 259 | 1200 |
EFT 1200 | 6 | DN500 | DN100 | 1200 | 1442 | 76 | φ85*800 | 152730 | 306 | 1800 |
EFT 1400 | 6 | DN600 | DN100 | 1500 | 1964 | 100 | φ85*800 | 200960 | 353 | 2500 |

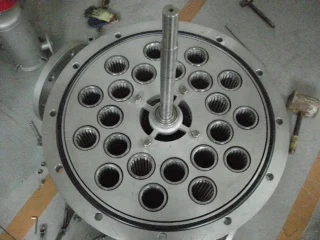

Automatic Self cleaning filter /strainer
Automatic Self cleaning filter /strainer
Automatic Self cleaning filter /strainer
Automatic Self cleaning filter /strainer

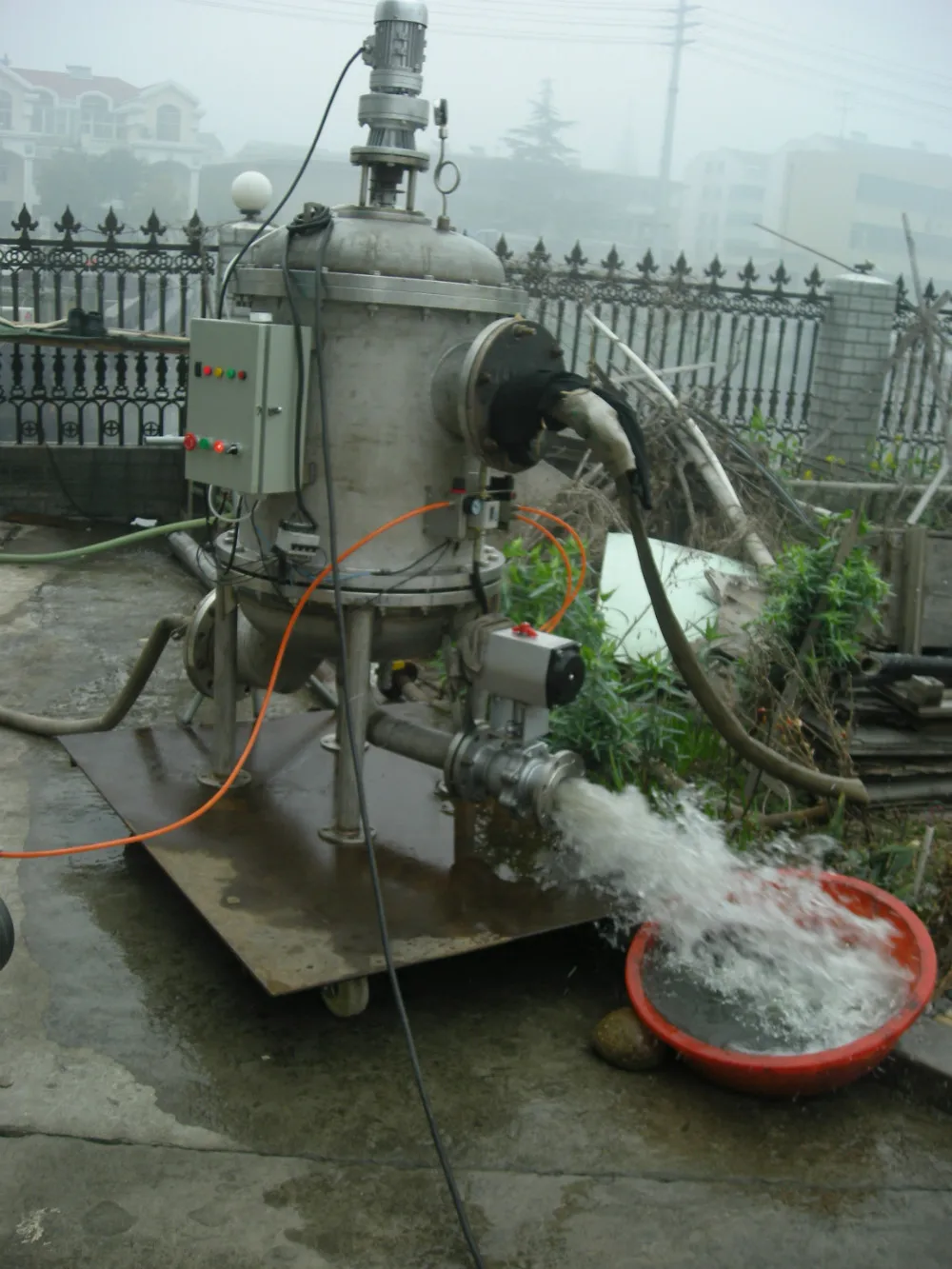

Automatic backwashing Filters
Automatic backwashing Filters
