Brightsail air classifier mill ACM grinder ultra fine powder grinder

Supplier: Jiangyin Brightsail Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Ms Jewel Qian
Price: $16200.00 /set
Min. Order: 1 set

Click here to contact

Product details

Type:	Pulverizer;	Payment Terms:	L/C,T/T,Western Union,MoneyGram;
Condition:	New;	Range of Spindle Speed(r.p.m):	3100 - 6500 r.p.m;
Product Type:	powder maker;	Product name:	Brightsail air classifier mill ACM grinder ultra fine powder grinder;
Port:	SHANGHAI;	Key Selling Points:	Automatic;
Output (kg/h):	50 - 1500 kg/h;	Brand Name:	Brightsail;
Weight (KG):	3500 KG;	Certification:	CE ISO;
Packaging Detail:	Brightsail air classifier mill ACM grinder ultra fine powder grinder wooden case or container;	Quality:	CE&ISO;
Material:	SUS304;	Output Size (mesh):	40 - 2500 mesh;
Supply Ability:	20 Set/Sets per Month;	Output size:	60-2500 mesh;
Dimension(LWH):	customized;	Warranty:	1 Year;
Applicable Industries:	Manufacturing Plant,Food & Beverage Factory,Farms;	After-sales Service Provided:	Engineers available to service machinery overseas,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support,Online support;
Model:	BSP;	Capacity:	100~1000kg/h;
Place of Origin:	China;	Application:	food industry,Medicine Processing,Chemicals Processing,Plastics Processing,Food Processing;
MOQ:	1 Set;	Usage:	powder making machine;
Voltage:	220~480V;

Brightsail air classifier mill ACM grinder ultra fine powder grinder

Product Description

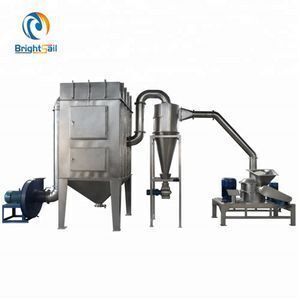

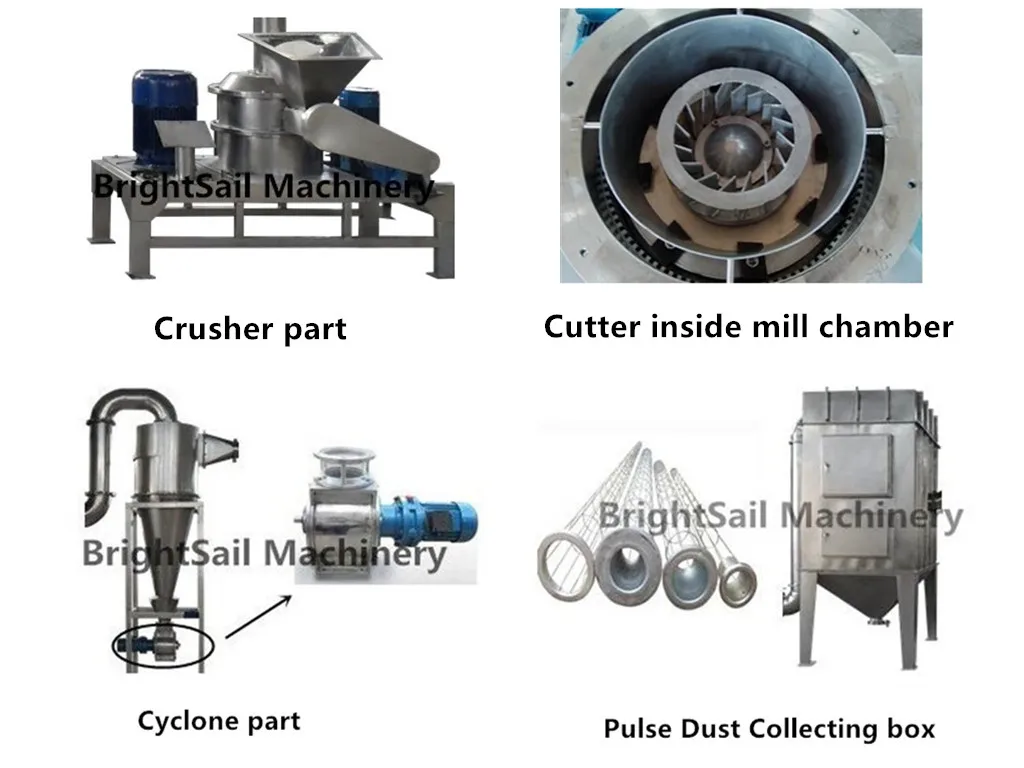

This is our BSP Air Classifier Mill, consisted of the crusher part, cyclone, dust collecting box, blower and electrical cabinet. It can be used to grind sugar, turmeric, ginger, rice into very fine powder, the output size can be 100~2500 mesh.

Advantages: make very fine powder, no need sieve or mesh, make powder evenly and continuous powder making process.

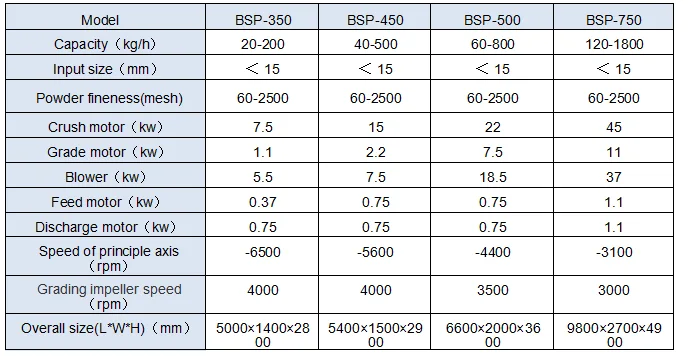

Models and Technical Data:

Working principle:

The raw material is delivered to the mill chamber via hopper, then is cut and sheared by the high speed cutters, finally by the force of blower, powder is sent to cyclone part to discharge and the over fine dust is sent to the dust collecting box.
