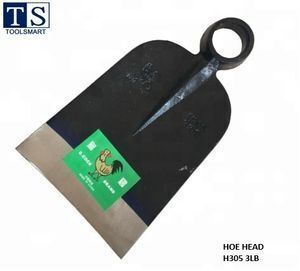

STEEL FORGED HOE H305 3LB

Supplier: Tianjin Toolsmart Co., Ltd.
Region: Tianjin, China
Contact: Mr Chuck Dong
Price: $0.50 / >=1200 pieces
Min. Order: 1200 pieces

Click here to contact

Product details

Fitting handle:	Socket;	Model Number:	H305 3LB;
Handle Material:	Steel;	Hardness:	Hardened and tempered;
Brand Name:	HOE;	Supply Ability:	300000 Piece/Pieces per Month;
Port:	Tianjin Xingang Port;	Application:	digging hoe,farming digging hoe;
Color:	Black, or deep blue;	Markets:	Mainly for Bangladesh;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Head Material:	Rail Steel;

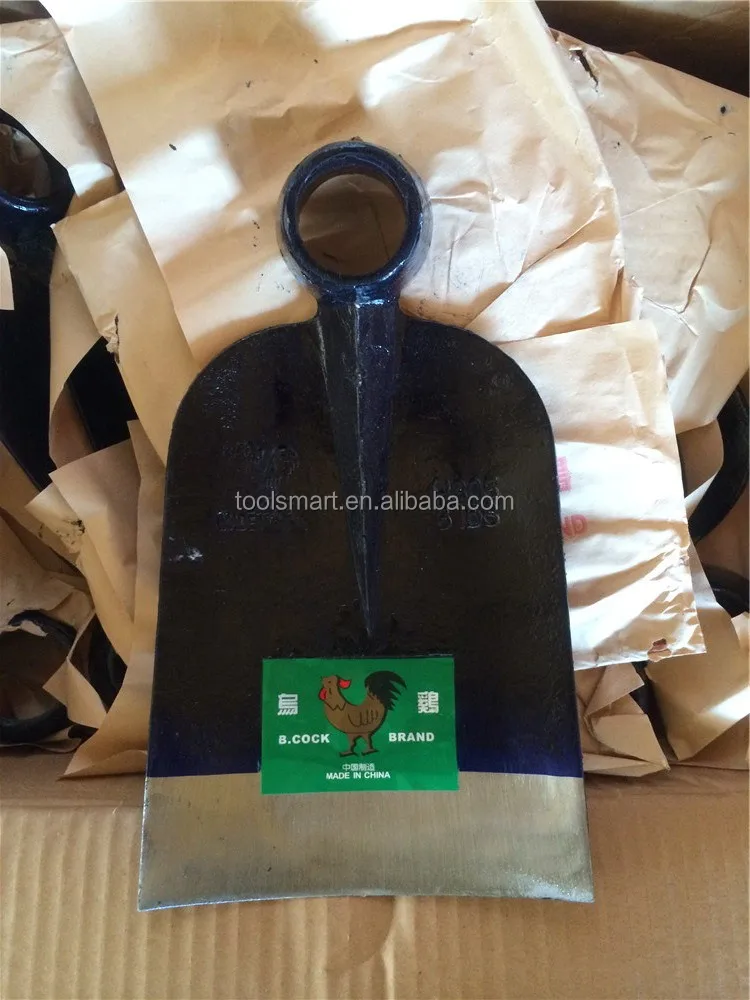

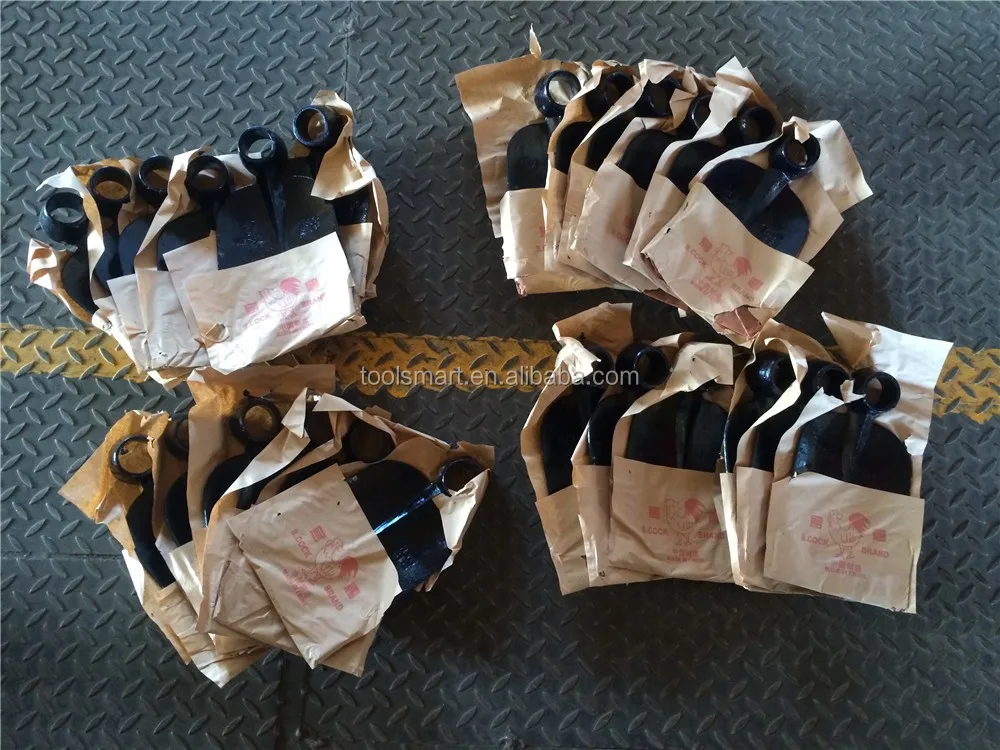

Packaging Detail:	each piece packed in brown paper bag 24pcs packed into carton;	Shape:	Round eye, reinforce rib;
Material:	railway steel/65Mn steel,railway steel, or 65 manganese steel;	Shape:	Shovel-shaped;
Painting:	Varnished edge, black paint;	Place of Origin:	Hebei China;

Specifications

1.material:railway steel or 65Mn steel
2.hardened and tempered
3.weight: 2lbs

Name of Commodity: handmade farming digging hoe

Key Words:hoe, digging hoe, handmade farming hoe

The hoes are made of good quality railway steel. New heat treatment technology brings stalbe and proper hardness. Lacquer-coating, polishing, anti-rusting and strictly inspecting make our products in very good quality.

Technical Specification: Type, Weight and Dimensional

Overall length of the head (mm):	280-310
Length edge, excluding eye (mm):	230-250
Blade width (mm):	170-180
Blade thickness (mm):	2.5-3.0
Central reinforcement of the blade starting from the eye up to mid of the blade	Yes
Width of the link between the eye and the blade (mm):	Min 15
Blade weight (kg):	1.3-1.4
Diameter of the eye (mm):	40-47
Length of the eye (mm):	40-45
Thickness of material around the eye to range from a minumum of 8 mm at widest point to a minimum of 5 mm at narrowest.	Yes
Blade: the steel for agricultural hoes shall be a medium to high carbon steel within the specified ranges given	Yes

Technical Specification Sheet

Carbon:	0.40-0.80%
Manganese:	0.50-1.20%
Silicon:	0.37% Max
Phosphorous:	0.06% Max
Sulfur:	0.06% Max

Technical Specifications: Heat Treatment and Hardness

After the forging has been normalized, the lower part of the blade adjacent to the cutting edge shall be hardened and tempered to give the following conditions:

Area immediately adjacent to eye:	Rockwell C 25/30
Hardness within 50 mm of the cutting edge:	Rockwell C 40/46
This hardened zone shal lnot extend more than half way towards the tang or eye and shall graduall y decrease to the normalized zone around the eye.	Yes

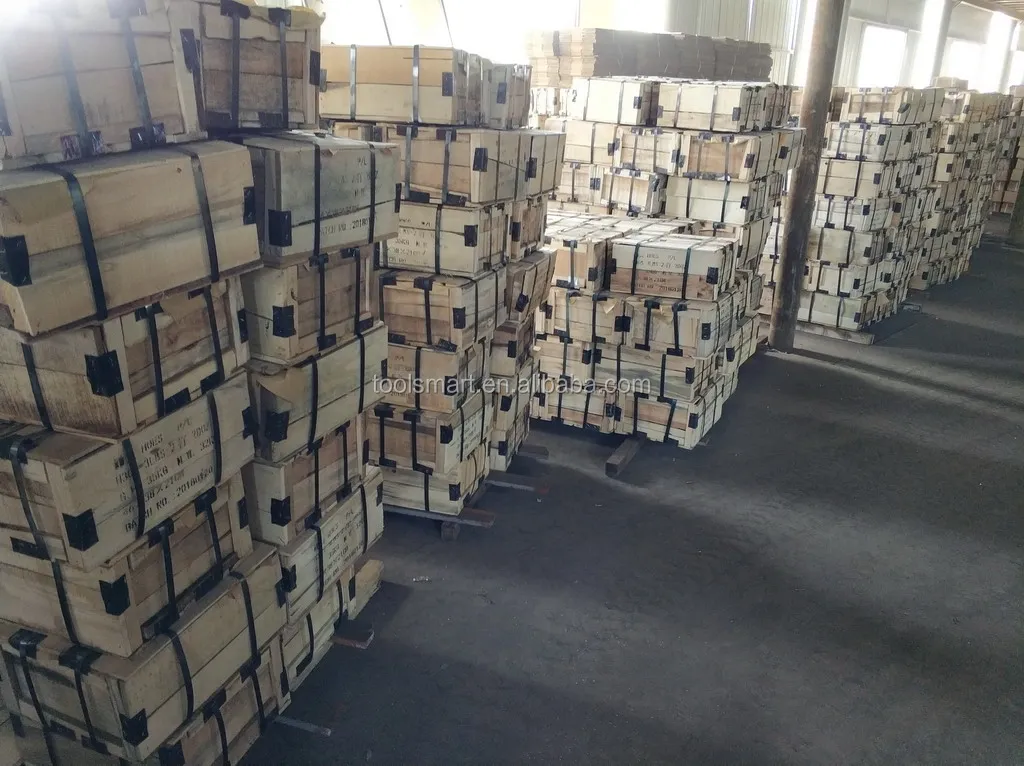

Packaging & Shipping

The heads to be varnished or painted all over, also be greased or individually wrapped in a rust inhibiting covering.

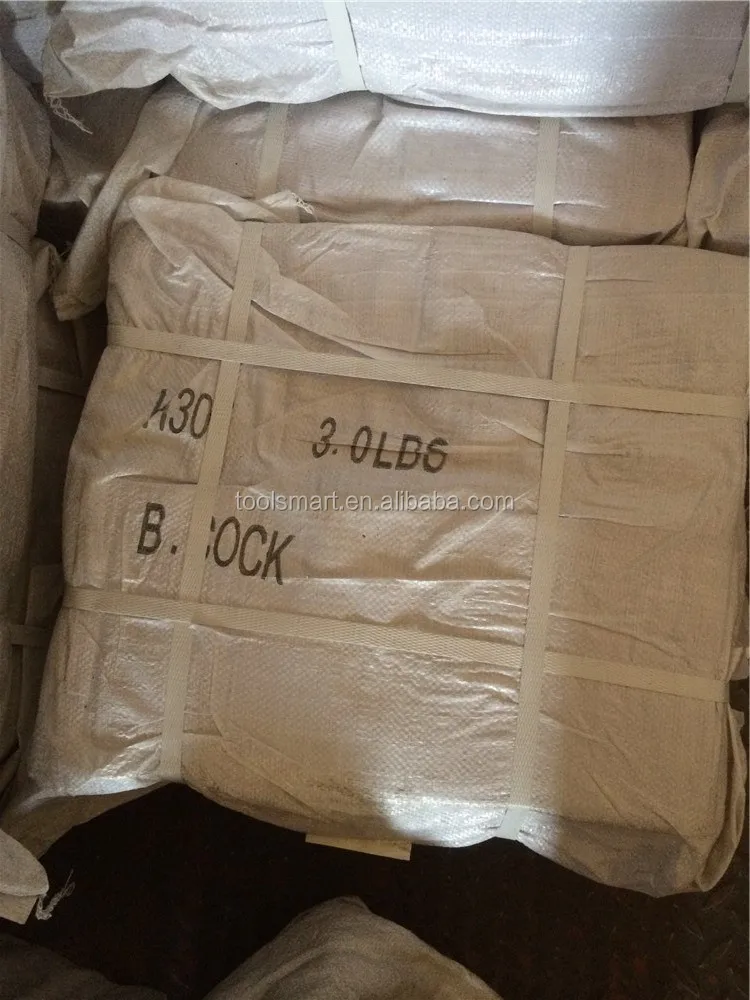

Carton packing:

carton outisde covered by plastic woven bag, in order to protect carton in a good condition.
