Coaxial Centering dial Indicator Co-Ax Precision Milling Machine Test Dial indicator

Supplier: Qingdao Z&Y Tool Supply Co., Ltd.
Region: Shandong, China
Contact: Mr li xianghong
Price: $44.93 /set
Min. Order: 1 set

Click here to contact

Product details

Graduation:	0.0005";	Selling Units:	Single item;
Single gross weight:	2.0 KG;	Measuring Range:	250 AXIA offset;
Type:	COAXIAL;	Feeler ball:	1/8" Dia.;
Packing:	Wooden case;	Brand Name:	ZY;
Shank:	3/8" x 7/8";	Delivery:	20 days;
Packaging Detail:	Inside with wooden case Outside with carton box;	Product name:	COAXIAL Centering Test Dial Indicator Inch and metric size;
Acceccsories:	8 pcs;	Model Number:	COAXIAL;
Place of Origin:	Shandong China;	Single package size:	24X14X10 cm;
Length:	6-7/8";	Package Preview:	;

Product Description

COAXIAL Centering Test Dial Indicator Inch and metric size

1. All points and feelers included free precision measuring indicator.
2.Designed for centering a work piece of fixture.
3.Operates at any angle.
4.Use vertical or horizontal.
5.Uses internal or external. While spindle rotates, the centering indicator always faces the operator.

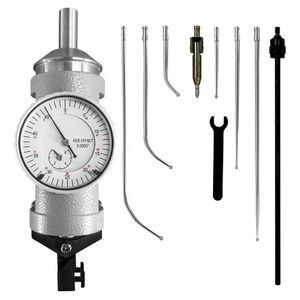

All feelers included: Free restraining rod
Center point feeler
4"straight feeler, 8?straight feeler, 12"straight feeler
4"curved feeler, 8?curved feeler, 12"curved feeler
Model No. 607-4904 supplied complete includes:
restraining rod center point feeler, 4"straight feeler,
8"straight feeler, 12"straight feeler, 4"curved feeler,
8"curved feeler, 12"curved feeler.

Wooden Case packing

Inch size

Specifications	Model No:607-4904
Length	6-7/8“
Shank	3/8" dia. x 7/8"long
Feeler ball	1/8" dia.
Measuring range	250 axis offset
Capacity	Internal:5/32" to 4-1/4" dia. External:0-4-1/4" dia.
Speed	It is recommended that operation speecd not exceed 800 RPM approximately
Locating accuracy	To within 0.0002" or true center

Gradution	0.0005"
