Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory Rotational Viscometer

Product details
Measuring range:10~100,000mpa.s;Packaging Detail:Export Standard Carton Box For NDJ-5S Digital Rotational Viscometer;
Selling Units:Single item;Sample size required for each:250 - 400ml;
Power supply:110V / 60Hz,220V / 50Hz;Dimension:300 x 300 x 450(mm);
Model Number:NDJ-5S;Place of Origin:Guangdong China;
Viscosity display accuracy:0.01mPa.S;Product name:Laboratory Digital Rotational Viscometer;
Display:Digital Display;Speed (r/min):6 / 12 / 30 / 60;
Measurement error:±3% (Newtonian liquid);Rotor:1#,2#,3#,4#;
Power:Electronic;Single gross weight:9.5 KG;
Single package size:45X35X37 cm;
Product Description

Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer

Introduction:

The Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer not only has modern aesthetic elements in appearance, but also is easy to operate, accurate in measurement and complete in function.


Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer such as liquid crystal backlight display, program setting, automatic control, timing measurement, automatic scanning, level pre-position and error alarm. The screen directly displays information such as viscosity, temperature, time of measurement, speed, rotor number, percent torque, and maximum viscosity that can be measured for the selected range. The linearity of each bar of the viscometer is automatically corrected by the computer according to the nominal value of the standard sample, ensuring that the instrument is highly sensitive, highly accurate, and highly repeatable. The measured data is accurate, reliable and repeatable.

 The Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer can measure the absolute viscosity of Newtonian liquids or the apparent viscosity of non-Newtonian liquids, widely used to determine the viscosity of various fluids such as grease, paint, plastics, food, pharmaceuticals, cosmetics, adhesives, paper chemicals, etc.. The rheological properties of non-Newtonian liquids can be analyzed using viscometer data processing software.


Detailed technical parameters of Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer:

Instrument model

NDJ-5S

NDJ-8S

display mode

liquid-crystal display

speed (r/min)

6 / 12 / 30 / 60

0.1/0.3/0.6/

1.5/3/6/12/30/60

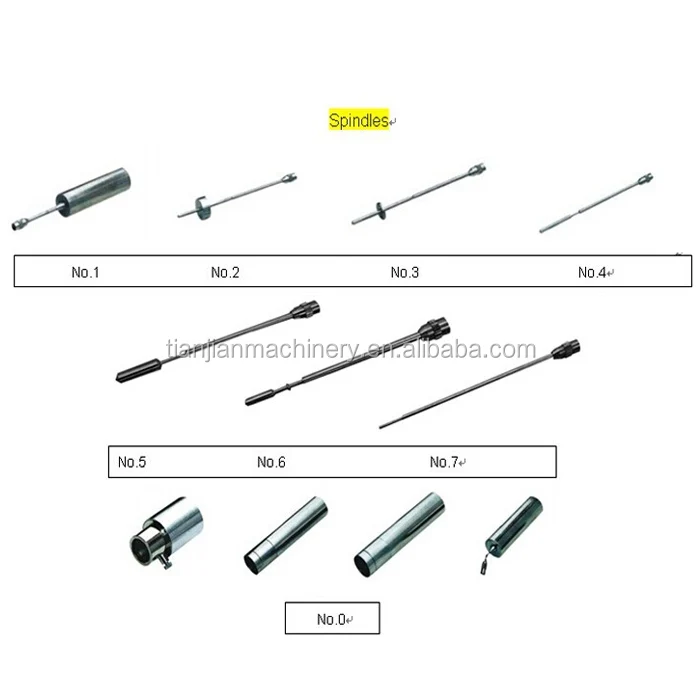

rotor

1#,2#,3#,4#

The 0# rotor is optional, for measuring ultra low viscosity below 15

measuring range

10~100,000

10~2,000,000

Sample size required for each measurement

250 – 400ml

Viscosity display accuracy

0.01mPa.S

measurement error

±3% (Newtonian liquid)

repetitive error

±1.5% (Newtonian liquid)

sample amount

18ml (Each measurement required)

Timing measurement function

standard configuration

temperature measurement

standard configuration

Measurement range display

Can automatically display the maximum viscosity of composite rotor and speed of the selected measurement value

Constant temperature component

Option (special viscometer constant temperature bath, constant temperature cup, temperature probe, etc.)

data output interface

standard configuration

Data processing software

option

working power supply

110V / 60Hz,220V / 50Hz

outline dimension

300 × 300 × 450(mm)

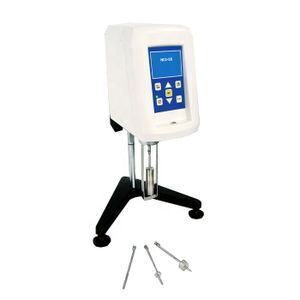

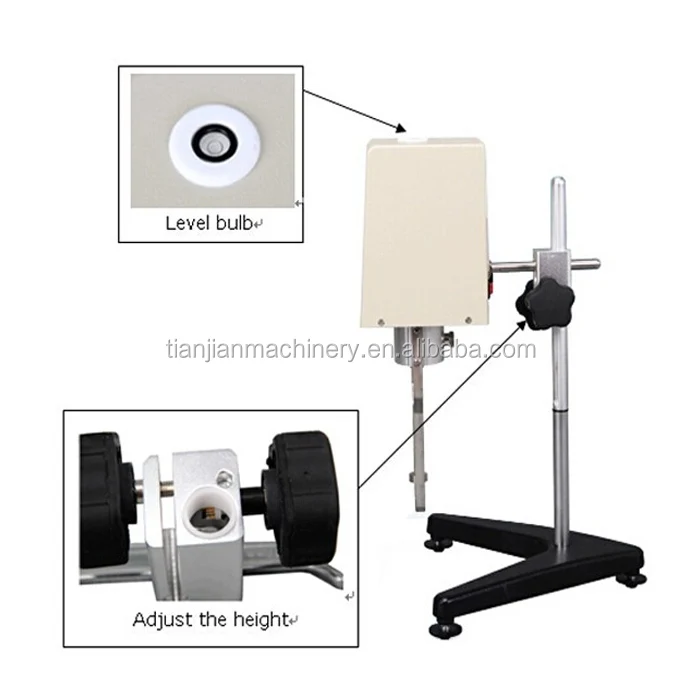

Below photo of Cheap NDJ-5S Digital Viscometer Manufacturer, Brookfield Viscometer Price, Laboratory  Rotational Viscometer for reference.




Packaging & Shipping

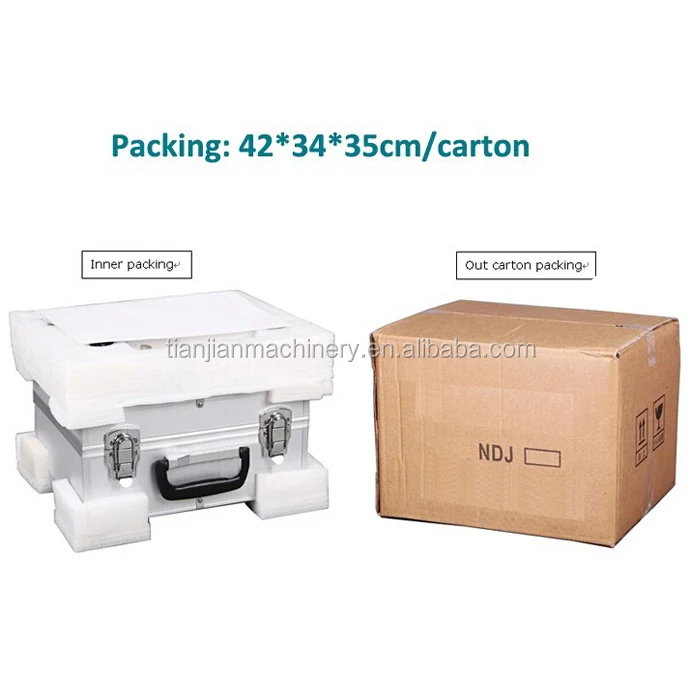

  Each set protected with aluminum case, then put into carton box with English operation manual.



Our Services

 All machine quality guarantee for one year and lift-time technical support for customer. On line response to customers technical problems.and life-time technical support for customer.

FAQ



Customer: What about the transportation?

Answer: It depends on your requirement. We can delivery by air to your airport, or by sea to your seaport, and we can also delivery to your office address by express courier, and we also accept to co-operate with your ship agent or forwarder.



Customer: What about the after-sale service?

Answer: Guarantee period is 12 months, after the warranty, we also provide life-long paid repair or service. Response within 24 hours for any problems. Overseas training, installation is available.



Customer: What about the delivery date?

Answer: Usually we offer 5-10workdays after order confirmed and payment received, and we can also accept urgent order for prompt shipment.

Company Information

 Dongguan Tianjian Machinery Equipment Co., Ltd. has been specializing in developing, producing, selling all kinds of testing machines for many years.  Our products are widely used in paper products, packaging, ink printing, adhesive tapes, plastic products, rubber products, leather products, environment, hardware, electronic products, fabric textile products and other industries.



Our commission is to be your lab consultant, provide one-stop service and solutions for laboratory equipment. Our company look forward to cooperating with you and strives to provide perfect service for you!

VIEW MORE
